HDSD05C

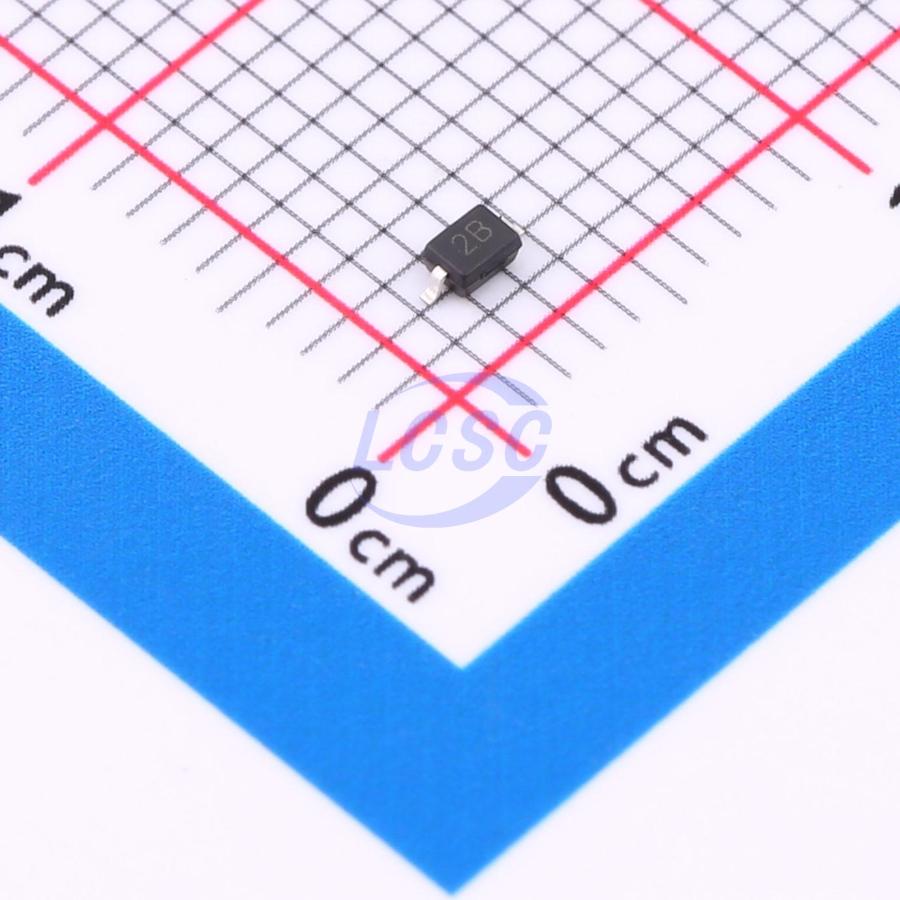

22VC Clamp 20A Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 22VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HDSD05C
- Store part #
- C25503805
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C25503805
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.78 | ₹57.80 |
| 100+ | ₹4.56 | ₹456.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.78
₹57.80
excl. GST
₹68.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HDSD05C
₹57.80 for 10 + GST
Specifications
- Clamping Voltage
- 22V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 20A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 6.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.019 g
Overview
HDSD05C protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. The device offers designers flexibility to protect a single bidirectional line in applications where arrays are not suitable. Package: SOD-323.
Key features
- Compact package footprint
- Low package height
- Peak power up to 350W under 8×20μs pulse
- Low leakage current
- Typical response time less than 1ns
- IEC61000-4-2 Level 4 ESD protection
- IEC61000-4-4 Level 4 EFT protection
