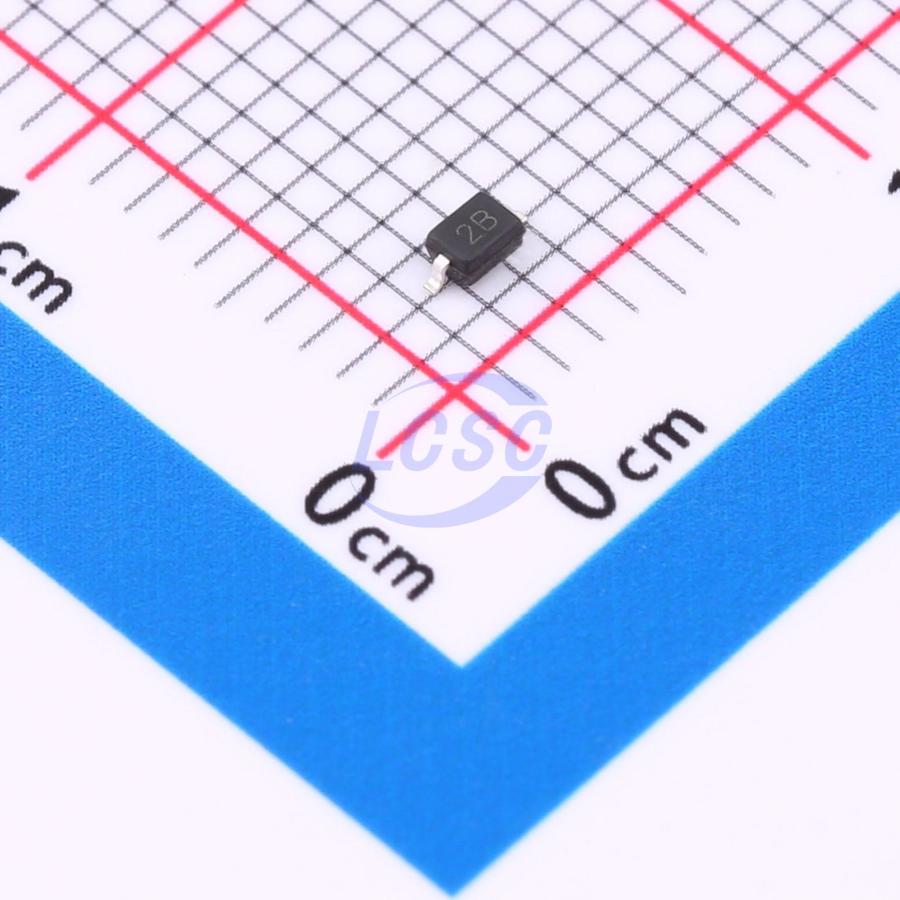

HPSD05C-LF-T7
22VC Clamp 20A Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 22VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HPSD05C-LF-T7
- Store part #
- C25503808
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C25503808
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.36 | ₹63.60 |
| 100+ | ₹5.13 | ₹513.00 |
| 300+ | ₹4.51 | ₹1,353.00 |
| 3,000+ | ₹4.05 | ₹12,150.00 |
| 6,000+ | ₹3.68 | ₹22,080.00 |
| 9,000+ | ₹3.48 | ₹31,320.00 |
10 × ₹6.36
₹63.60
excl. GST
₹75.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HPSD05C-LF-T7
₹63.60 for 10 + GST
Specifications
- Clamping Voltage
- 22V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 20A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 6.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.019 g
Overview
HPSD05C-LF-T7 protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time deliver industry-leading protection for designs exposed to ESD environments. It provides designers with the flexibility to protect a single bidirectional line in applications where arrays are not suitable. Package: SOD-323.
Key features
- Compact form factor
- Low body height
- Peak power up to 350 W under 8×20 μs pulse conditions
- Low leakage current
- Typical response time less than 1 ns
- Compliant with IEC61000-4-2 Level 4 ESD protection
- Compliant with IEC61000-4-4 Level 4 EFT protection
