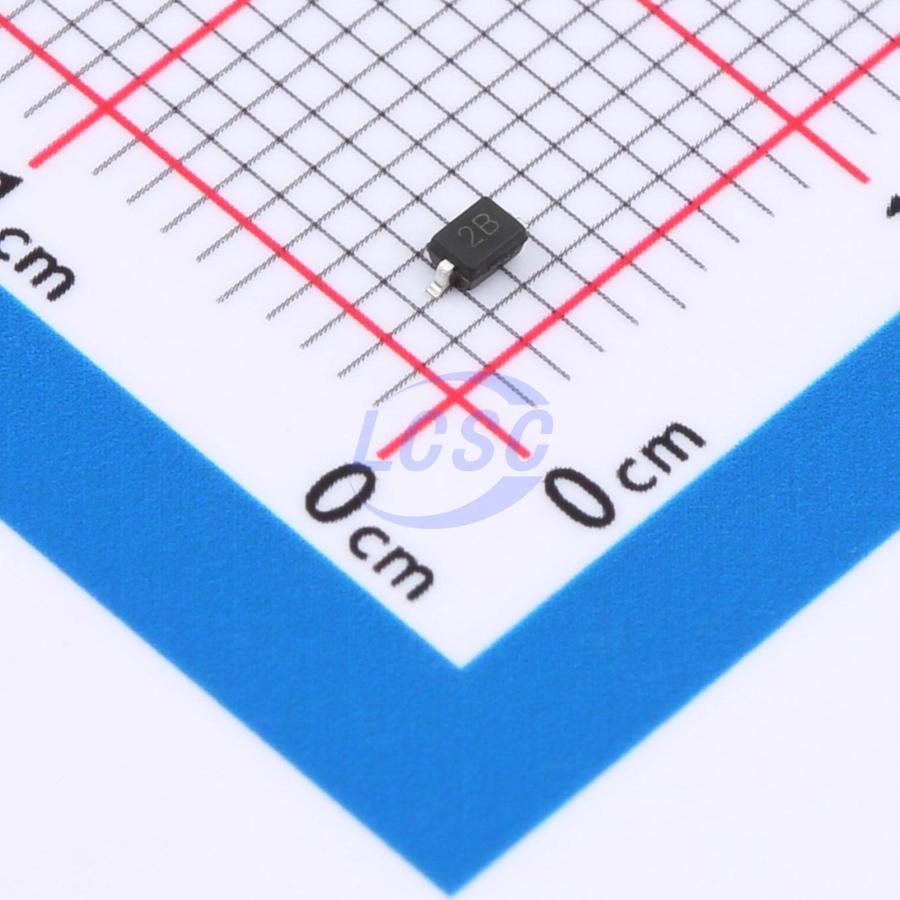

HPJSD05CW_R1
22VC Clamp 20A Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 22VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HPJSD05CW_R1
- Store part #
- C25503327
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C25503327
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹6.40 | ₹640.00 |
| 300+ | ₹5.64 | ₹1,692.00 |
| 3,000+ | ₹5.05 | ₹15,150.00 |
| 6,000+ | ₹4.59 | ₹27,540.00 |
| 9,000+ | ₹4.35 | ₹39,150.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HPJSD05CW_R1
₹79.50 for 10 + GST
Specifications
- Clamping Voltage
- 22V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 20A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 6.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
HPJSD05CW_R1 protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD risks. The device offers designers the flexibility to protect a single bidirectional line in applications where arrays are not suitable. Available in SOD-323 package.
Key features
- Small package outline
- Low profile body
- Peak power up to 350W under 8×20μs pulse
- Low leakage current
- Typical response time less than 1ns
- Compliant with IEC61000-4-2 Level 4 ESD protection
- Compliant with IEC61000-4-4 Level 4 EFT protection
