lingxingic

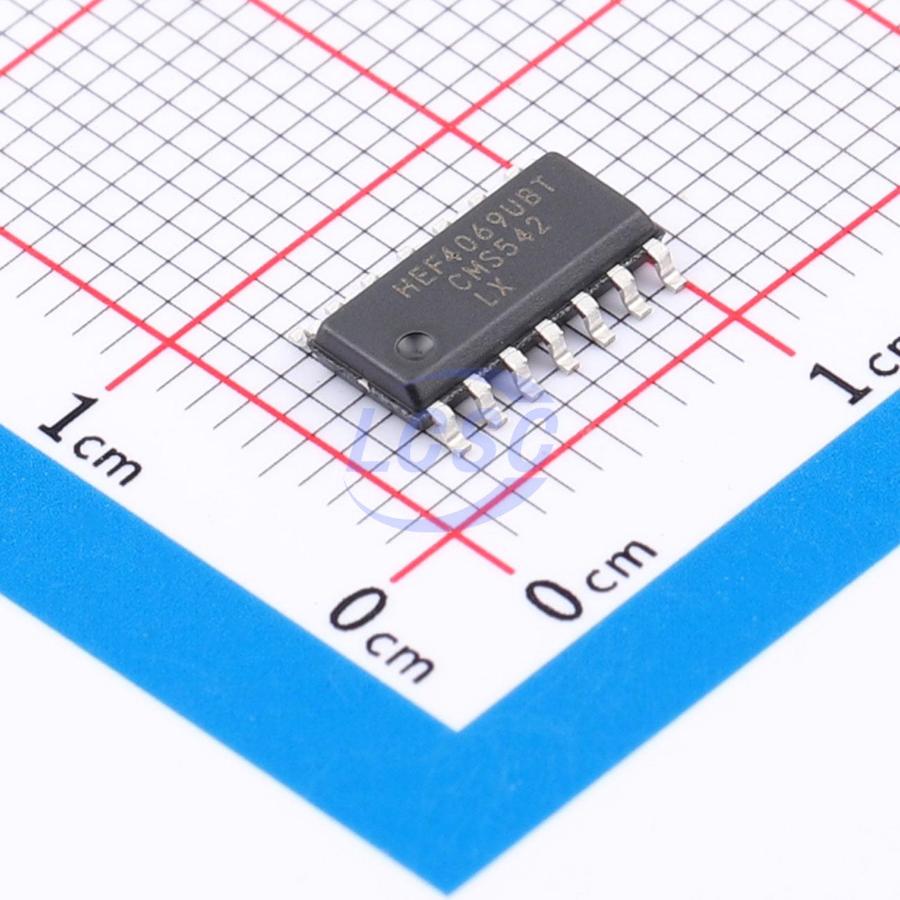

HEF4069UBT(LX)

3V~15V 30uA 6 SOP-14 Gates and Inverters

SOP-14RoHSActive

Manufacturer: lingxingic
Manufacturer part #: HEF4069UBT(LX)
Store part #: C52261125
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,850 in stock

#C52261125

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.62	₹96.20
100+	₹7.65	₹765.00
300+	₹6.67	₹2,001.00
1,000+	₹5.93	₹5,930.00
4,000+	₹5.34	₹21,360.00
8,000+	₹5.04	₹40,320.00

Quantity (min 10, multiples of 10)

10 × ₹9.62

₹96.20

excl. GST

₹113.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

HEF4069UBT(LX)

₹96.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3V~15V
Output Logic Level - Low: 50mV
Propagation Delay: 55ns@5V,50pF;30ns@10V,50pF;25ns@15V,50pF
Input Logic Level - Low: 1V;2V;2.5V
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 4V;8V;12.5V
Output Logic Level - High: 4.95V;9.95V;14.95V
Quiescent Current(Iq): 30uA
Number of Channels: 6
Current - Output High(IOH): 2.4mA
Current - Output Low(IOL): 2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.264 g

Overview

HEF4069 is an IC containing six independent unbuffered inverters. During normal operation, the VDD pin is connected to the power supply and the VSS pin is typically connected to ground. The supply voltage VDD range is 3V ~ 15V. Unused inputs must be connected to VDD, GND, or other inputs.
