NexperiaDatasheet (PDF)

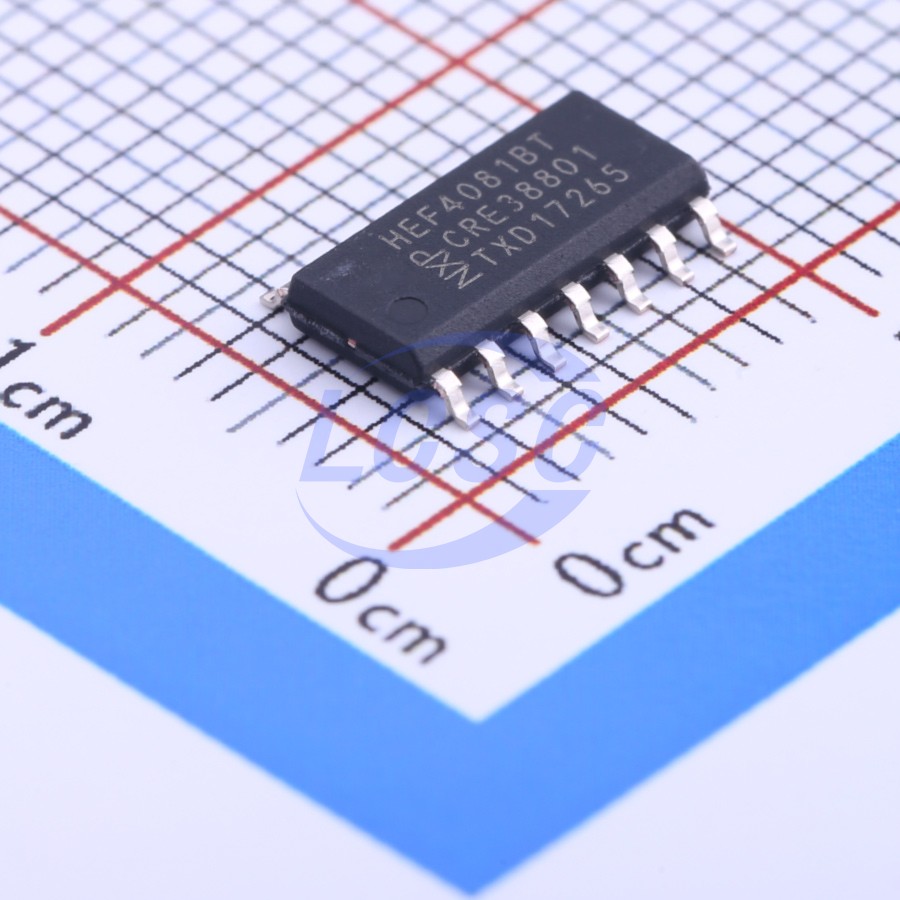

HEF4081BT,653
1uA 3V~15V 40ns@15V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4081BT,653
- Store part #
- C148318
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,095 in stock
#C148318
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.47 | ₹217.35 |
| 50+ | ₹34.40 | ₹1,720.00 |
| 150+ | ₹30.52 | ₹4,578.00 |
| 500+ | ₹25.67 | ₹12,835.00 |
| 2,500+ | ₹23.51 | ₹58,775.00 |
| 5,000+ | ₹22.21 | ₹1,11,050.00 |
5 × ₹43.47
₹217.35
excl. GST
₹256.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4081BT,653
₹217.35 for 5 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 1.5V~4V
- Logic Family
- 4000B Series
- Output Logic Level - High
- 14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 40ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The HEF4081B is a quad 2-input AND gate. The outputs are fully buffered for highest noise immunity and pattern insensitivity to output impedance variations. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Inputs and outputs are protected against electrostatic effects
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
- Complies with JEDEC standard JESD 13-B
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HEF4081BT-Q100J#C551480Nexperia · SO-14 | Nexperia | SO-14 | 71 | ₹98.95 · 71 in stock | View |
 | CD4081SA14.TR#C51940043Wuxi I-core Elec · SOP-14 | Wuxi I-core Elec | SOP-14 | 260 | ₹20.77 · 260 in stock | View |
 | CD4081BM#C353985TI · SOIC-14 | TI | SOIC-14 | 626 | ₹55.71 · 626 in stock | View |
 | CD4081BM96#C40551TI · SOIC-14 | TI | SOIC-14 | 38,780 | ₹39.70 · 38,780 in stock | View |
 | CD4081BDRG#C5145433HANSCHIP semiconductor · SOP-14 | HANSCHIP semiconductor | SOP-14 | 515 | ₹21.23 · 515 in stock | View |
