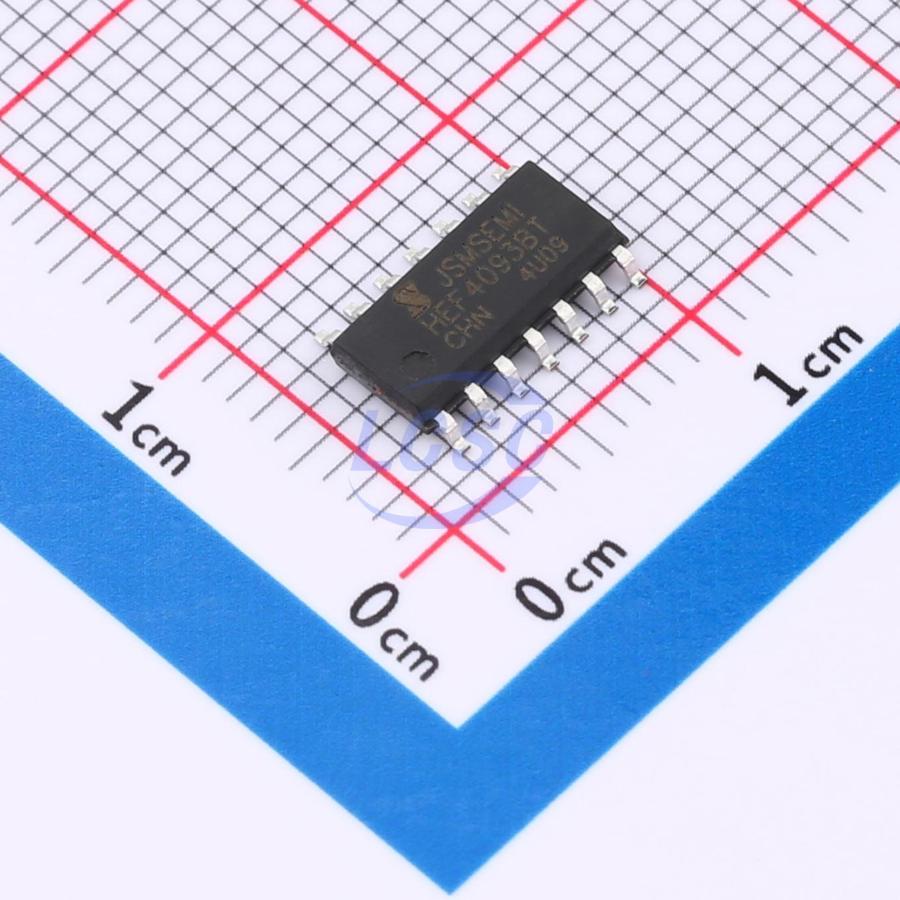

HEF4093BT-JSM
NAND Gate IC SOP-14
SOP-14ROHS CompliantActive
IC GATE NAND SOP-14
- Manufacturer
- JSMSEMI
- Manufacturer part #
- HEF4093BT-JSM
- Store part #
- C22470415
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,470 in stock
#C22470415
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.25 | ₹71.25 |
| 50+ | ₹11.13 | ₹556.50 |
| 150+ | ₹9.55 | ₹1,432.50 |
| 500+ | ₹8.39 | ₹4,195.00 |
| 2,500+ | ₹7.98 | ₹19,950.00 |
| 5,000+ | ₹7.51 | ₹37,550.00 |
5 × ₹14.25
₹71.25
excl. GST
₹84.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4093BT-JSM
₹71.25 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 130ns@5V,51pF;70ns@10V,51pF;60ns@15V,51pF
- Operating Temperature
- 0℃~+60℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1.2uA
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 13.7mA
- Current - Output Low(IOL)
- 32.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
Applications
- Electronic switching
- Industrial control applications
- Signal oscillator/generator
- Other application areas
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4093BM#C5456626JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 19,795 | ₹15.76 · 19,795 in stock | View |
 | HEF4011BT,653-JSM#C53114084JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 3,645 | ₹17.57 · 3,645 in stock | View |
