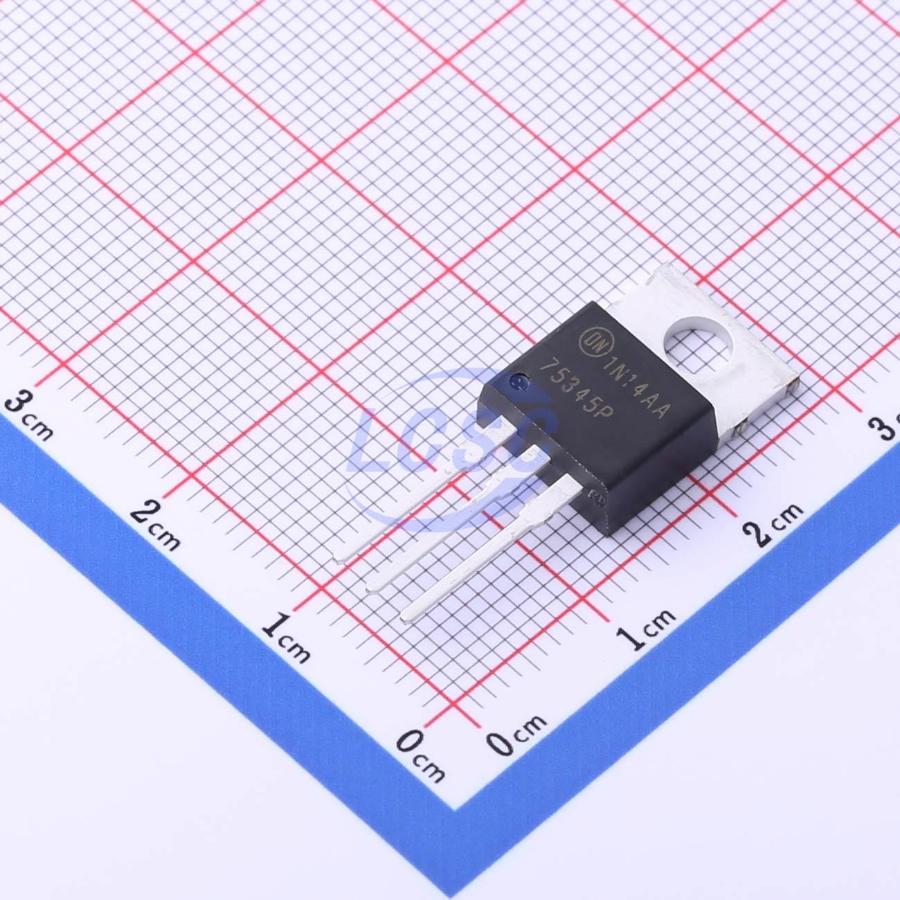

HUF75345P3
N-Channel 55V 75A 325W Through Hole TO-220-3
TO-220-3ROHS3 CompliantActive
MOSFET N-CH 55V 75A TO-220-3
- Manufacturer
- onsemi
- Manufacturer part #
- HUF75345P3
- Store part #
- C898687
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C898687
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹338.29 | ₹338.29 |
| 10+ | ₹289.09 | ₹2,890.90 |
| 50+ | ₹258.40 | ₹12,920.00 |
| 100+ | ₹226.84 | ₹22,684.00 |
| 500+ | ₹212.69 | ₹1,06,345.00 |
| 800+ | ₹206.37 | ₹1,65,096.00 |
1 × ₹338.29
₹338.29
excl. GST
₹399.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HUF75345P3
₹338.29 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.45nF
- Ciss-Input Capacitance
- 4nF
- Pd - Power Dissipation
- 325W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 275nC@20V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
These N−Channel power MOSFETs are manufactured using the innovative UltraFET process. This advanced process technology achieves the lowest possible on−resistance per silicon area, resulting in outstanding performance. This device is capable of withstanding high energy in the avalanche mode and the diode exhibits very low reverse recovery time and stored charge. It was designed for use in applications where power efficiency is important, such as switching regulators, switching converters, motor drivers, relay drivers, low−voltage bus switches, and power management in portable and battery−operated products.
Applications
- Switching regulators
- Switching converters
- Motor drivers
- Relay drivers
- Low-voltage bus switches
- Power management for portable and battery-powered products
Key features
- 75 A, 55 V
- Simulation Models − Temperature Compensated PSPICE and SABER Models − Thermal Impedance SPICE and SABER Models
- Peak Current vs Pulse Width Curve
- UIS Rating Curve
- These Devices are Pb−Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF3808PBF#C2618Infineon · TO-220AB | Infineon | TO-220AB | 186 | ₹271.06 · 186 in stock | View |
 | IRF1405PBF#C2559Infineon · TO-220AB | Infineon | TO-220AB | 3,136 | ₹154.01 · 3,136 in stock | View |
 | IRFB3207PBF#C2578Infineon · TO-220AB | Infineon | TO-220AB | 442 | ₹191.13 · 442 in stock | View |
 | STP140NF75#C457466ST · TO-220 | ST | TO-220 | 295 | ₹218.04 · 295 in stock | View |
 | HUF75645P3#C512967onsemi · TO-220AB | onsemi | TO-220AB | 200 | ₹443.80 · 200 in stock | View |
