InfineonDatasheet (PDF)

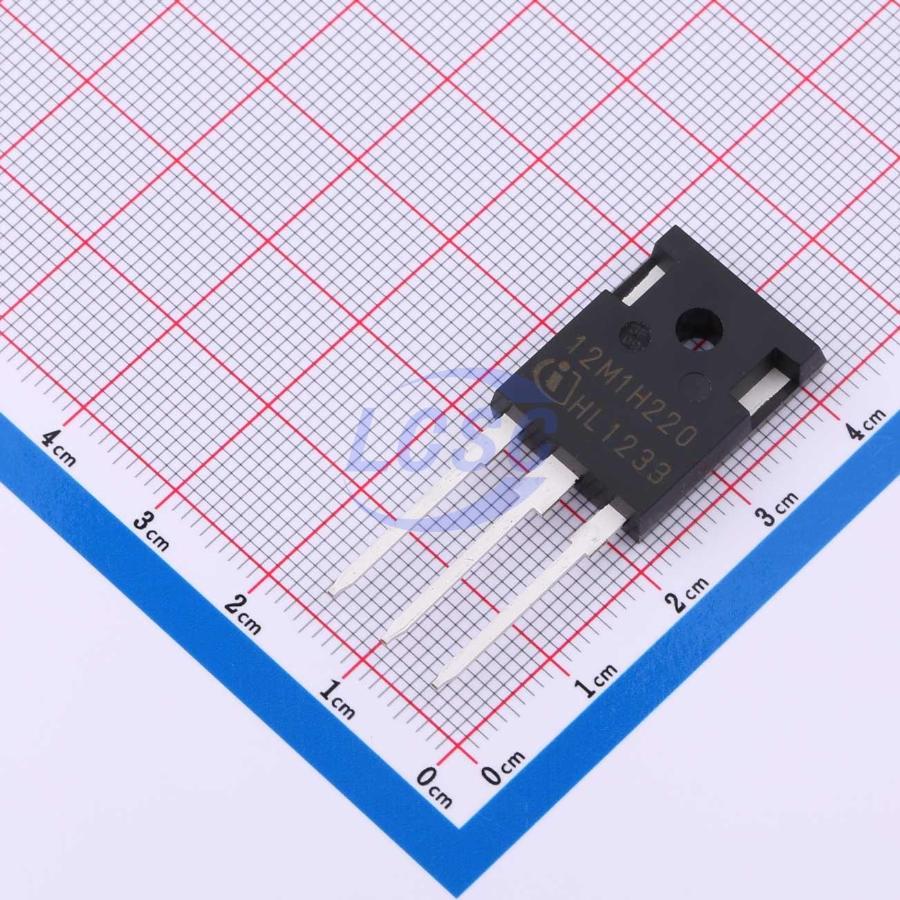

IMW120R220M1HXKSA1
N-Channel 1.2kV 13A 75W Through Hole TO-247-3
TO-247-3ROHS3 CompliantActive
1200V SiC Trench MOSFET
- Manufacturer
- Infineon
- Manufacturer part #
- IMW120R220M1HXKSA1
- Store part #
- C2997930
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C2997930
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹816.01 | ₹816.01 |
| 10+ | ₹702.12 | ₹7,021.20 |
| 30+ | ₹632.86 | ₹18,985.80 |
| 100+ | ₹574.71 | ₹57,471.00 |
1 × ₹816.01
₹816.01
excl. GST
₹962.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IMW120R220M1HXKSA1
₹816.01 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Output Capacitance(Coss)
- 16pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 289pF
- Pd - Power Dissipation
- 75W
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 220mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.5nC
- Gate Threshold Voltage (Vgs(th))
- 5.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.1 g
Overview
Applications
- Energy generation
- Solar string inverter and solar optimizer
- Industrial power supplies
- Industrial UPS
- Industrial SMPS
- Infrastructure – Charge
- Charger
Key features
- Very low switching losses
- Threshold-free on state characteristic
- Wide gate-source voltage range
- Benchmark gate threshold voltage, VGS(th)=4.5V
- 0V turn-off gate voltage for easy and simple gate drive
- Fully controllable dV/dt
- Robust body diode for hard commutation
- Temperature independent turn-off switching losses
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SCT3160KLGC11#C191060ROHM · TO-247AC-3 | ROHM | TO-247AC-3 | 16 | ₹746.22 · 16 in stock | View |
| UJ3C120080K3S#C44870514onsemi · TO-247-3 | onsemi | TO-247-3 | 10 | ₹2,536.56 · 10 in stock | View | |
 | UJ3C120080K3S#C6731596Qorvo · TO-247-3 | Qorvo | TO-247-3 | 15 | ₹3,149.61 · 15 in stock | View |
 | IMW120R090M1HXKSA1#C2997935Infineon · TO-247-3 | Infineon | TO-247-3 | 53 | ₹1,359.87 · 53 in stock | View |
 | IMW120R060M1H#C536281Infineon · TO-247-3 | Infineon | TO-247-3 | 168 | ₹957.64 · 168 in stock | View |
