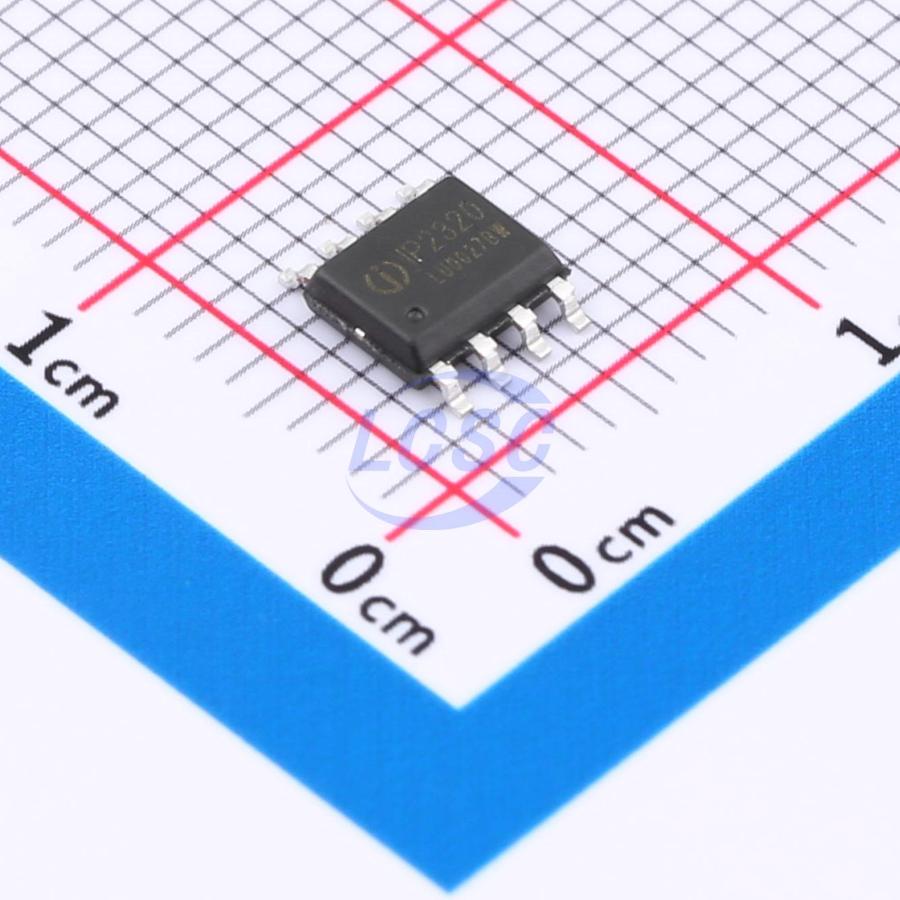

IP2320
Battery Charging IC Lithium Battery ESOP-8
5V Input Dual-cell Series-connected Lithium Battery Step-up Charging IC
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP2320
- Store part #
- C19191089
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,420 in stock
#C19191089
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.90 | ₹189.50 |
| 50+ | ₹29.67 | ₹1,483.50 |
| 150+ | ₹26.16 | ₹3,924.00 |
| 500+ | ₹21.76 | ₹10,880.00 |
| 2,500+ | ₹19.81 | ₹49,525.00 |
| 4,000+ | ₹18.63 | ₹74,520.00 |
5 × ₹37.90
₹189.50
excl. GST
₹223.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IP2320
₹189.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Quiescent Current
- 1uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.113 g
Overview
IP2320 is a boost charging management IC supporting dual-cell series-connected lithium battery/Li-ion battery. The device integrates power MOS and adopts a synchronous switching architecture, requiring minimal external components in application while effectively reducing overall solution size and lowering BOM cost. Its boost switching charge converter operates at 400KHz; conversion efficiency reaches 92% under 5V input and 8V/1A output conditions. The IC features input undervoltage protection, intelligently adjusting charge current to adaptively match adapter load capability, preventing adapter overload. It supports charge current setting via LED pin resistor with 4 selectable constant-current charge levels. It also supports external resistor adjustment of charge voltage with continuous voltage adjustment capability. The device integrates NTC protection functionality, enabling charge NTC protection in conjunction with a 10K NTC resistor. IP2320 is available in an ESOP8 package.
Applications
- Dual-cell lithium/lithium-ion battery charging
Key features
- 5V input synchronous switching boost charging
- Boost charging efficiency 92%
- Constant voltage charging voltage externally adjustable via resistor
- Constant current charging current externally adjustable via resistor
- Automatic input current regulation, adaptive adapter load
- Charging NTC thermal protection, supports 10K NTC resistor
- LED charge status indication
- Integrated power MOS
- 400KHz switching frequency, supports 2.2uH inductor
- Output overvoltage protection
- IC over-temperature protection
- Input/output pin voltage rating 20V
- ESD 4KV
