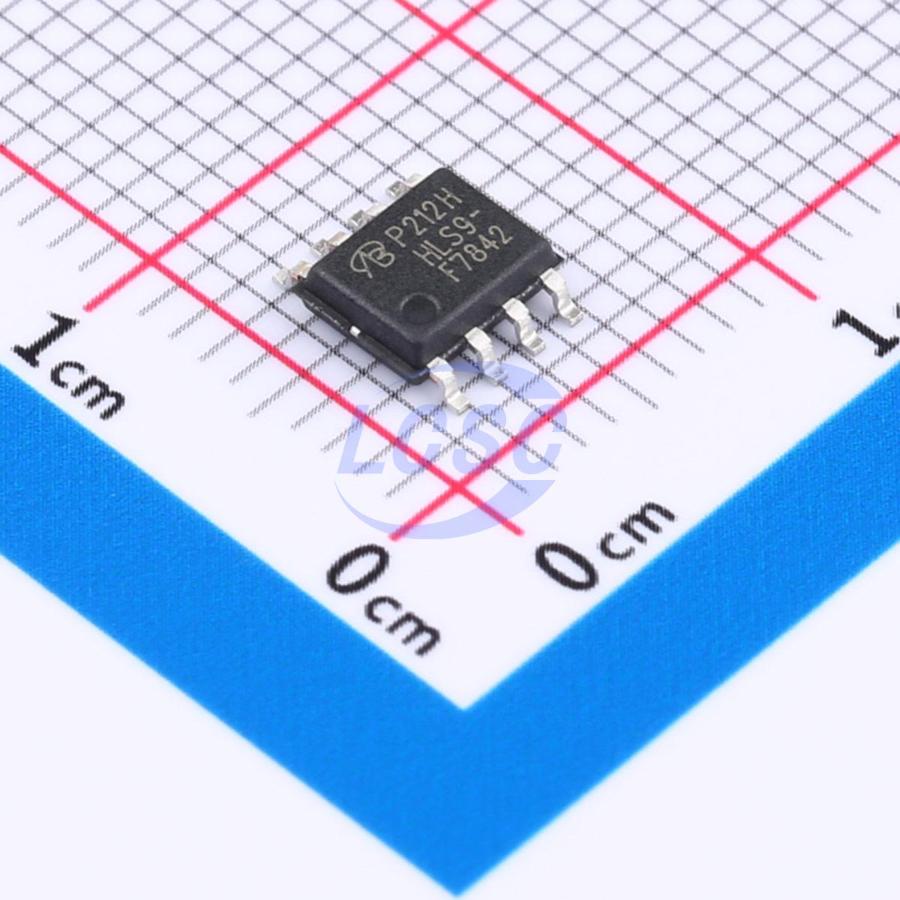

IRF7842TRPBF-VB
N-Channel 40V 18A 5W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 40V 18A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF7842TRPBF-VB
- Store part #
- C5438941
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C5438941
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.75 | ₹79.75 |
| 10+ | ₹63.68 | ₹636.80 |
| 30+ | ₹56.94 | ₹1,708.20 |
| 100+ | ₹48.25 | ₹4,825.00 |
| 500+ | ₹39.56 | ₹19,780.00 |
| 1,000+ | ₹37.39 | ₹37,390.00 |
1 × ₹79.75
₹79.75
excl. GST
₹94.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF7842TRPBF-VB
₹79.75 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 205pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 985pF
- Pd - Power Dissipation
- 5W
- Reverse Transfer Capacitance (Crss)
- 76pF
- RDS(on)
- 3.8mΩ@10V;5.7mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V;8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.286 g
Overview
This MOSFET is designed to meet the stringent demands of automotive applications. It is AEC-Q101 qualified with PPAP support, making it ideal for: motor control, power management functions
Applications
- Laptop CPU core — high-end switching
Key features
- Halogen-free product compliant with IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI4124DY-T1-E3-VB#C19711180VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 9 | ₹72.47 · 9 in stock | View |
 | VBA1420#C967450VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹37.40 · 15 in stock | View |
 | AP9474GM-VB#C693434VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 29 | ₹68.28 · 29 in stock | View |
 | AP9479GM-VB#C22389708VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹58.19 · 15 in stock | View |
 | TSM4436CS RLG-VB#C5355720VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹59.67 · 40 in stock | View |
