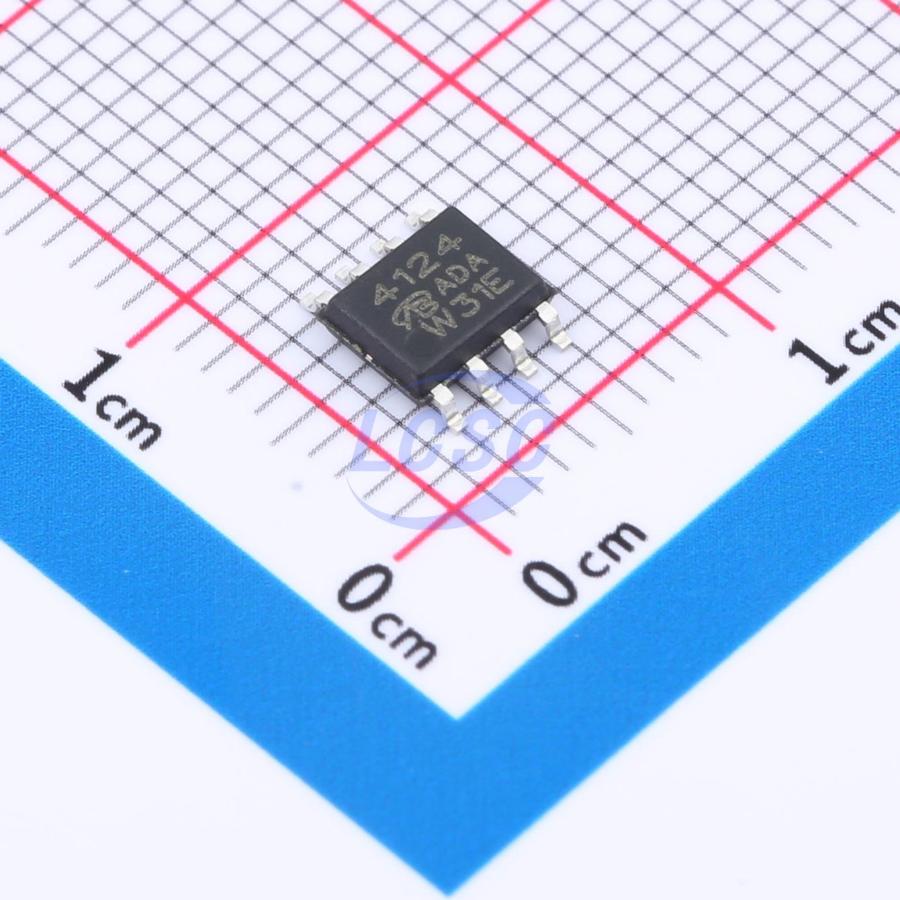

SI4124DY-T1-E3-VB
N-Channel 40V 18A 20W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 40V 18A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI4124DY-T1-E3-VB
- Store part #
- C19711180
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C19711180
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.47 | ₹72.47 |
| 10+ | ₹56.93 | ₹569.30 |
| 30+ | ₹50.42 | ₹1,512.60 |
| 100+ | ₹42.02 | ₹4,202.00 |
| 500+ | ₹38.23 | ₹19,115.00 |
| 1,000+ | ₹36.13 | ₹36,130.00 |
1 × ₹72.47
₹72.47
excl. GST
₹85.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SI4124DY-T1-E3-VB
₹72.47 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 205pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 985pF
- Pd - Power Dissipation
- 20W
- Reverse Transfer Capacitance (Crss)
- 76pF
- RDS(on)
- 5.7mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
GT014N04TL utilizes advanced trench technology to achieve excellent on-resistance RDS(ON) and low gate charge. It is suitable for a wide range of applications.
Applications
- Laptop CPU core - High-end switching
Key features
- Halogen-free product compliant with IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
