TECH PUBLICDatasheet (PDF)

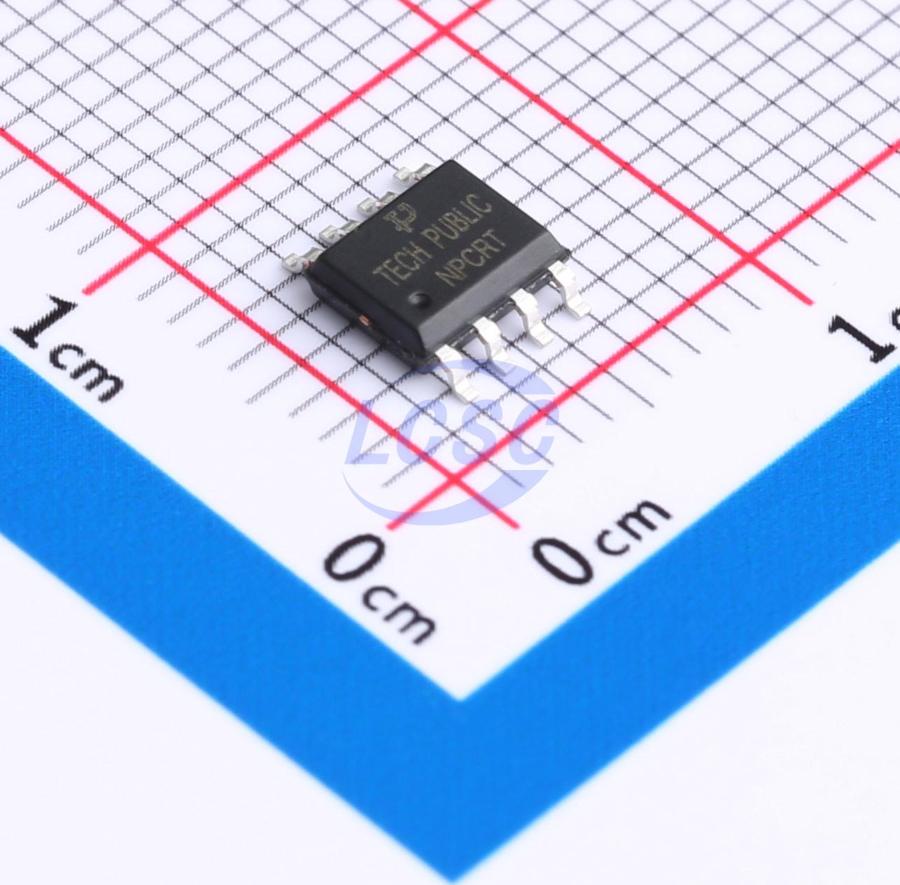

IRF9389TRPBF
N-Channel+P-Channel Array 30V 6A 1.7W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 6A SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRF9389TRPBF
- Store part #
- C5123912
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,580 in stock
#C5123912
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.76 | ₹143.80 |
| 50+ | ₹22.74 | ₹1,137.00 |
| 150+ | ₹20.16 | ₹3,024.00 |
| 500+ | ₹15.82 | ₹7,910.00 |
| 3,000+ | ₹14.39 | ₹43,170.00 |
| 6,000+ | ₹13.53 | ₹81,180.00 |
5 × ₹28.76
₹143.80
excl. GST
₹169.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF9389TRPBF
₹143.80 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 59pF;120pF
- Ciss-Input Capacitance
- 429pF
- Pd - Power Dissipation
- 1.7W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 47pF
- RDS(on)
- 22mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 4.8nC@15V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
Applications
- Battery protection
- Load switch
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7319TRPBF#C5123893TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,285 | ₹28.70 · 3,285 in stock | View |
 | SI4532DY#C5123913TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,105 | ₹19.46 · 3,105 in stock | View |
 | IRF7309TRPBF#C5123894TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 5,670 | ₹21.75 · 5,670 in stock | View |
 | SI4532CDY#C5123895TECH PUBLIC · SOIC-8 | TECH PUBLIC | SOIC-8 | 3,775 | ₹29.91 · 3,775 in stock | View |
 | FDS8958A#C5123898TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,615 | ₹21.86 · 2,615 in stock | View |
