VISHAYDatasheet (PDF)

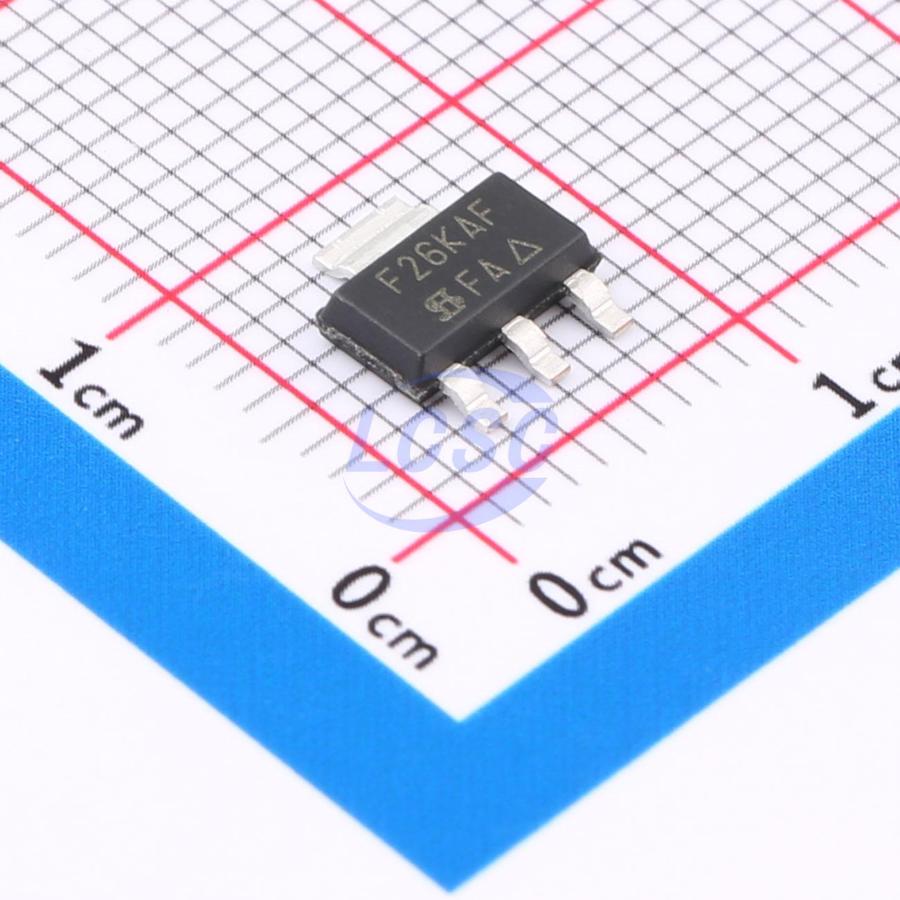

IRFL014TRPBF-BE3
N-Channel 60V 2.7A 3.1W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 60V 2.7A SOT-223
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFL014TRPBF-BE3
- Store part #
- C6969404
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C6969404
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹237.52 | ₹237.52 |
| 10+ | ₹234.08 | ₹2,340.80 |
| 30+ | ₹231.71 | ₹6,951.30 |
| 100+ | ₹229.34 | ₹22,934.00 |
1 × ₹237.52
₹237.52
excl. GST
₹280.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFL014TRPBF-BE3
₹237.52 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 160pF
- Current - Continuous Drain(Id)
- 2.7A
- Ciss-Input Capacitance
- 300pF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 29pF
- RDS(on)
- 200mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.44 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOT-223 package is designed for surface-mounting using vapor phase, infrared, or wave soldering techniques. Its unique package design allows for easy automatic pick-and-place as with other SOT or SOIC packages but has the added advantage of improved thermal performance due to an enlarged tab for heatsinking. Power dissipation of greater than 1.25 W is possible in a typical surface mount application.
Key features
- Surface-mount
- Available in tape and reel
- Dynamic dV/dt rating
- Fast switching
- Ease of paralleling
- Simple drive requirements
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NDT014#C895067onsemi · SOT-223-4 | onsemi | SOT-223-4 | 100 | ₹97.06 · 100 in stock | View |
 | FDT86256-VB#C20755501VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 17 | ₹104.20 · 17 in stock | View |
 | NDT014L#C274610onsemi · SOT-223 | onsemi | SOT-223 | 280 | ₹84.92 · 280 in stock | View |
 | STN3NF06#C283531ST · SOT-223 | ST | SOT-223 | 13 | ₹74.15 · 13 in stock | View |
 | FDT3612#C127977onsemi · SOT-223-3 | onsemi | SOT-223-3 | 56 | ₹80.09 · 56 in stock | View |
