VBsemi ElecDatasheet (PDF)

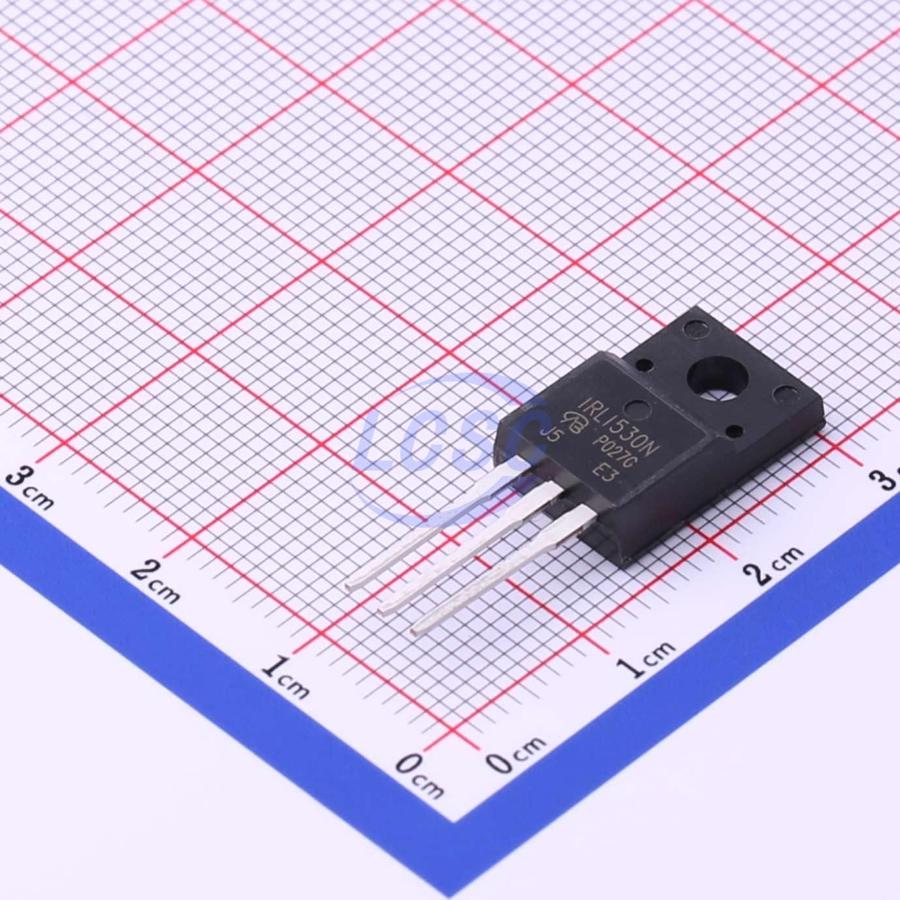

IRLI530NPBF-VB
N-Channel 100V 12A 48W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 100V 12A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLI530NPBF-VB
- Store part #
- C709601
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C709601
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.88 | ₹98.88 |
| 10+ | ₹82.15 | ₹821.50 |
| 50+ | ₹60.42 | ₹3,021.00 |
| 100+ | ₹52.15 | ₹5,215.00 |
| 500+ | ₹47.38 | ₹23,690.00 |
| 1,000+ | ₹44.77 | ₹44,770.00 |
1 × ₹98.88
₹98.88
excl. GST
₹116.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRLI530NPBF-VB
₹98.88 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 560pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 48W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 86mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 72nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.3 g
Overview
OSG65R290xEF utilizes advanced GreenMOST technology to achieve low drain-source on-resistance (RDS(ON)), low gate charge, fast switching, and excellent avalanche characteristics. This device is suitable for active power factor correction and switch-mode power supply applications.
Applications
- Lighting
- Hard-switching PWM
- Server power supplies
- Chargers
Key features
- Isolated Package
- High Voltage Isolation = 2.5 kV_RMS (t = 60 s; f = 60 Hz)
- Sink to Lead Creepage Distance = 4.8 mm
- 175 °C Operating Temperature
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
