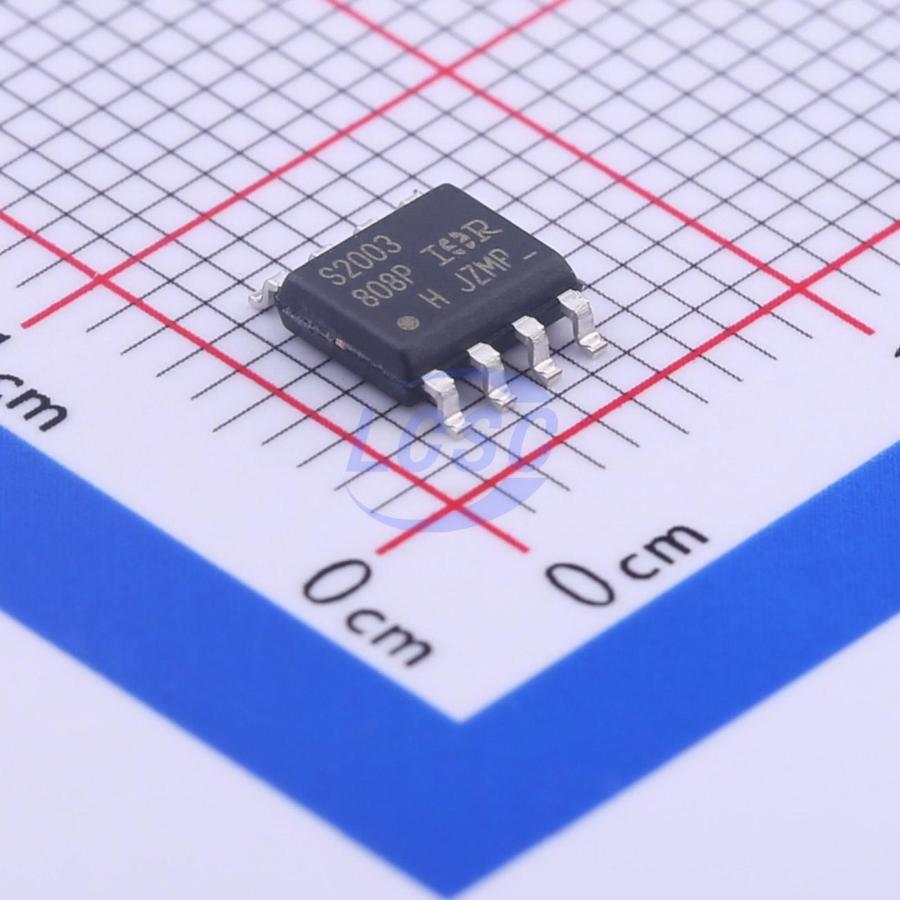

IRS2003STRPBF
10V~20V 600mA 290mA SOP-8 Gate Drivers RoHS
IR Rectifier HALF-BRIDGE DRIVER
- Manufacturer
- Infineon
- Manufacturer part #
- IRS2003STRPBF
- Store part #
- C40009
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,999 in stock
#C40009
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.39 | ₹64.39 |
| 10+ | ₹51.35 | ₹513.50 |
| 30+ | ₹45.68 | ₹1,370.40 |
| 100+ | ₹38.51 | ₹3,851.00 |
| 500+ | ₹30.24 | ₹15,120.00 |
| 1,000+ | ₹28.29 | ₹28,290.00 |
1 × ₹64.39
₹64.39
excl. GST
₹75.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS2003STRPBF
₹64.39 for 1 + GST
Specifications
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.319 g
Overview
The IRS2003 is a high voltage, high speed power MOSFET and IGBT drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver crossconduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 200 V
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +200 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 20 V
- Undervoltage lockout
- 3.3 V, 5 V, and 15 V logic compatible
- Cross-conduction prevention logic
- Matched propagation delay for both channels
- Internal set deadtime
- High-side output in phase with HIN input
- Low-side output out of phase with LIN(overline) input
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRS2103STRPBF#C2958Infineon · SOIC-8 | Infineon | SOIC-8 | 110 | ₹149.64 · 110 in stock | View |
| SL2003#C20539709Slkor · SOP-8 | Slkor | SOP-8 | 2,369 | ₹41.82 · 2,369 in stock | View | |
 | TF2104M-TAH#C2683754TFSS · SOIC-8 | TFSS | SOIC-8 | 2,153 | ₹50.96 · 2,153 in stock | View |
 | IRS2003STR(UMW)#C20623209UMW · SOP-8 | UMW | SOP-8 | 1,405 | ₹29.00 · 1,405 in stock | View |
| LF2101NTR#C3655095Littelfuse/IXYS · SOIC-8 | Littelfuse/IXYS | SOIC-8 | 127 | ₹174.48 · 127 in stock | View | |
