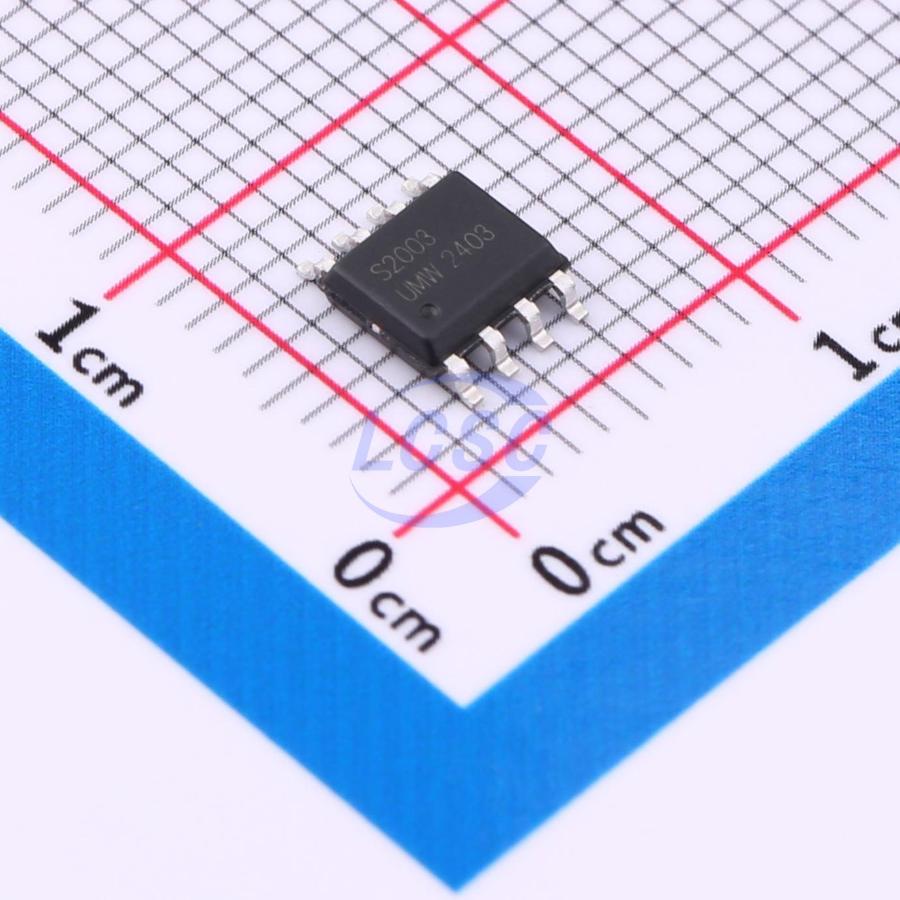

IRS2003STR(UMW)
10V~20V 600mA 290mA SOP-8 Gate Drivers RoHS
250V Half Bridge MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- IRS2003STR(UMW)
- Store part #
- C20623209
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,405 in stock
#C20623209
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.00 | ₹145.00 |
| 50+ | ₹25.34 | ₹1,267.00 |
| 150+ | ₹23.77 | ₹3,565.50 |
| 500+ | ₹21.82 | ₹10,910.00 |
| 2,500+ | ₹20.94 | ₹52,350.00 |
| 5,000+ | ₹20.41 | ₹1,02,050.00 |
5 × ₹29.00
₹145.00
excl. GST
₹171.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS2003STR(UMW)
₹145.00 for 5 + GST
Specifications
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 30ns
- Features
- Interleaved conduction protection;Dead-time control;Built-in bootstrap diode
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.212 g
Overview
The IRS2003S is a high-voltage, high-speed power MOSFET driver with independent high- and low-side referenced output channels. Its proprietary HVIC and latch-up immune CMOS technology enable a robust monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature high pulse current buffer stages designed to minimize cross-conduction in the driver. The floating channel can be used to drive N-channel power MOSFETs in high-side configurations at operating voltages up to 250V.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro/Mini Inverter Driver
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +250V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt noise immunity: ±50 V/nsec
- Allowable negative Vs: -9V
- Gate drive supply range: 10V to 20V
- Integrated bootstrap diode
- Cross-conduction prevention logic — dead time 520ns
- Propagation delay — Ton/Toff = 680ns/150ns
- Wide operating temperature range: -40°C ~ 125°C
- Typical output source/sink current capability: 290mA/600mA
