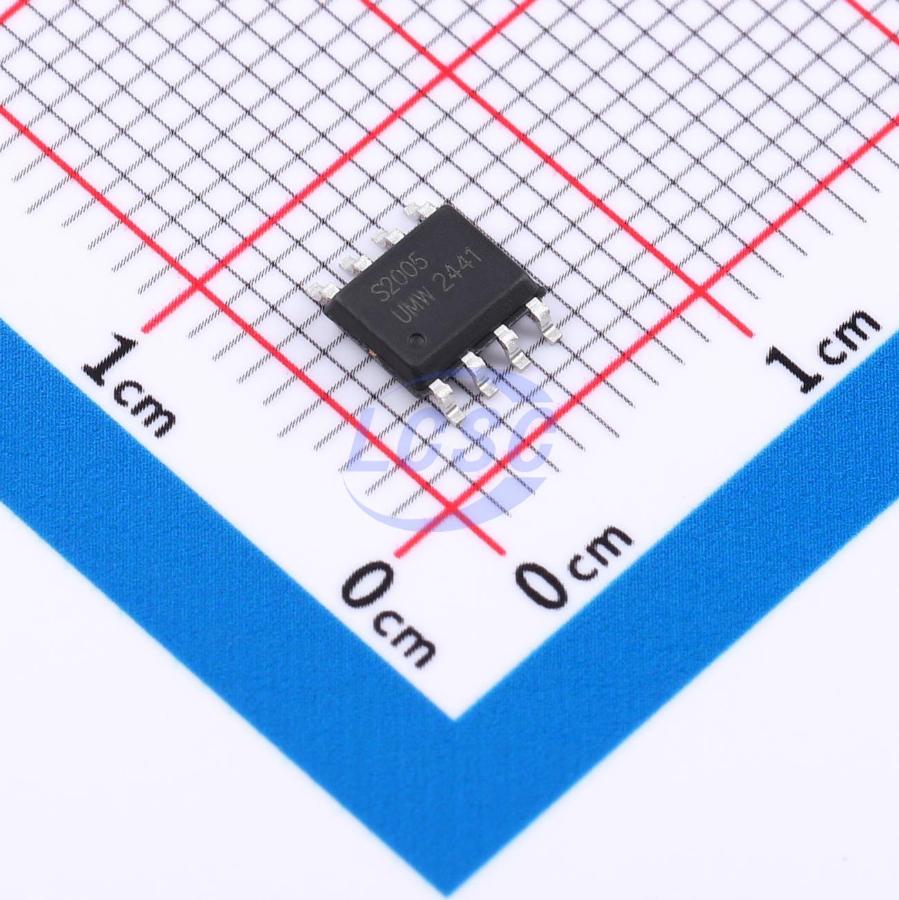

IRS2005STR(UMW)
10V~20V 600mA 290mA SOP-8 Gate Drivers RoHS
250V Half Bridge MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- IRS2005STR(UMW)
- Store part #
- C20623177
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,425 in stock
#C20623177
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.72 | ₹198.60 |
| 50+ | ₹31.21 | ₹1,560.50 |
| 150+ | ₹27.56 | ₹4,134.00 |
| 500+ | ₹23.01 | ₹11,505.00 |
| 2,500+ | ₹20.98 | ₹52,450.00 |
| 5,000+ | ₹19.77 | ₹98,850.00 |
5 × ₹39.72
₹198.60
excl. GST
₹234.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS2005STR(UMW)
₹198.60 for 5 + GST
Specifications
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 30ns
- Features
- Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.213 g
Overview
The UMW IRS2005STR is a high voltage, high speed power MOSFET drivers with dependent highand low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver crossconduction. The floating channel can be used to drive an N-channel power MOSFET in the high-side configuration which operates up to 250 V.
Applications
- Motor Control
- Air Conditioners/ Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +250V
- 3.3V, 5V and 15V input logic compatible
- dV/dt noise Immunity ±50 V/nsec
- Allowable negative Vs capability: -9V
- Gate drive supply range from 10V to 20V
- Undervoltage lockout for both channels --UVLO forward 8.9V --UVLO reverse 8.2V
- Propagation delay --Ton/Toff = 130ns/130ns --Matching delay time 50ns
- Wide operating temperature range -40°C~125°C
- Typically output Source/Sink current capability: 290mA/600mA
