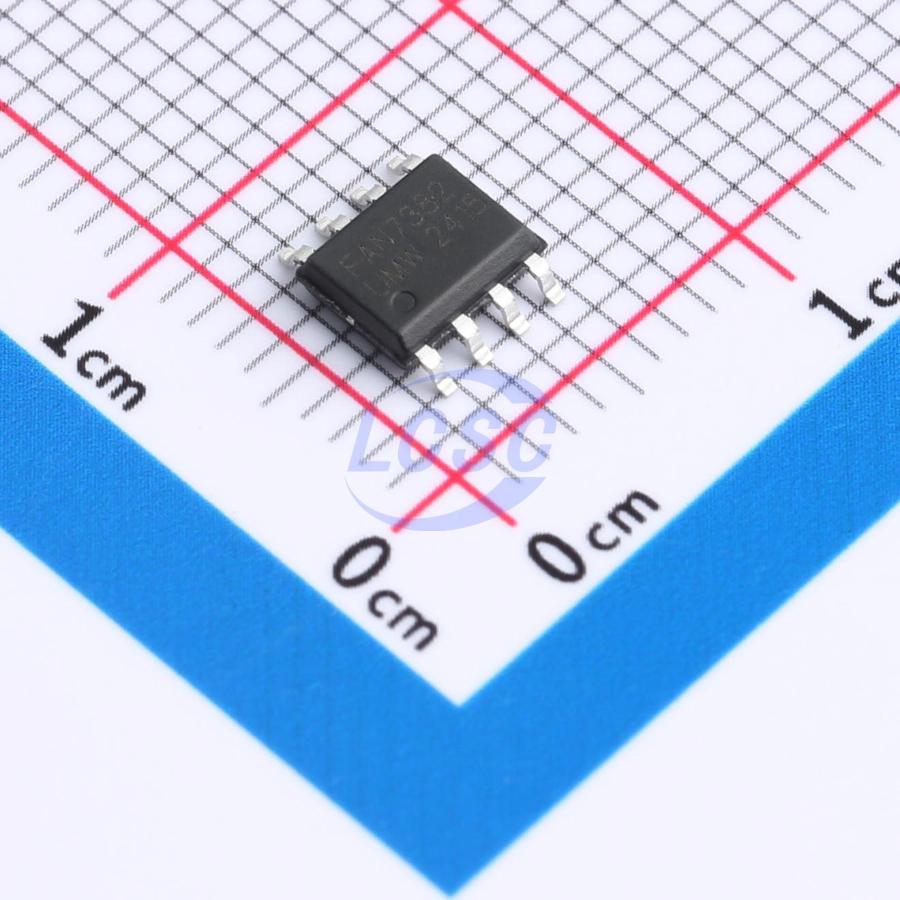

FAN7382MX(UMW)
10V~20V 600mA 300mA SOP-8 Gate Drivers RoHS
700V Half Bridge MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- FAN7382MX(UMW)
- Store part #
- C20623201
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,803 in stock
#C20623201
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.10 | ₹54.10 |
| 10+ | ₹47.15 | ₹471.50 |
| 30+ | ₹44.11 | ₹1,323.30 |
| 100+ | ₹40.19 | ₹4,019.00 |
| 500+ | ₹38.67 | ₹19,335.00 |
| 1,000+ | ₹37.59 | ₹37,590.00 |
1 × ₹54.10
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FAN7382MX(UMW)
₹54.10 for 1 + GST
Specifications
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.209 g
Overview
The UMW UMW FAN7382MX is a high voltage, high speed power MOSFET drivers with dependent high-and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver crossconduction. The floating channel can be used to drive an N-channel power MOSFET in the high-side configuration which operates up to 700 V.
Applications
- Motor Control
- Air Conditioners/ Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +700 V
- 3.3V, 5V and 15V input logic compatible
- Tolerant to negative transient voltage
- dV/dt immune
- Allowable negative Vs capability: -9V
- Gate drive supply range from 10V to 20V
- Matched propagation delay for both channels
- Wide operating temperature range -40°C~125°C
- Typically output Source/Sink current capability: 300mA/600mA
Alternatives
Similar parts — check the datasheet before substituting.
