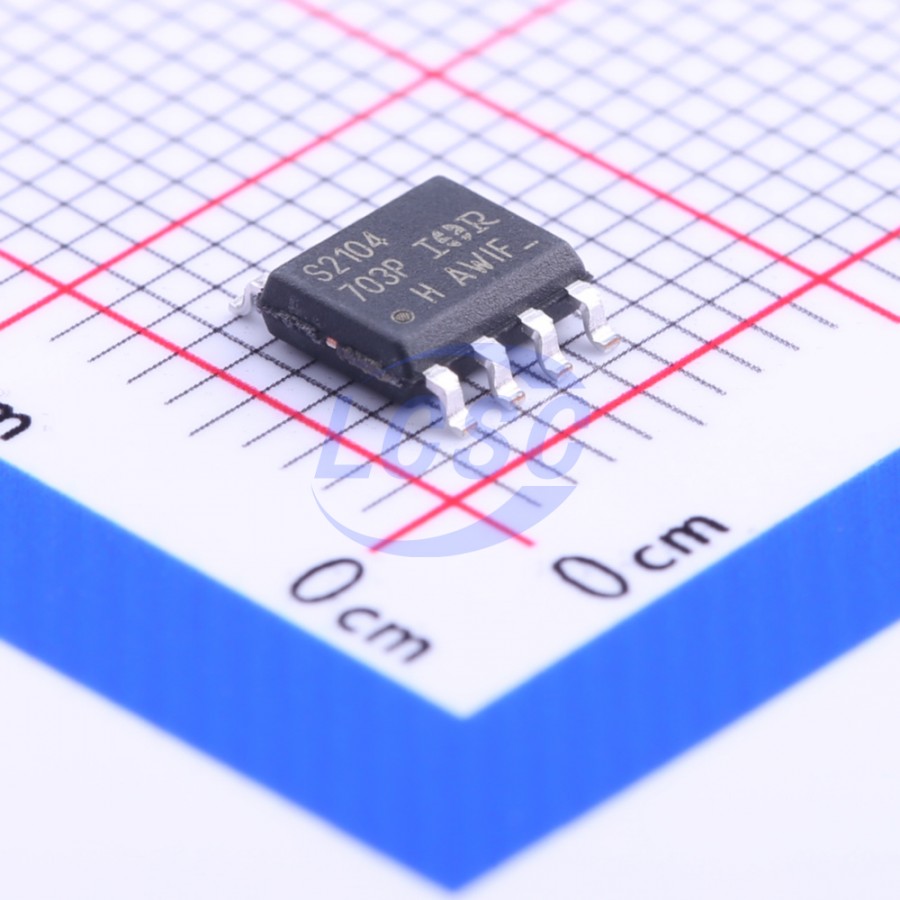

IRS2104STRPBF
10V~20V 270mA 130mA SOIC-8 Gate Drivers RoHS
IR Rectifier Half-Bridge Driver
- Manufacturer
- Infineon
- Manufacturer part #
- IRS2104STRPBF
- Store part #
- C151525
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,486 in stock
#C151525
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.28 | ₹100.28 |
| 10+ | ₹83.32 | ₹833.20 |
| 30+ | ₹74.62 | ₹2,238.60 |
| 100+ | ₹66.14 | ₹6,614.00 |
| 500+ | ₹48.51 | ₹24,255.00 |
| 1,000+ | ₹45.68 | ₹45,680.00 |
1 × ₹100.28
₹100.28
excl. GST
₹118.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS2104STRPBF
₹100.28 for 1 + GST
Specifications
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 270mA
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 130mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.275 g
Overview
The IRS2104 is a high voltage, high speed power MOSFET and IGBT driver with dependent high- and lowside referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V. The output drivers feature a high pulse current buffer stage designed for minimum driver crossconduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates from 10 V to 600 V.
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 20 V
- Undervoltage lockout
- 3.3 V, 5 V, and 15 V input logic compatible
- Cross-conduction prevention logic
- Internally set deadtime
- High-side output in phase with input
- Shutdown input turns off both channels
- Matched propagation delay for both channels
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRS2103STRPBF#C2958Infineon · SOIC-8 | Infineon | SOIC-8 | 110 | ₹149.64 · 110 in stock | View |
 | IRS2003STRPBF#C40009Infineon · SOP-8 | Infineon | SOP-8 | 7,999 | ₹64.39 · 7,999 in stock | View |
 | IRS2001SPBF#C538232Infineon · SOIC-8 | Infineon | SOIC-8 | 4 | ₹302.41 · 4 in stock | View |
 | IRS2004STRPBF#C78066Infineon · SOIC-8 | Infineon | SOIC-8 | 1,667 | ₹86.10 · 1,667 in stock | View |
| SL2103#C20539711Slkor · SOP-8 | Slkor | SOP-8 | 2,343 | ₹43.74 · 2,343 in stock | View | |
