InfineonDatasheet (PDF)

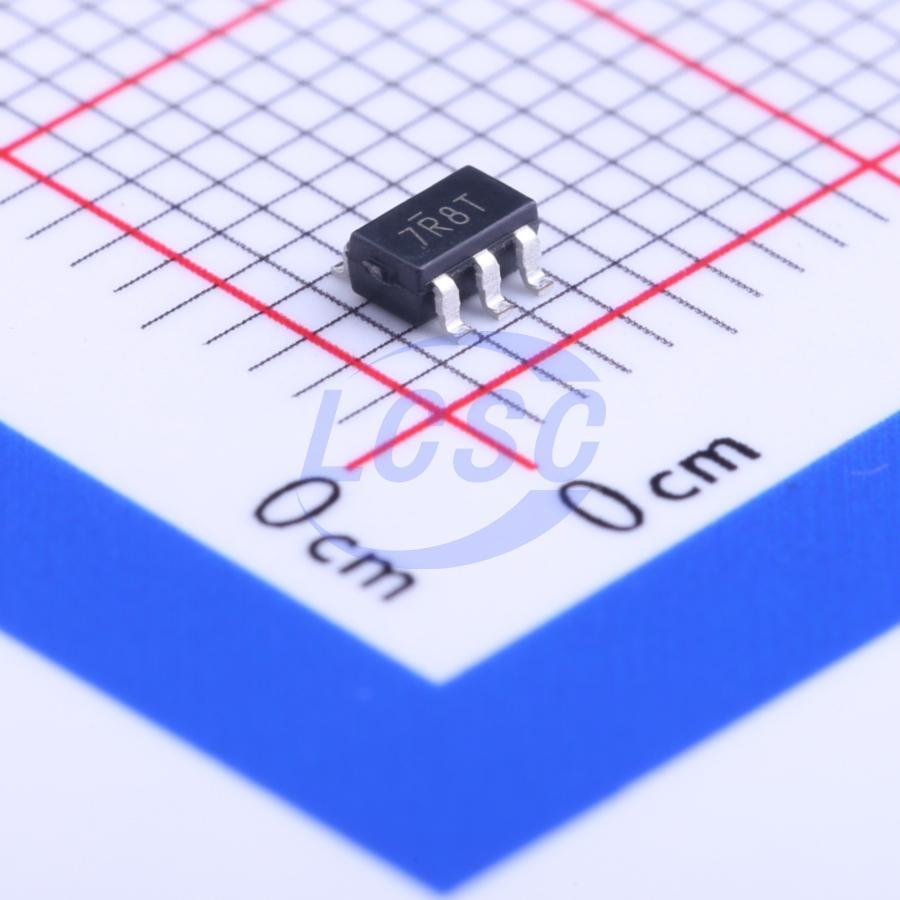

IRS44273LTRPBF
10.2V~20V 1.5A 1.5A SOT-23-5 Gate Drivers RoHS
SOT-23-5ROHS3 CompliantActive
Single Low-Side Driver IC
- Manufacturer
- Infineon
- Manufacturer part #
- IRS44273LTRPBF
- Store part #
- C126909
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,937 in stock
#C126909
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.00 | ₹78.00 |
| 10+ | ₹63.66 | ₹636.60 |
| 30+ | ₹56.49 | ₹1,694.70 |
| 100+ | ₹49.32 | ₹4,932.00 |
| 500+ | ₹44.98 | ₹22,490.00 |
| 1,000+ | ₹42.80 | ₹42,800.00 |
1 × ₹78.00
₹78.00
excl. GST
₹92.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRS44273LTRPBF
₹78.00 for 1 + GST
Specifications
- Low Level Delay Time
- 50ns
- High Level Delay Time
- 50ns
- Quiescent Current
- 170uA
- Voltage - Supply
- 10.2V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 25ns
- Fall Time
- 25ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.083 g
Overview
The IRS44273L is a low voltage, power MOSFET and IGBT non-inverting gate driver. Proprietary latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output. The output driver features a current buffer stage.
Applications
- General Purpose Gate Driver
- DC-DC converters
- Plasma display panel (PDP) applications
Key features
- CMOS Schmitt-triggered inputs
- Under voltage lockout
- 3.3V logic compatible
- Output in phase with input
- Leadfree, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EG44273#C2987460EG Micro · SOT-23-5 | EG Micro | SOT-23-5 | 8,085 | ₹30.03 · 8,085 in stock | View |
 | TPK20I4US5#C51939652TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 480 | ₹45.13 · 480 in stock | View |
 | COS44263#C7525173COSINE · SOT23-5 | COSINE | SOT23-5 | 290 | ₹28.52 · 290 in stock | View |
 | COS44273#C7525174COSINE · SOT23-5 | COSINE | SOT23-5 | On request | ₹28.05 · 0 in stock | View |
