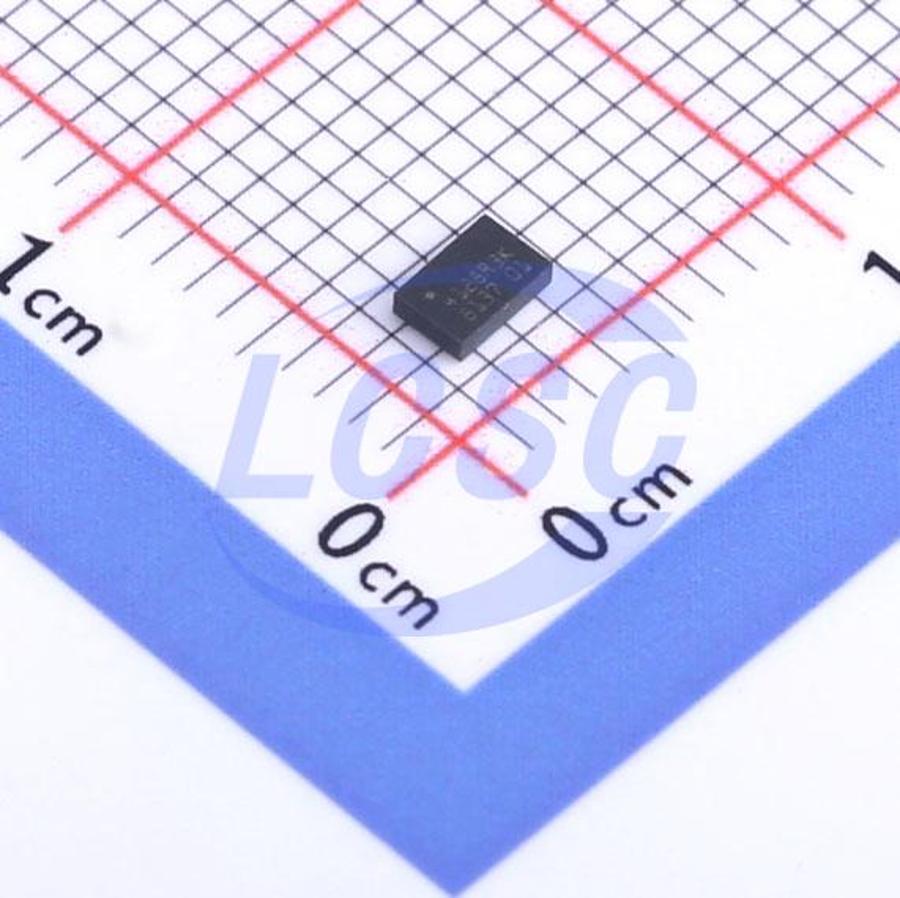

M24128-DRMF3TG/K
128Kbit 1MHz I2C TDFN-8-EP(2x3) Memory RoHS
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,463 in stock
#C2061728
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹250.34 | ₹250.34 |
| 10+ | ₹212.96 | ₹2,129.60 |
| 30+ | ₹192.54 | ₹5,776.20 |
| 100+ | ₹169.28 | ₹16,928.00 |
| 500+ | ₹152.77 | ₹76,385.00 |
| 1,000+ | ₹148.20 | ₹1,48,200.00 |
1 × ₹250.34
₹250.34
excl. GST
₹295.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24128-DRMF3TG/K
₹250.34 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.027 g
Overview
The M24128 is a 128-Kbit I²C -compatible EEPROM (electrically erasable programmable memory) organized as 16 Kx8 bits. The M24128-BW can operate with a supply voltage from 2.5 V to 5.5 V, the M24128-BR can operate with a supply voltage from 1.8 V to 5.5 V, and the M24128-BF and M24128-DF can operate with a supply voltage from 1.7 V to 5.5 V (the M24128-BF and the M24128-DF can also operate down to 1.6 V, under some restricting conditions). All these devices operate with a clock frequency of 1 MHz (or less), over an ambient temperature range of -40 ℃ to +85 ℃. The M24128-D offers an additional page, named the identification page (64 byte). The identification page can be used to store sensitive application parameters which can be (later) permanently locked in read-only mode.
Key features
- Compatible with following I²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 128 Kbit (16 Kbyte) of EEPROM
- Page size: 64 byte
- Additional write lockable page (M24128-D order codes)
- Single supply voltage range: 1.7 V to 5.5 V over -40 ℃ / +85 ℃, 1.6 V to 5.5 V over 0 ℃ / +85 ℃
- Write: Byte write within 5 ms, Page write within 5 ms
- Operating temperature range: from -40 ℃ up to +85 ℃
- Random and sequential read modes
- Write protect of the whole memory array
- Enhanced ESD/latch-Up protection
- More than 4 million write cycles
- More than 200-years data retention
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24128-BFMC6TG#C2061073ST · MLP-8(2x3) | ST | MLP-8(2x3) | 55 | ₹138.29 · 55 in stock | View |
 | 24CW1280T-I/MUY#C616807MICROCHIP · UDFN-8-EP(2x3) | MICROCHIP | UDFN-8-EP(2x3) | 10 | ₹359.79 · 10 in stock | View |
 | ZD24C128A-MAGMT#C54583267Zetta · UDFN-8(2x3) | Zetta | UDFN-8(2x3) | 8,845 | ₹26.55 · 8,845 in stock | View |
 | FM24C128D-DN-T-G#C2912082FUDAN MICRO · TDFN-8-EP(2x3) | FUDAN MICRO | TDFN-8-EP(2x3) | 2,675 | ₹29.01 · 2,675 in stock | View |
 | FT24C128A-TNR-T#C53085299FMD(Fremont Micro Devices) · UDFN-8(2x3) | FMD(Fremont Micro Devices) | UDFN-8(2x3) | 450 | ₹18.26 · 450 in stock | View |
