onsemiDatasheet (PDF)

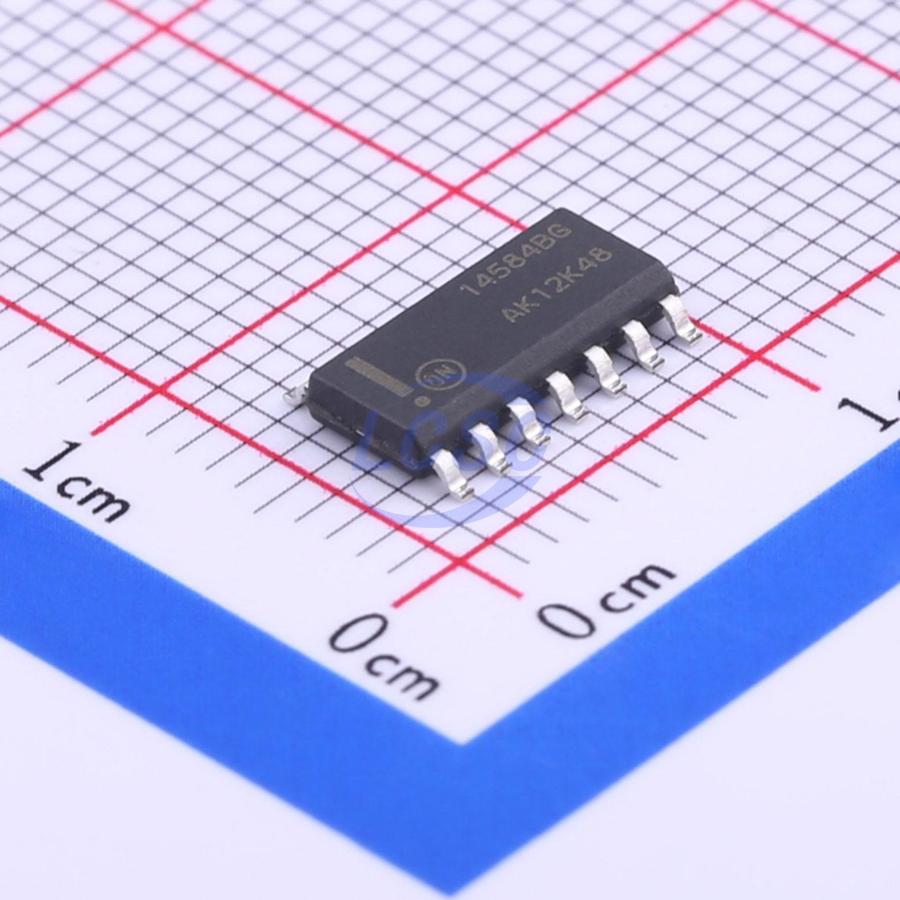

MC14584BDR2G
Schmitt trigger 3V~18V 80ns@15V,50pF 1uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Schmitt Trigger
- Manufacturer
- onsemi
- Manufacturer part #
- MC14584BDR2G
- Store part #
- C53571
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,200 in stock
#C53571
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.79 | ₹168.95 |
| 50+ | ₹27.94 | ₹1,397.00 |
| 150+ | ₹25.43 | ₹3,814.50 |
| 500+ | ₹16.22 | ₹8,110.00 |
| 2,500+ | ₹14.83 | ₹37,075.00 |
| 5,000+ | ₹14.00 | ₹70,000.00 |
5 × ₹33.79
₹168.95
excl. GST
₹199.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14584BDR2G
₹168.95 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 4000B
- Input Type
- Schmitt trigger
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 80ns@15V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - High
- 3.4V~10.5V
- Input Logic Level - Low
- 1.6V~4.6V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.281 g
Overview
The MC14584B Hex Schmitt Trigger is constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. These devices find primary use where low power dissipation and/or high noise immunity is desired. The MC14584B may be used in place of the MC14069UB hex inverter for enhanced noise immunity to “square up” slowly changing waveforms.
Key features
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load over the Rated Temperature Range
- Double Diode Protection on All Inputs
- Can Be Used to Replace MC14069UB
- For Greater Hysteresis, Use MC14106B which is Pin−for−Pin Replacement for CD40106B and MM74Cl4
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC14106BDR2G#C100035onsemi · SOIC-14 | onsemi | SOIC-14 | 11,150 | ₹31.53 · 11,150 in stock | View |
 | HEF40106BT-Q100J#C503402Nexperia · SOIC-14 | Nexperia | SOIC-14 | 1,455 | ₹51.53 · 1,455 in stock | View |
 | HEF40106BT,653#C6724Nexperia · SOIC-14 | Nexperia | SOIC-14 | 1,89,530 | ₹23.54 · 1,89,530 in stock | View |
 | CD40106S#C19818874GR · SOP-14 | GR | SOP-14 | 830 | ₹14.83 · 830 in stock | View |
 | HT40106ARZ#C5143009HTCSEMI · SOIC-14 | HTCSEMI | SOIC-14 | 169 | ₹33.68 · 169 in stock | View |
