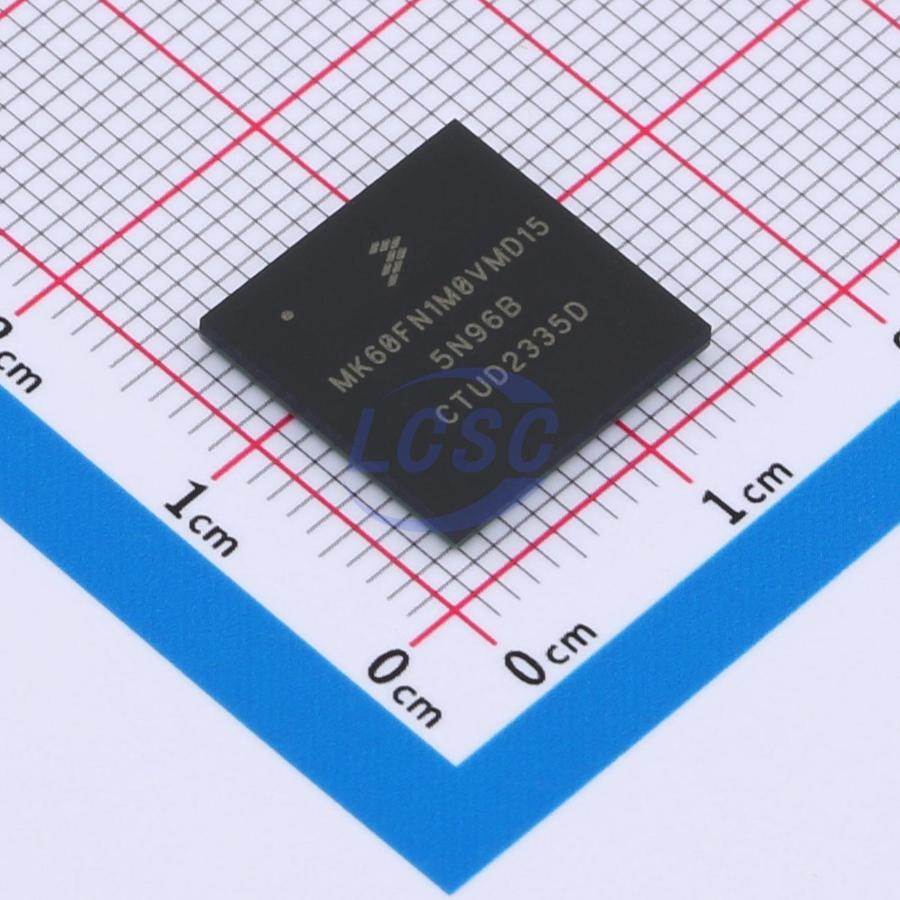

MK60FN1M0VMD15

Key features

• Operating Characteristics – Voltage range: 1.71 to 3.6 V
• Flash write voltage range: 1.71 to 3.6 V
• Temperature range (ambient): -40 to 105℃
• Performance Up to 150 MHz Arm Cortex -M4 core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz
• Memories and memory interfaces – Up to 1024 KB program flash memory on nonFlexMemory devices
• Up to 512 KB program flash memory on FlexMemory devices
• Up to 512 KB FlexNVM on FlexMemory devices
• 16 KB FlexRAM on FlexMemory devices
• Up to 128 KB RAM
• Serial programming interface (EzPort)
• FlexBus external bus interface
• DDR controller interface
• NAND flash controller interface
• Clocks – 3 to 32 MHz crystal oscillator
• 32 kHz crystal oscillator
• Multi-purpose clock generator
• System peripherals – Multiple low-power modes to provide power optimization based on application requirements
• Memory protection unit with multi-master protection
• 32-channel DMA controller, supporting up to 128 request sources
• External watchdog monitor
• Software watchdog
• Low-leakage wakeup unit
• Security and integrity modules – Hardware CRC module to support fast cyclic redundancy checks
• Tamper detect and secure storage
• Hardware random-number generator
• Hardware encryption supporting DES, 3DES, AES, MD5, SHA-1, and SHA-256 algorithms
• 128-bit unique identification (ID) number per chip
• Human-machine interface – Low-power hardware touch sensor interface (TSI)
• General-purpose input/output
• Analog modules – Four 16-bit SAR ADCs
• Programmable gain amplifier (PGA) (up to x64) integrated into each ADC
• Two 12-bit DACs
• Four analog comparators (CMP) containing a 6-bit DAC and programmable reference input
• Voltage reference
• Programmable delay block
• Two 8-channel motor control/general purpose/PWM timers
• Two 2-channel quadrature decoder/general purpose timers
• IEEE 1588 timers
• Periodic interrupt timers
• 16-bit low-power timer
• Carrier modulator transmitter
• Real-time clock
• Communication interfaces – Ethernet controller with MII and RMII interface to external PHY and hardware IEEE 1588 capability
• USB high-/full-/low-speed On-the-Go controller with ULPI interface
• USB full-/low-speed On-the-Go controller with on-chip transceiver
• USB Device Charger detect (USBDCD)
• Two Controller Area Network (CAN) modules
• Three SPI modules
• Two I2C modules
• Six UART modules
• Secure Digital Host Controller (SDHC)
• Two I2S modules
