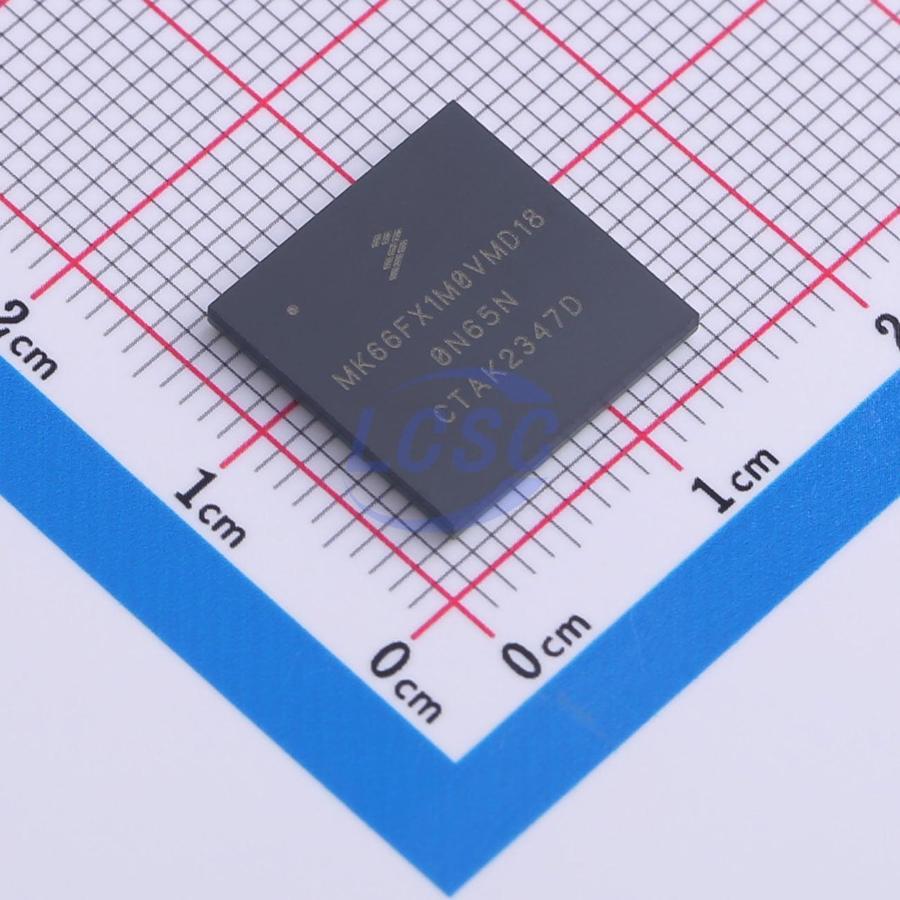

MK66FX1M0VMD18

180 MHz ARM Cortex - M4F Microcontroller. The K66 sub - family members provide greater performance, memory options up to 2 MB total flash and 256 KB of SRAM, as well as higher peripheral integration with features such as Dual USB and a 10/100 Mbit/s Ethernet MAC. These devices maintain hardware and software compatibility with the existing Kinetis family. This product also offers: - Integration of a High Speed USB Physical Transceiver - Greater performance flexibility with a High Speed Run mode - Smarter peripherals with operation in Stop modes

Key features

• Up to 180 MHz ARM Cortex - M4 based core with DSP instructions and Single Precision Floating Point unit
• Multiple low - power modes to provide power optimization based on application requirements
• Memory protection unit with multi - master protection
• 3 to 32 MHz main crystal oscillator
• 32 kHz low power crystal oscillator
• 48 MHz internal reference
• Hardware random - number generator
• Supports DES, AES, SHA accelerator (CAU)
• Multiple levels of embedded flash security
• Four Periodic interrupt timers
• 16 - bit low - power timer
• Two 16 - bit low - power timer PWM modules
• Two 8 - channel motor control/general purpose/PWM timers
• Two 2 - ch quad decoder/general purpose timers
• Real - time clock
• Low - power hardware touch sensor interface (TSI)
• General - purpose input/output
• Up to 2 MB program flash memory on nonFlexMemory devices with 256 KB RAM
• Up to 1 MB program flash memory and 256 KB of FlexNVM on FlexMemory devices
• 4 KB FlexRAM on FlexMemory devices
• FlexBus external bus interface and SDRAM controller
• Two 16 - bit SAR ADCs and two 12 - bit DAC
• Four analog comparators (CMP) containing a 6 - bit DAC and programmable reference input
• Voltage reference 1.2V
• Ethernet controller with MII and RMII interface to external PHY and hardware IEEE 1588 capability
• USB high - /full - /low - speed On - the - Go with on - chip high speed transceiver
• USB full - /low - speed OTG with on - chip transceiver
• Two CAN, three SPI and four I2C modules
• Low Power Universal Asynchronous Receiver/Transmitter 0 (LPUART0) and five standard UARTs
• Secure Digital Host Controller (SDHC)
• I2S module
• Voltage/Flash write voltage range: 1.71 to 3.6 V
• Temperature range (ambient): - 40 to 105℃
