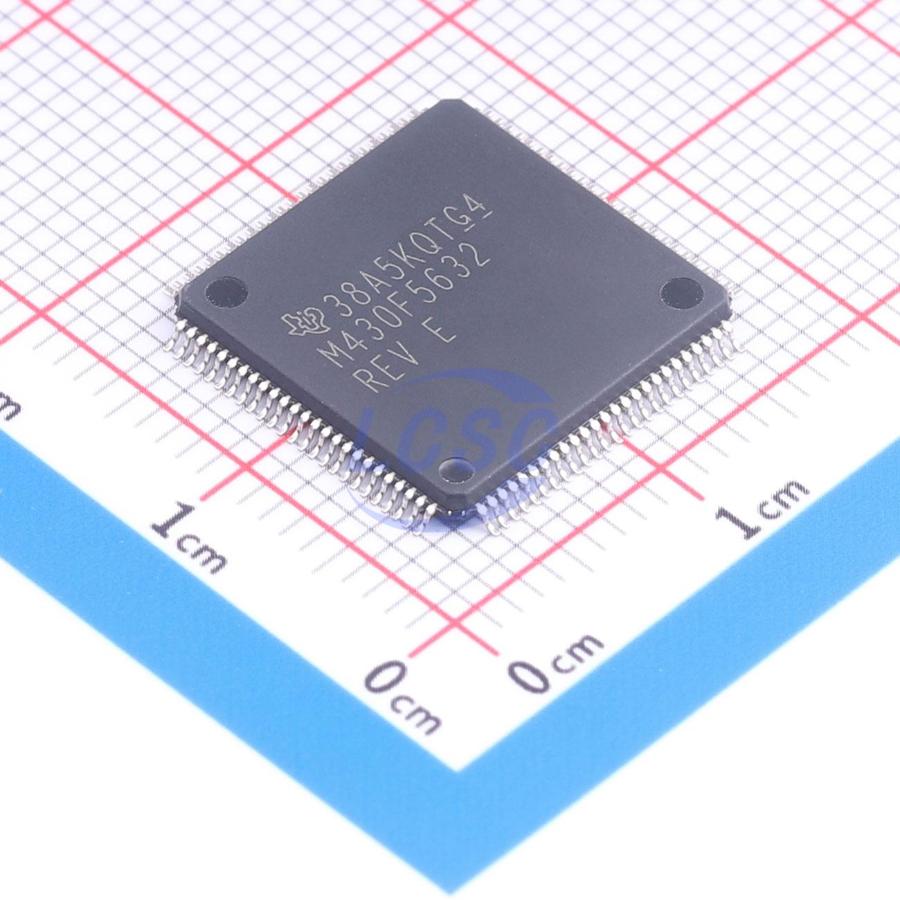

MSP430F5632IPZR

The MSP430 series of ultra-low-power microcontrollers comes in a wide variety. Each member device is equipped with different peripheral sets to meet the requirements of various applications. This architecture, when used in conjunction with five low-power modes, is the optimal choice for extending battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, which uses 16-bit registers and a constant generator to achieve maximum coding efficiency. The digitally controlled oscillator (DCO) can wake up from the low-power mode to the active mode in 3µs (typical). The MSP430F563x device is a microcontroller equipped with the following peripherals: a high-performance 12-bit ADC, a comparator, two USCI, USB 2.0, a hardware multiplier, DMA, four 16-bit timers, an RTC module with an alarm function, and up to 74 I/O pins.

Applications

• Analog and digital sensor systems
• Digital motor control
• Remote control
• Thermostats
• Digital timers
• Handheld instruments

Key features

• Supply voltage range: 1.8V to 3.6V
• Ultra-low power consumption
• Active Mode (AM): All system clocks active, 270µA/MHz at 8MHz, 3.0V, Flash program execution (typical)
• Standby Mode (LPM3): Watchdog and power monitor with crystal available, full RAM retention, fast wake-up, 1.8µA at 2.2V, 2.1µA at 3.0V (typical)
• Turn-off RTC Mode (LPM3.5): Off mode with active RTC using crystal, 1.1µA at 3.0V (typical)
• Turn-off Mode (LPM4.5): 0.3µA at 3.0V (typical)
• Single clock system
• FLL control loop for frequency stabilization
• Low-power low-frequency internal clock source (VLO)
• Low-frequency trimmed internal reference source (REFO)
• 32kHz crystal oscillator (XT1)
• High-frequency crystal oscillator up to 32MHz (XT2)
• Four 16-bit timers, each with 3, 5, or 7 capture/compare registers
• Two Universal Serial Communication Interfaces (USCI)
• USCI_A0 and USCI_A1 both support:
• Enhanced UART with automatic baud rate detection
• IrDA encoder and decoder
• Synchronous SPI
• USCI_B0 and USCI_B1 both support:
• I2C
• Synchronous SPI
• Full-speed USB
• Integrated USB PHY
• Integrated 3.3V and 1.8V USB power system
• Integrated USB PLL
• Eight input and eight output endpoints
• 12-bit ADC with internal shared reference, sample-and-hold, and auto-scan
• Dual 12-bit DAC with synchronization
• Voltage comparator
• Hardware multiplier supporting 32-bit operations
• Serial on-board programming, no external programming voltage required
• 6-channel internal DMA
• RTC module with supply voltage backup switching
