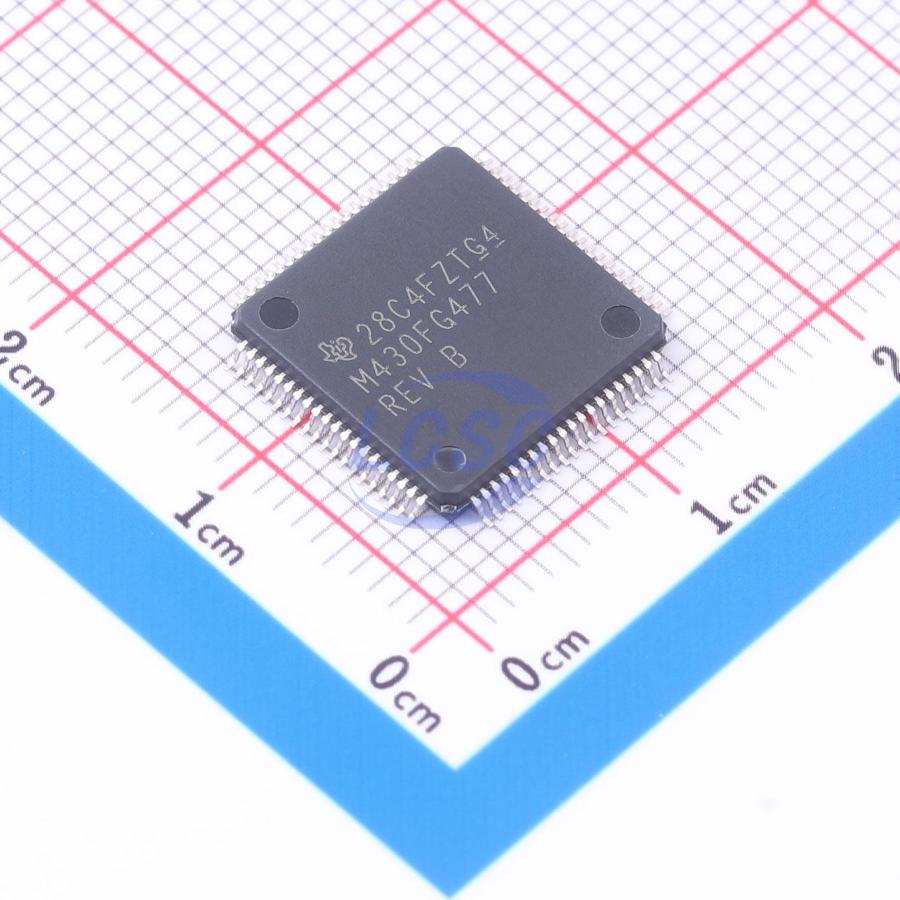

MSP430FG477IPNR

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6μs. The MSP430FG47x is a microcontroller configuration with two 16-bit timers, a basic timer with a real-time clock, a high-performance 16-bit sigma-delta ADC, dual 12-bit DACs, two configurable operational amplifiers, two universal serial communication interface, 48 I/O pins, and a liquid crystal display driver.

Applications

• Analog and digital sensor systems
• Digital motor control
• Remote controls
• Thermostats
• Digital timers
• Handheld measuring instruments

Key features

• Supply voltage range: 1.8V to 3.6V with ultra-low power consumption
• Power parameters: 262μA in active mode at 1MHz, 2.2V; 1.1μA in standby mode; 0.1μA in off mode with RAM retention
• Five low-power modes; wake-up from standby in less than 6μs
• 16-bit RISC architecture with extended memory; 125ns instruction cycle
• Integrated 16-bit sigma-delta ADC with internal reference and five differential analog inputs
• Integrated dual 12-bit DACs
• Integrated dual configurable operational amplifiers
• Integrated 16-bit Timer_A with three capture/compare registers
• Integrated 16-bit Timer_B with seven shadowed capture/compare registers
• Two universal serial communication interfaces: USCI_A0 supports enhanced UART with automatic baud rate detection, IrDA codec, and synchronous SPI; USCI_B0 supports I2C and synchronous SPI
• Integrated LCD driver with contrast control, supporting up to 128 segments
• Integrated brownout detector
• Integrated basic timer with real-time clock function
• Integrated supply voltage supervisor with programmable level detection
• Integrated on-chip comparator
• Serial on-board programming with programmable code protection via security fuse; bootloader support
• Model variants: MSP430FG477 — 32KB + 256B flash, 2KB RAM; MSP430FG478 — 48KB + 256B flash, 2KB RAM; MSP430FG479 — 60KB + 256B flash, 2KB RAM
• Available packages: 113-ball MicroStar Junior BGA, 113-ball nFBGA, 80-pin QFP
