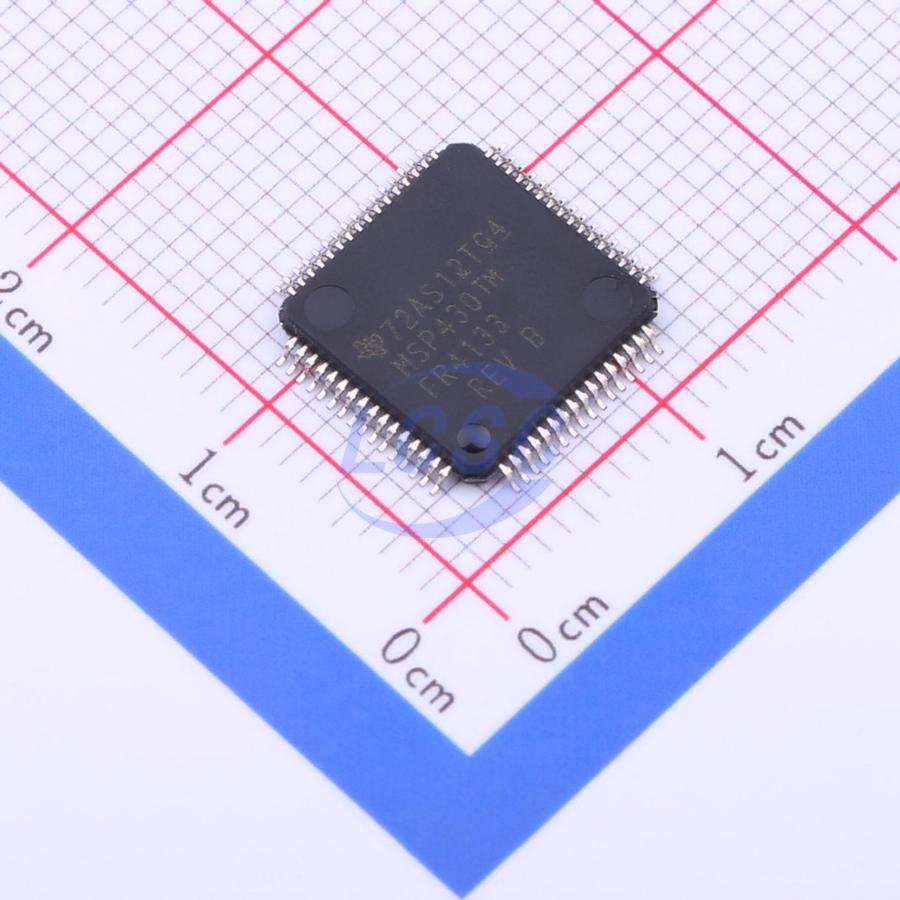

MSP430FR4133IPMR

TI's MSP430 series of low-power microcontrollers comes in a wide variety. Each member device is equipped with different peripheral sets to meet the needs of various applications. This architecture, when used in conjunction with multiple low-power modes, is the optimal choice for extending battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and a constant generator for maximum coding efficiency. The digitally controlled oscillator (DCO) enables the device to wake up from a low-power mode and enter the operating mode in less than 10μs.

Applications

• A/C remote controller
• Water meter, heat meter, gas meter
• One-time password token
• Weighing instrument
• Low-power display driver with built-in temperature compensation
• Blood glucose or blood pressure monitor

Key features

• Embedded microcontroller – 16-bit RISC architecture, up to 16MHz – Wide supply voltage range: 1.8V to 3.6V
• Optimized low-power modes (at 3V) – Active mode: 126μA/MHz – Standby mode: <1μA with RTC counter and LCD active – Shutdown (LPM4.5): 15nA
• Ultra-low-power ferroelectric RAM (FRAM) – Up to 15.5KB non-volatile memory – Built-in ECC – Configurable write protection – Unified storage for program and constant data – 10¹⁵ write cycle endurance – Radiation-tolerant and non-magnetic
• Smart digital peripherals – IR modulation logic – Two 16-bit timers, each with 3 capture/compare registers (Timer_A3) – One 16-bit RTC timer for timing only – 16-bit CRC
• Enhanced serial communications – eUSCI_A supporting UART, IrDA, and SPI – eUSCI_B supporting SPI and I²C
• High-performance analog – 10-channel 10-bit ADC – 1.5V internal reference voltage – Sample-and-hold at 200ksps – Low-power LCD driver – Supports up to 4×36 or 8×32 segment LCD configurations – On-chip charge pump to keep LCD active in LPM3.5 – Each LCD pin software-configurable as SEG or COM – Contrast control: 2.6V to 3.5V (in 0.06V increments)
• Clock System (CS) – On-chip 32kHz RC oscillator (REFO) – On-chip 16MHz DCO with FLL – ±1% accuracy at room temperature (with on-chip reference) – On-chip ultra-low-frequency 10kHz oscillator (VLO) – On-chip high-frequency modulation oscillator (MODOSC) – External 32kHz crystal (XT1) – Programmable MCLK prescaler (1 to 128) – SMCLK derived from MCLK via programmable prescaler (1, 2, 4, or 8)
• GPIO and pin functions – 60 I/Os (64-pin package) – 16 interrupt pins (P1 and P2) capable of waking the MCU from LPM – All I/Os are capacitive touch I/Os
• Development tools and software – Free professional development environment – Development kit (MSP-TS430PM64D)
