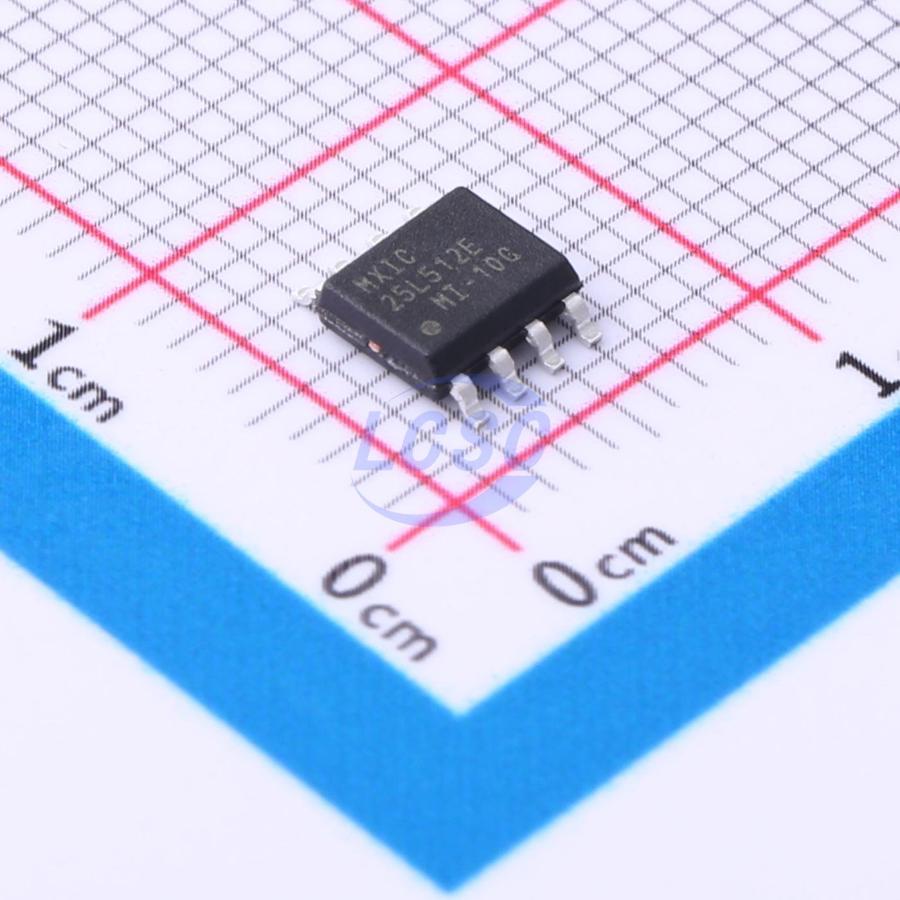

MX25L512EMI-10G

Key features

• Low Power Consumption
• 2.7 to 3.6 volt for read, erase, and program operations
• Dual Output Mode (DREAD)
• Auto Erase and Auto Program Algorithm
• HOLD FEATURE
• Supports Serial Peripheral Interface -- Mode 0 and Mode 3
• 524,288 x 1 bit structure or 262,144 x 2 bits (Dual Output mode) Structure
• 16 Equal Sectors with 4K byte each - Any Sector can be erased individually
• Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations
• Latch-up protected to 100mA from -1V to Vcc +1V
• High Performance - Fast access time: 104MHz serial clock - Serial clock of Dual Output mode: 80MHz - Fast program time: 0.6ms(typ.) and 3ms(max.)/ page (256-byte per page) - Byte program time: 9us - Fast erase time: 40ms(typ.)/sector (4K-byte per sector); 0.4s (typ.) and 2s(max.)/chip
• Low Power Consumption - Low active read current: 12mA(max.) at 104MHz and 4mA(max.) at 33MHz - Low active programming current: 15mA (typ.) - Low active sector erase current: 9mA (typ.) - Low standby current: 15uA (typ.) - Deep power-down mode 2uA (typ.)
• Minimum 100,000 erase/program cycles
• 20 years data retention
• Input Data Format - 1-byte Command code Block Lock protection - The BP0~BP1 status bit defines the size of the area to be software protected against Program and Erase instructions.
• Auto Erase and Auto Program Algorithm - Automatically erases and verifies data at selected sector - Automatically programs and verifies data at selected page
