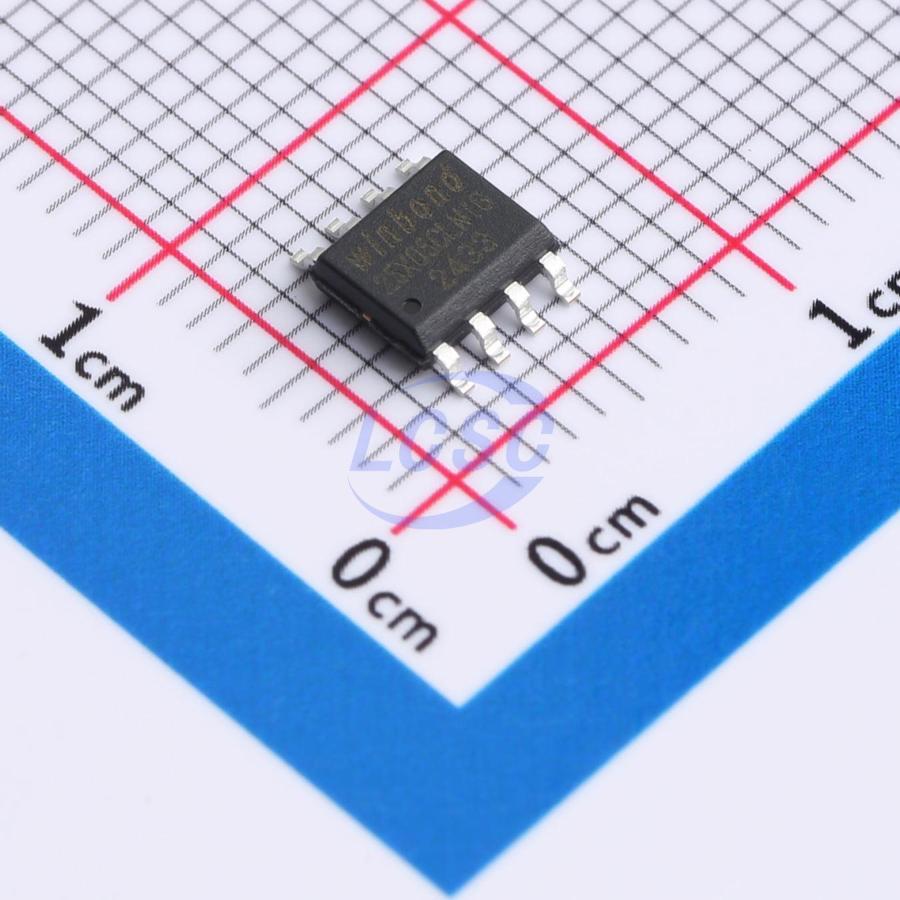

W25X05CLSNIG

The W25X05CL (512K-bit) Serial Flash memories provide a storage solution for systems with limited space, pins and power. The series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code download applications as well as storing voice, text and data. The devices operate on a single 2.3V to 3.6V power supply with current consumption as low as 1mA active and 1μA for power - down. All devices are offered in space - saving packages. The W25X05CL arrays are organized into 256 programmable pages of 256 - bytes each. Up to 256 bytes can be programmed at a time. The W25X05CL have 16 erasable sectors, 2 erasable 32KB blocks and 1 erasable 64KB blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage. The W25X05CL support the standard Serial Peripheral Interface (SPI), and a high performance dual output as well as Dual I/O SPI: Serial Clock, Chip Select, Serial Data DI (I/O0), DO (I/O1). SPI clock frequencies up to 104MHz are supported allowing equivalent clock rates of 208MHz when using the Fast Read Dual Output instruction. These transfer rates are comparable to those of 8 and 16 - bit Parallel Flash memories. The Continuous Read Mode allows for efficient memory access with as few as 16 - clocks of instruction - overhead to read a 24 - bit address, allowing true XIP (execute in place) operation. A Hold pin, Write Protect pin and programmable write protect, with top or bottom array control features, provide further control flexibility. Additionally, the device supports JEDEC standard manufacturer and device identification with a 64 - bit Unique Serial Number.

Key features

• Family of Serial Flash Memories – W25X05CL: 512K - bit/64K - byte (65,536) – 256 - bytes per programmable page – Uniform erasable 4KB, 32KB & 64KB regions.
• SPI with Single / Dual Outputs / I/O – Standard SPI: CLK, /CS, DI, DO, /WP, /Hold – Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
• Data Transfer up to 208M - bits / second – Clock operation to 104MHz – 208MHz equivalent Dual I/O SPI – Auto - increment Read capability
• Efficient “Continuous Read Mode” – Low Instruction overhead – Continuous Read – As few as 16 clocks to address memory – Allows true XIP (execute in place) operation
• Software and Hardware Write Protection – Write - Protect all or portion of memory – Enable/Disable protection with /WP pin – Top or bottom array protection
• Flexible Architecture with 4KB sectors – Uniform Sector/Block Erase (4/32/64 - kbytes) – Page program up to 256 bytes <1ms – More than 100,000 erase/write cycles – More than 20 - year data retention
• Low Power, Wide Temperature Range – Single 2.3V to 3.6V supply – 1mA active current, <1μA Power - down(typ.) – - 40℃ to +85℃ operating range
• Space Efficient Packaging – 8 - pin SOIC
