NC7S02M5X
2V~6V 17ns@6V,50pF 1uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive

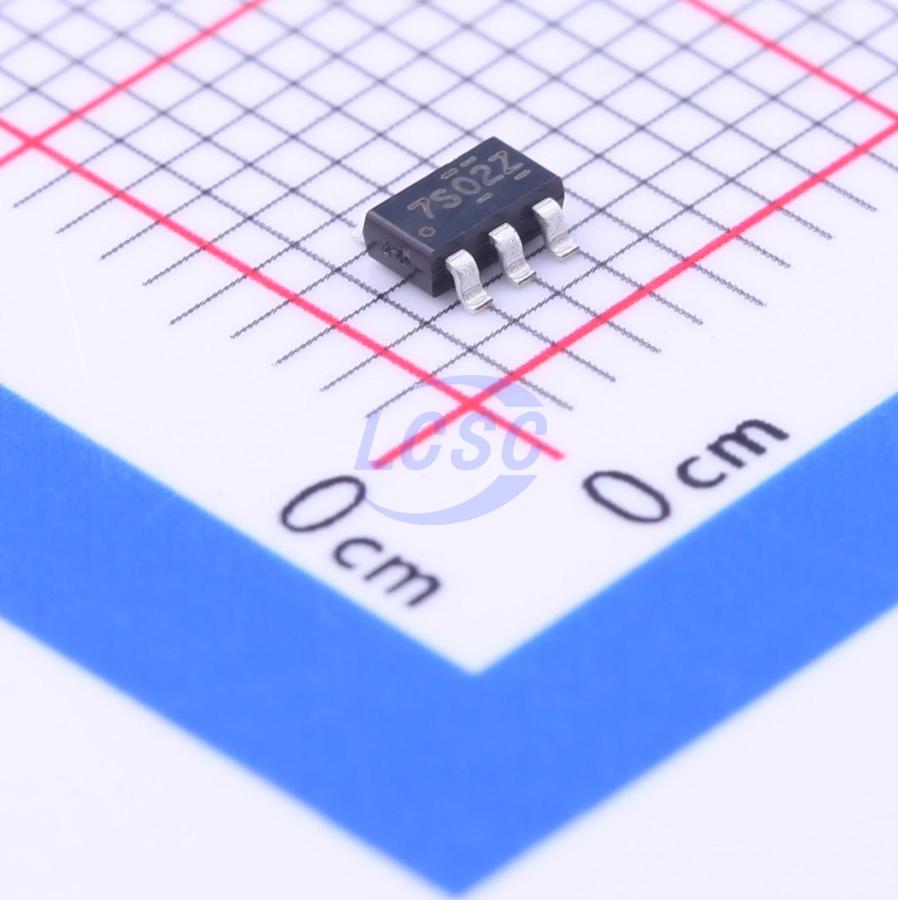

2-Input NOR Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NC7S02M5X
- Store part #
- C112083
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,070 in stock
#C112083
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.96 | ₹59.80 |
| 50+ | ₹9.72 | ₹486.00 |
| 150+ | ₹8.60 | ₹1,290.00 |
| 500+ | ₹7.75 | ₹3,875.00 |
| 3,000+ | ₹6.34 | ₹19,020.00 |
| 6,000+ | ₹6.01 | ₹36,060.00 |
5 × ₹11.96
₹59.80
excl. GST
₹70.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S02M5X
₹59.80 for 5 + GST
Specifications
- Logic Family
- 7S Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 0V~260mV
- Propagation Delay
- 17ns@6V,50pF
- Input Logic Level - Low
- 500mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V
- Output Logic Level - High
- 5.68V~5.85V;5.9V~6V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The NC7S02 is a single 2- Input high performance CMOS NOR Gate. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both inputs and output with respect to the VCC and GND rails. Three stages of gain between inputs and outputs assure high noise immunity and reduced sensitivity to input edge rate.
Key features
- Space saving SOT23 or SC70 5-lead packages
- Ultra small MicroPak leadless package
- High Speed; tPD 3.5 ns typ
- Low Quiescent Power; ICC < 1 μA
- Balanced Output Drive; 2 mA IOL, -2 mA IOH
- Broad VCC Operating Range; 2V - 6V
- Balanced Propagation Delays
- Specified for 3V operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSN74LVC1G02DBVR#C42403087MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,990 | ₹7.42 · 2,990 in stock | View |
 | TC7S02F,LF#C7121121TOSHIBA · SC-74A(SOT-753) | TOSHIBA | SC-74A(SOT-753) | 2,300 | ₹17.78 · 2,300 in stock | View |
 | MC74HC1G02DTT1G-TP#C52205118TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,610 | ₹5.72 · 2,610 in stock | View |
 | 74HC1G02GV#C52205092TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,080 | ₹5.77 · 4,080 in stock | View |
 | 74HC1G02GV,125#C546690Nexperia · SC-74A | Nexperia | SC-74A | 55 | ₹12.56 · 55 in stock | View |
