NC7S14M5X
Schmitt trigger 2V~6V 17ns@6V,50pF 1uA 1 SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive

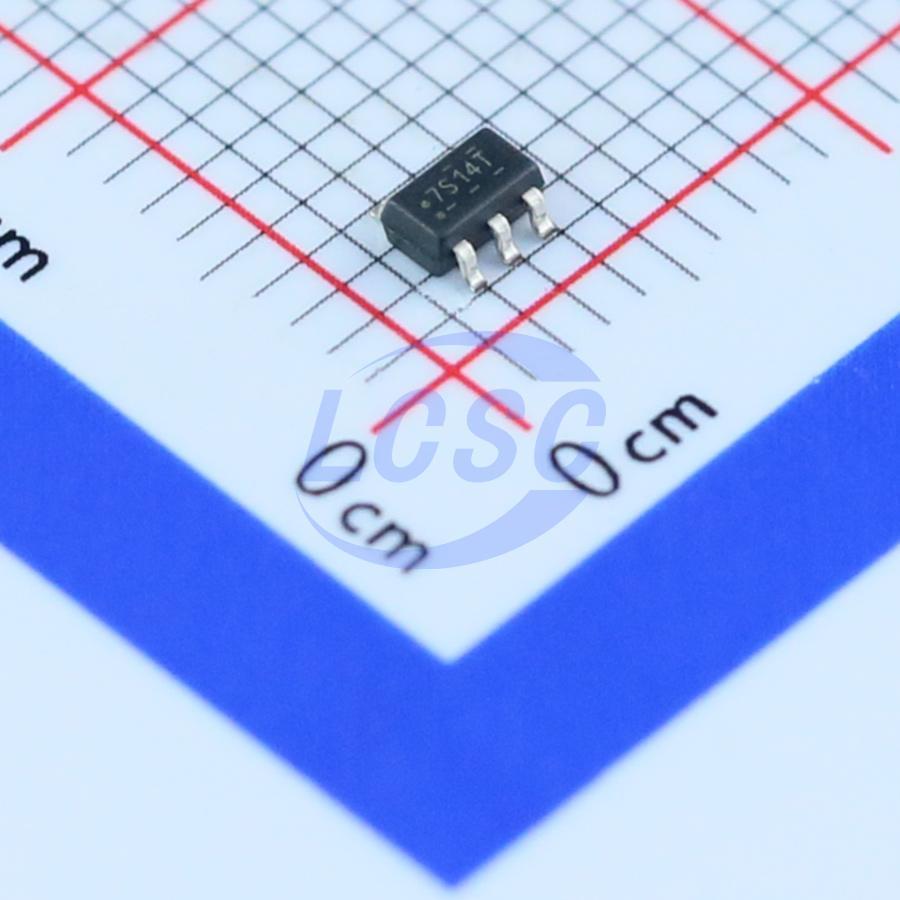

TinyLogic HS Inverter with Schmitt Trigger Input
- Manufacturer
- onsemi
- Manufacturer part #
- NC7S14M5X
- Store part #
- C7416
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,090 in stock
#C7416
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.36 | ₹56.80 |
| 50+ | ₹8.88 | ₹444.00 |
| 150+ | ₹7.63 | ₹1,144.50 |
| 500+ | ₹6.71 | ₹3,355.00 |
| 3,000+ | ₹5.97 | ₹17,910.00 |
| 6,000+ | ₹5.58 | ₹33,480.00 |
5 × ₹11.36
₹56.80
excl. GST
₹67.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S14M5X
₹56.80 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 7S
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 17ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 300mV~1.5V
- Output Logic Level - High
- 1.9V;2.9V;4.4V;5.9V;2.68V;4.18V;5.68V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The NC7S14 is a single high performance CMOS Inverter with Schmitt Trigger input. The circuit design provides hysteresis between the positive-going and negative going input thresholds thereby improving noise margins. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both input and output with respect to the VCC and GND rails.
Key features
- Space saving SOT23 or SC70 5-lead package
- Ultra small MicroPak leadless package
- Schmitt input hysteresis: >1V typ
- High speed: propagation delay (tPD) 4.5 ns typ
- Low quiescent power: supply current (ICC) <1 μA
- Balanced output drive: 2 mA output low current (IOL) , -2 mA output high current (IOH)
- Broad supply voltage (VCC) operating range: 2V – 6V
- Balanced propagation delays
- Specified for 3V operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G14W5-7#C176916DIODES · SOT-25-5 | DIODES | SOT-25-5 | 2,915 | ₹16.01 · 2,915 in stock | View |
 | MC74HC1G14DBVT1G#C891438onsemi · SC-74A-5 | onsemi | SC-74A-5 | 660 | ₹10.56 · 660 in stock | View |
 | NC7S14M5#C184444onsemi · SOT-23-5 | onsemi | SOT-23-5 | On request | ₹17.77 · 0 in stock | View |
