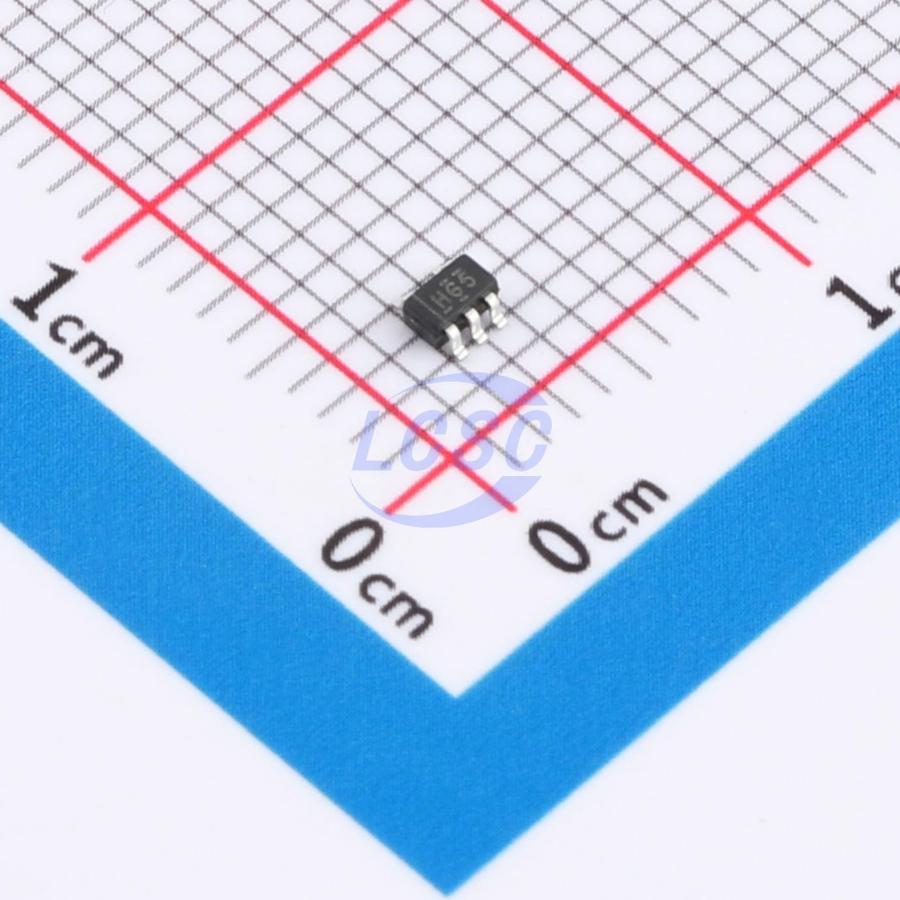

NC7SP32P5X-TP
500nA 800mV~3.6V 6ns@3.3V,5pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SP32P5X-TP
- Store part #
- C52098163
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,540 in stock
#C52098163
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.91 | ₹59.10 |
| 100+ | ₹4.66 | ₹466.00 |
| 300+ | ₹4.02 | ₹1,206.00 |
| 3,000+ | ₹3.55 | ₹10,650.00 |
| 6,000+ | ₹3.18 | ₹19,080.00 |
| 9,000+ | ₹2.98 | ₹26,820.00 |
10 × ₹5.91
₹59.10
excl. GST
₹69.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SP32P5X-TP
₹59.10 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- NC7SP
- Input Logic Level - Low
- 900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Propagation Delay
- 6ns@3.3V,5pF
- Output Logic Level - Low
- 440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
NC7SP32P5X-TP is a single 2-input OR gate that implements the logic function Y = A + B or Y = Ā + B̄ in positive logic. The device ensures extremely low static and dynamic power consumption across the entire VCC supply voltage range of 0.8V to 3.6V.
Applications
- AV receivers
- Portable audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Input tolerant up to 3.6V
- Ioff supports partial power-down mode
- Low quiescent current: Icc max 0.5μA
- ESD protection exceeds JESD 22: 2000V HBM, 200V MM, 1000V CDM
