onsemiDatasheet (PDF)

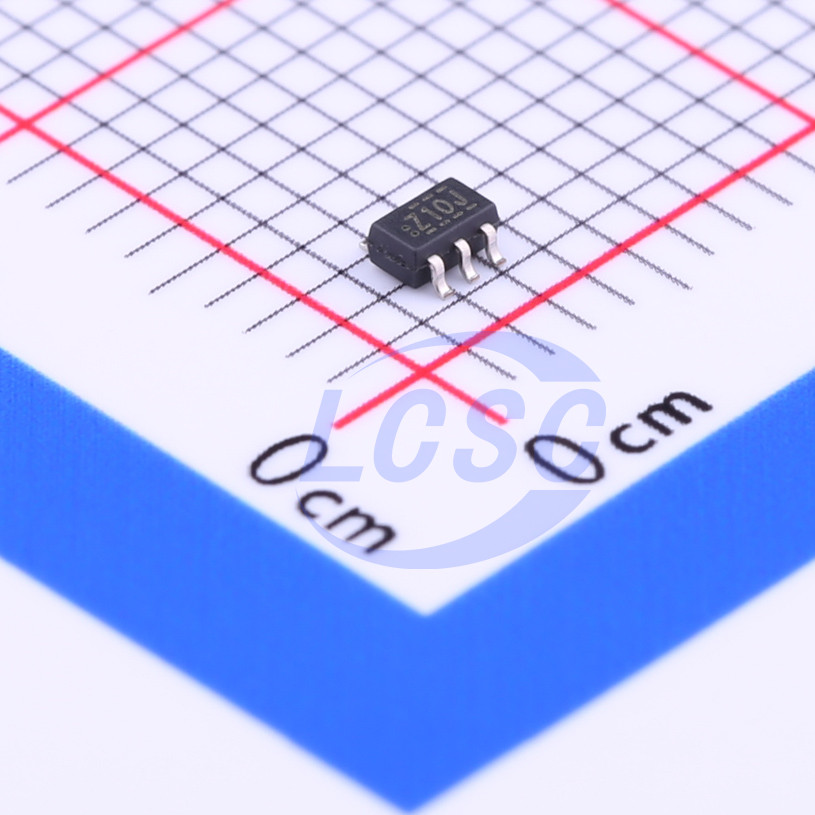

NC7SZ10P6X
NAND Gate IC 1 Channel SC-70-6
SC-70-6ROHS3 CompliantActive
3-Input NAND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ10P6X
- Store part #
- C258149
- Package / case
- SC-70-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,010 in stock
#C258149
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.40 | ₹74.00 |
| 100+ | ₹5.85 | ₹585.00 |
| 300+ | ₹4.84 | ₹1,452.00 |
| 3,000+ | ₹4.26 | ₹12,780.00 |
| 6,000+ | ₹3.80 | ₹22,800.00 |
| 9,000+ | ₹3.56 | ₹32,040.00 |
10 × ₹7.40
₹74.00
excl. GST
₹87.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ10P6X
₹74.00 for 10 + GST
Specifications
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 7SZ Series
- Output Logic Level - High
- 3.8V~4.2V;4.4V~4.5V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 0V~100mV;220mV~550mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Key features
- Space-saving SC70 6-pin package
- Ultra-compact MicroPak leadless package
- Ultra-high speed; typical propagation delay time (tPD) of 2.4 ns at 5V VCC (50 pF load)
- High output drive; ±24 mA at 3V VCC
- Wide VCC operating range; 1.65V - 5.5V
- High-impedance inputs/outputs during power-down
- Overvoltage-tolerant inputs for 5V-to-3V translation
- Patented noise/EMI reduction circuitry
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74LVC1G10DW-7#C460523DIODES · SOT-363 | DIODES | SOT-363 | 10 | ₹28.23 · 10 in stock | View | |
 | SN74LVC1G10DCKR#C485078TI · SC-70-6 | TI | SC-70-6 | 12,280 | ₹11.50 · 12,280 in stock | View |
 | EM74LVC1G10GW#C49188140EnergyMath · SOT-363 | EnergyMath | SOT-363 | 490 | ₹7.61 · 490 in stock | View |
 | U74LVC1G10G-AL6-R#C53152858UTC · SOT-363 | UTC | SOT-363 | 500 | ₹12.67 · 500 in stock | View |
| MSN74LVC1G10DCKR#C42403090MSKSEMI · SC-70-6 | MSKSEMI | SC-70-6 | On request | ₹9.34 · 0 in stock | View | |
