NC7SZ14M5X

Schmitt trigger 1.65V~5.5V 5.9ns@5V,50pF 1uA 1 SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

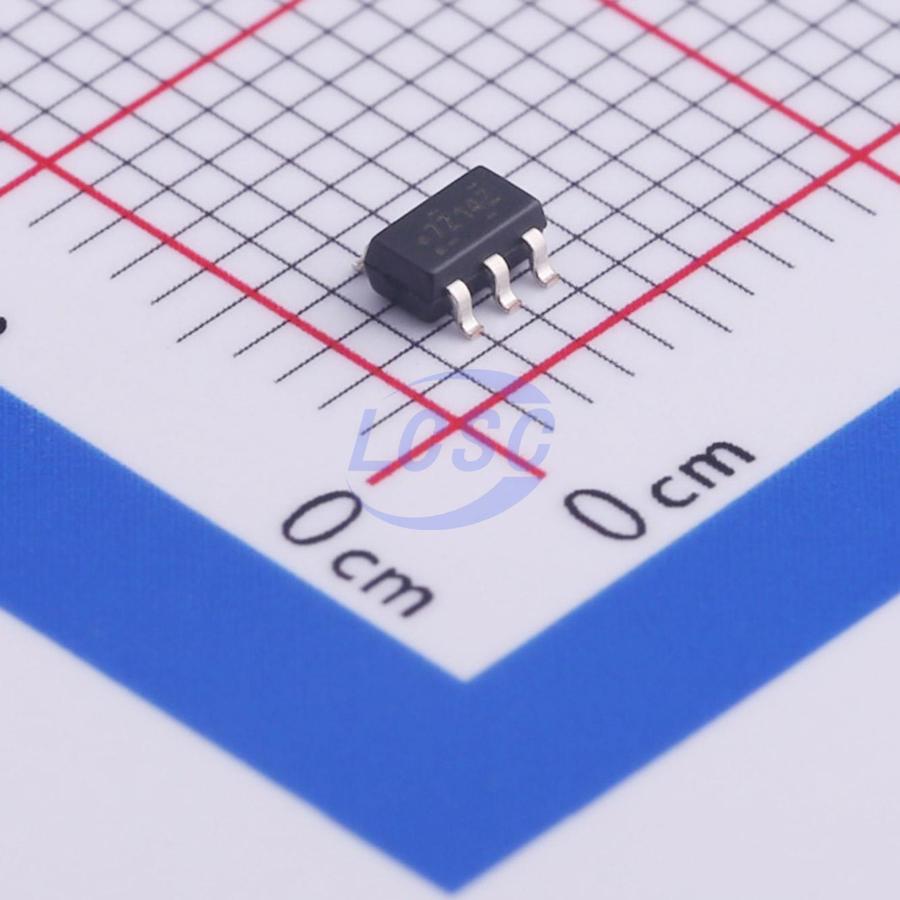

TinyLogic UHs Inverter with Schmitt Trigger Input

Manufacturer: onsemi
Manufacturer part #: NC7SZ14M5X
Store part #: C457616
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,280 in stock

#C457616

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹11.25	₹112.50
100+	₹8.81	₹881.00
300+	₹7.59	₹2,277.00
3,000+	₹6.48	₹19,440.00
6,000+	₹5.76	₹34,560.00
9,000+	₹5.38	₹48,420.00

Quantity (min 10, multiples of 10)

10 × ₹11.25

₹112.50

excl. GST

₹132.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NC7SZ14M5X

₹112.50 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Logic Family: 7SZ
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;240mV;300mV;400mV;550mV
Propagation Delay: 5.9ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+85℃
Input Logic Level - Low: 200mV~1.2V
Input Logic Level - High: 1.4V~3.6V
Output Logic Level - High: 1.55V;1.7V;2.2V;2.9V;4.4V;1.29V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 1uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

The NC7SZ14 is a single inverter with Schmitt trigger input from the Ultra- High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra- high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and outputs are high- impedance when VCC is 0V. Inputs tolerate voltages up to 5.5V independent of VCC operating voltage.

Key features

Ultra- High Speed: tpD 3.7 ns (Typical) into 50 pF at 5V VCC
High Output Drive: ±24mA at 3V VCC
Broad VCC Operating Range: 1.65V to 5.5V
Matches Performance of LCX when Operated at 3.3V VCC
Power Down High Impedance Inputs / Outputs
Over- Voltage Tolerance Inputs Facilitate 5V to 3V Translation
Proprietary Noise / EMI Reduction Circuitry
Ultra- Small MicroPak™ Packages
Space- Saving SC- 74A and SC- 88A Packages
These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS Compliant
