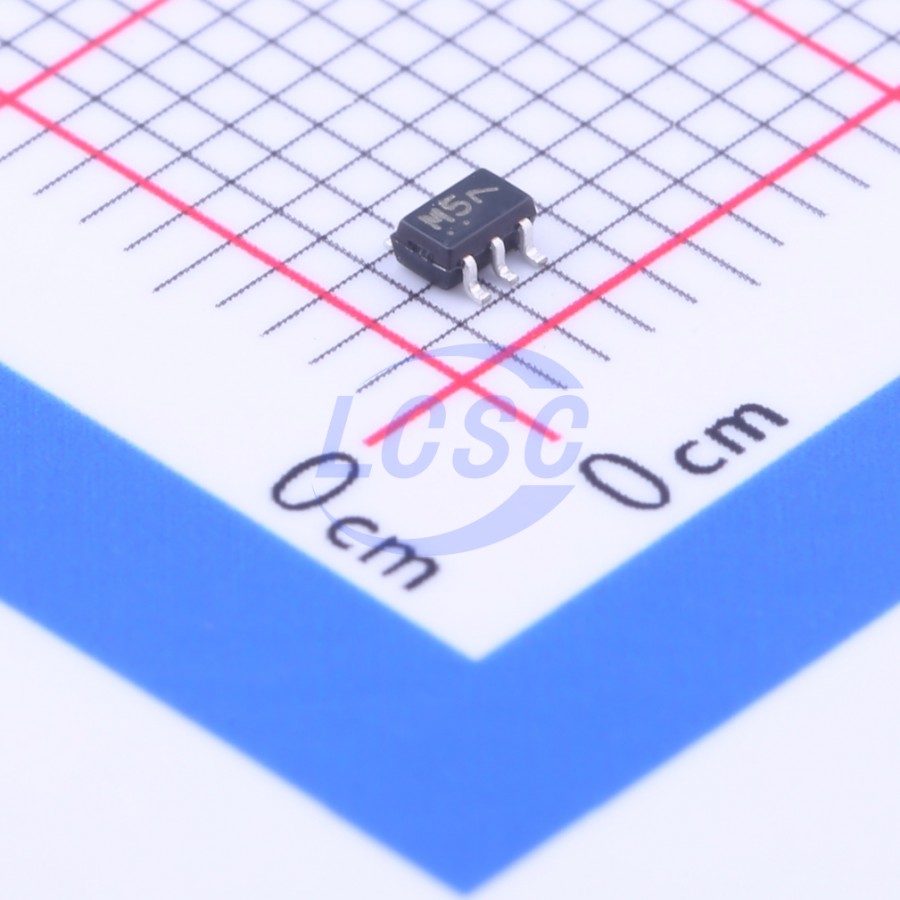

NL27WZ04DFT2G

Push-pull 1.65V~5.5V 3.6ns@5V,50pF 1uA 2 SC-70-6(SOT-363) Gates and Inverters RoHS

SC-70-6(SOT-363)ROHS3 CompliantActive

Dual Inverter

Manufacturer: onsemi
Manufacturer part #: NL27WZ04DFT2G
Store part #: C154778
Package / case: SC-70-6(SOT-363)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18,460 in stock

#C154778

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.22	₹92.20
100+	₹7.21	₹721.00
300+	₹6.22	₹1,866.00
3,000+	₹5.46	₹16,380.00
6,000+	₹4.87	₹29,220.00
9,000+	₹4.56	₹41,040.00

Quantity (min 10, multiples of 10)

10 × ₹9.22

₹92.20

excl. GST

₹108.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NL27WZ04DFT2G

₹92.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Logic Family: 27WZ
Input Type: Push-pull
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;240mV;300mV;400mV;550mV
Propagation Delay: 3.6ns@5V,50pF
Features: Power shutdown protection
Operating Temperature: -55℃~+125℃
Output Logic Level - High: 1.29V;1.9V;2.2V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 32mA
Number of Channels: 2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.05 g

Overview

The NL27WZ04 is a high performance dual inverter operating from a 1.65 V to 5.5 V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance.

Key features

Extremely High Speed: tPD 2.0 ns (typical) at VCC = 5 V
Designed for 1.65 V to 5.5 V VCC Operation
Over Voltage Tolerant Inputs and Outputs
LVTTL Compatible − Interface Capability with 5 V TTL Logic with VCC = 3 V
LVCMOS Compatible
24 mA Balanced Output Sink and Source Capability
Near Zero Static Supply Current Substantially Reduces System Power Requirements
Replacement for NC7W04
Chip Complexity: FET = 72; Equivalent Gate = 18
NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
These Devices are Pb−Free and are RoHS Compliant
