onsemiDatasheet (PDF)

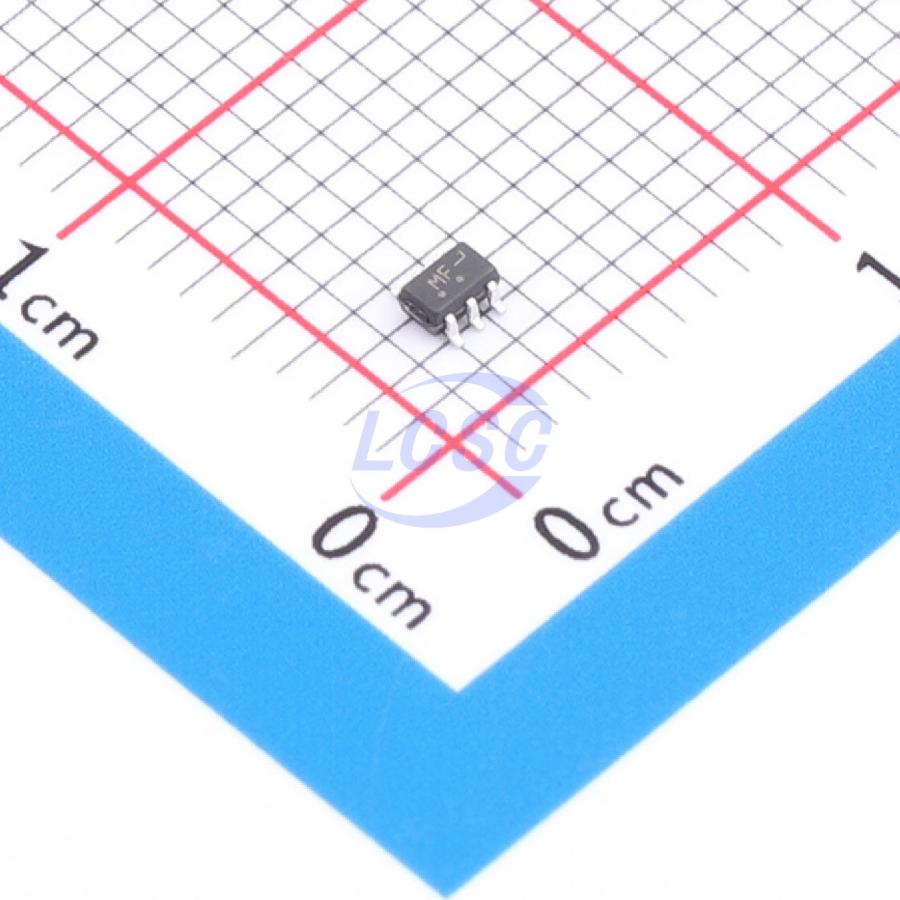

NL27WZ06DFT2G
StandardCMOS 1.65V~5.5V 3ns@5V,50pF 1uA 2 SC-88 Gates and Inverters RoHS
SC-88ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NL27WZ06DFT2G
- Store part #
- C223577
- Package / case
- SC-88
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
660 in stock
#C223577
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.55 | ₹67.75 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.47 | ₹1,420.50 |
| 500+ | ₹8.45 | ₹4,225.00 |
| 3,000+ | ₹7.63 | ₹22,890.00 |
| 6,000+ | ₹7.22 | ₹43,320.00 |
5 × ₹13.55
₹67.75
excl. GST
₹79.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL27WZ06DFT2G
₹67.75 for 5 + GST
Specifications
- output type
- Open-drain
- Input Type
- StandardCMOS
- Logic Family
- 27WZ
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Propagation Delay
- 3ns@5V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -55℃~+125℃
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
The NL27WZ06 is a high performance dual inverter with open drain outputs operating from a 1.65 to 5.5 V supply.
Key features
- Designed for 1.65 V to 5.5 V VCC Operation
- 2.1 ns tPD at VCC = 5 V (Typ)
- Inputs/Outputs Overvoltage Tolerant up to 5.5 V
- IOFF Supports Partial Power Down Protection
- Sink 24 mA at 3.0 V
- Available in SC−88, SC−74 and UDFN6 Packages
- Chip Complexity < 100 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC2G06DCKR#C105252TI · SOT-363-6 | TI | SOT-363-6 | 6,500 | ₹21.15 · 6,500 in stock | View |
 | SN74LVC2G06MDCKREP#C2872742TI · SC-70-6 | TI | SC-70-6 | 10 | ₹357.59 · 10 in stock | View |
 | 74LVC2G06GW,125#C548560Nexperia · TSSOP-6-1.3mm | Nexperia | TSSOP-6-1.3mm | On request | ₹18.51 · 0 in stock | View |
