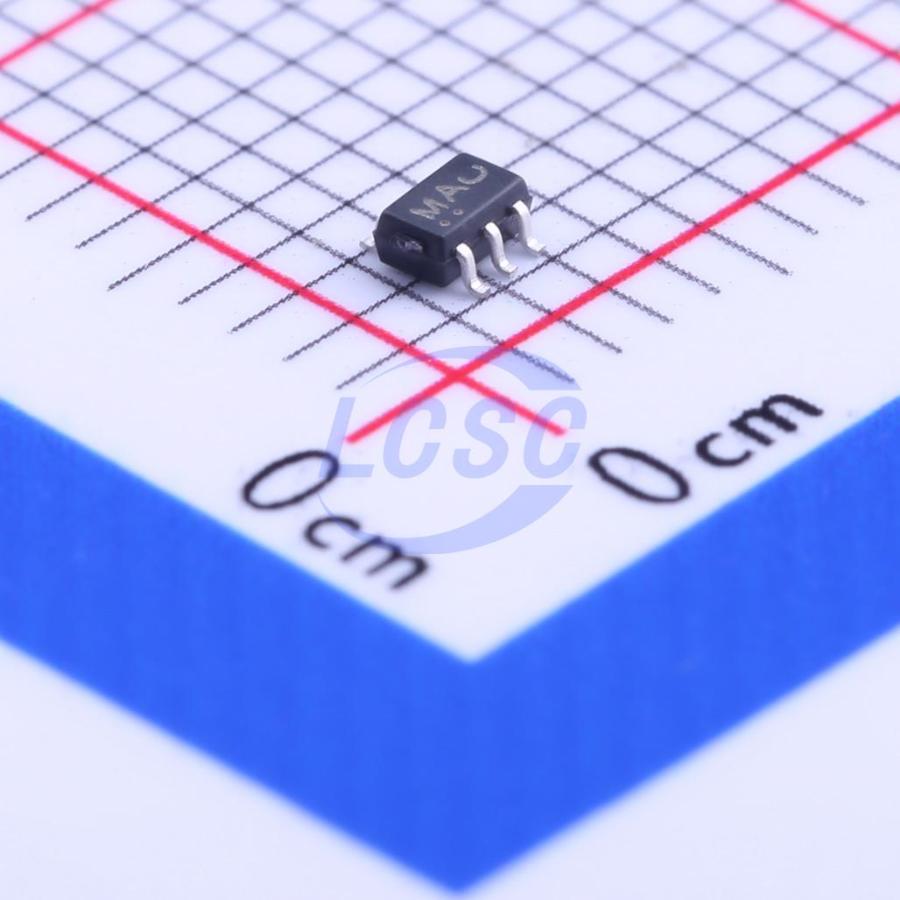

NL27WZ14DFT2G
Schmitt trigger 1.65V~5.5V 4.9ns@5V,50pF 1uA 2 SC-70-6(SOT-363) Gates and Inverters RoHS
SC-70-6(SOT-363)ROHS3 CompliantActive
Dual Schmitt-Trigger Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- NL27WZ14DFT2G
- Store part #
- C89316
- Package / case
- SC-70-6(SOT-363)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,970 in stock
#C89316
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.26 | ₹92.60 |
| 100+ | ₹7.34 | ₹734.00 |
| 300+ | ₹6.38 | ₹1,914.00 |
| 3,000+ | ₹5.16 | ₹15,480.00 |
| 6,000+ | ₹4.58 | ₹27,480.00 |
| 9,000+ | ₹4.30 | ₹38,700.00 |
10 × ₹9.26
₹92.60
excl. GST
₹109.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL27WZ14DFT2G
₹92.60 for 10 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 27WZ
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Propagation Delay
- 4.9ns@5V,50pF
- Features
- Noise suppression function;Power shutdown protection
- Input Logic Level - Low
- 400mV~1.2V
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - High
- 1.8V~3.6V
- Output Logic Level - High
- 1.29V;1.9V;2.2V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The NL27WZ14 is a high performance dual inverter with Schmitt−Trigger inputs operating from a 1.65 to 5.5 V supply. Pin configuration and function are the same as the NL27WZ04, but the inputs have hysteresis and, with its Schmitt trigger function, the NL27WZ14 can be used as a line receiver which will receive slow input signals. The NL27WZ14 is capable of transforming slowly changing input signals into sharply defined, jitter−free output signals. In addition, it has a greater noise margin than conventional inverters. The NL27WZ14 has hysteresis between the positive−going and the negative−going input thresholds (typically 1 V) which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations.
Key features
- Designed for 1.65 V to 5.5 V VCC Operation
- Over Voltage Tolerant Inputs and Outputs
- LVTTL Compatible − Interface Capability with 5 V TTL Logic with VCC = 3 V
- LVCMOS Compatible
- 24 mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- Current Drive Capability is 24 mA at the Outputs
- Chip Complexity: FET = 72
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
