onsemiDatasheet (PDF)

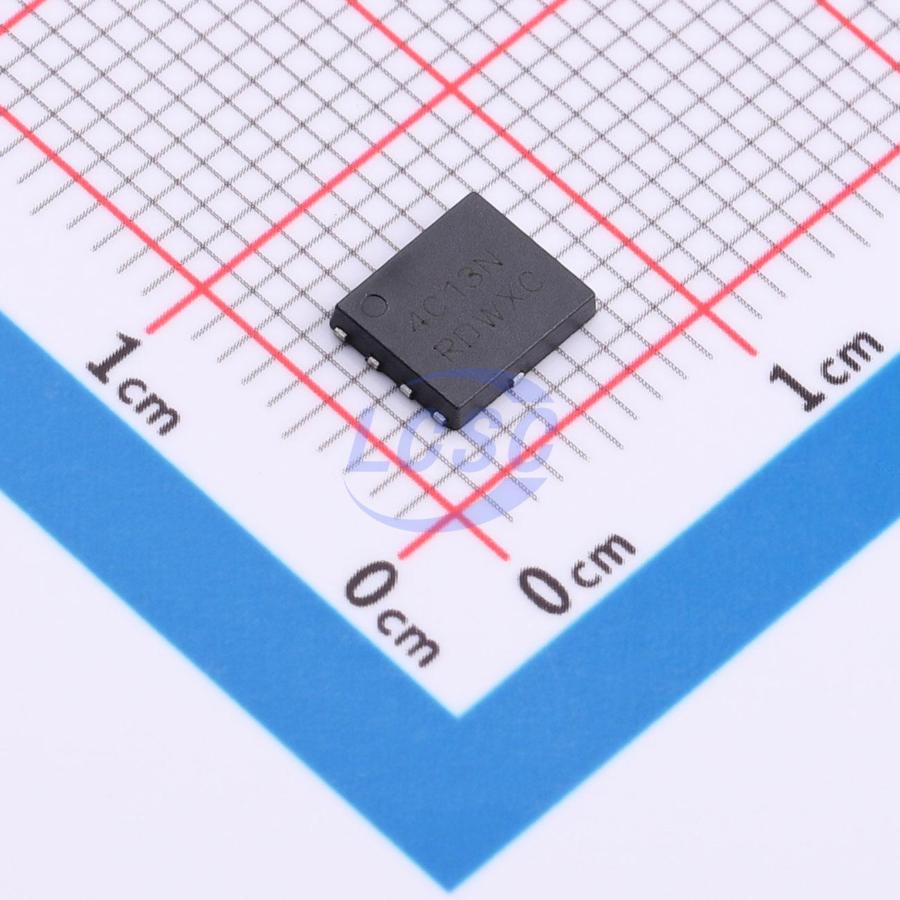

NTMFS4C13NT1G
21.6W 30V 38A 7.3mΩ@10V 1 N-channel N-Channel SO-8-FL-5.8mm Single FETs, MOSFETs RoHS
SO-8-FL-5.8mmROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS4C13NT1G
- Store part #
- C900290
- Package / case
- SO-8-FL-5.8mm
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C900290
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.97 | ₹220.97 |
| 10+ | ₹217.95 | ₹2,179.50 |
| 30+ | ₹215.81 | ₹6,474.30 |
| 100+ | ₹213.88 | ₹21,388.00 |
1 × ₹220.97
₹220.97
excl. GST
₹260.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS4C13NT1G
₹220.97 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 443pF
- Ciss-Input Capacitance
- 770pF
- Pd - Power Dissipation
- 21.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 38A
- Reverse Transfer Capacitance (Crss)
- 127pF
- RDS(on)
- 7.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.8nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
Applications
- CPU Power Supply - DC-DC Converter
Key features
- Low on-resistance R<sub>DS(on)</sub> to minimize conduction losses
- Low capacitance to minimize drive losses
- Optimized gate charge to minimize switching losses
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS4C10NT1G#C96242onsemi · SO-8FL | onsemi | SO-8FL | 175 | ₹118.46 · 175 in stock | View |
 | NVMFS5C673NLAFT1G#C606161onsemi · SO-8FL | onsemi | SO-8FL | 4 | ₹142.95 · 4 in stock | View |
 | FDMS86322#C606111onsemi · Power56-8 | onsemi | Power56-8 | 154 | ₹245.96 · 154 in stock | View |
 | CSD18504Q5A#C78118TI · SON-8(5x6) | TI | SON-8(5x6) | 647 | ₹193.17 · 647 in stock | View |
 | S80N03F#C19100367HL · PDFN5x6-8L | HL | PDFN5x6-8L | 4,480 | ₹15.25 · 4,480 in stock | View |
