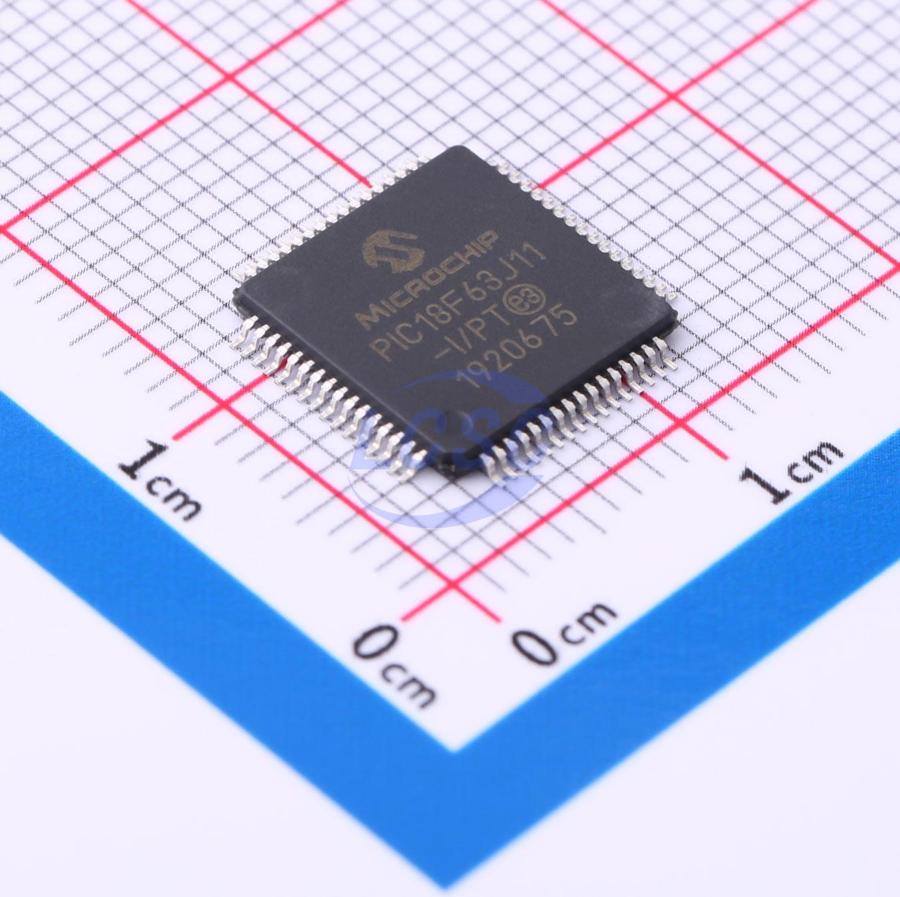

PIC18F63J11-I/PT

Key features

• Power-Managed modes: Run, Idle, Sleep
• Run Current Down to 7 μA, Typical
• Idle Current Down to 2.5 μA, Typical
• Sleep Current Down to 100 nA, Typical
• Fast INTOSC Start-up from Sleep, 1 μs Typical
• Two-Speed Oscillator Start-up Reduces Crystal Stabilization Wait Time
• High-Current Sink/Source 25 mA/25 mA (PORTB and PORTC)
• Up to Four External Interrupts
• Four 8-Bit/16-Bit Timer/Counter modules
• Real-Time Clock (RTC) Software module: Configurable 24-hour clock, calendar, automatic 100-year or 12800-year day of week calculator using Timer1
• Two Capture/Compare/PWM (CCP) modules:
• Capture is 16-bit, max. resolution 6.25 ns (TCY/16)
• Compare is 16-bit, max. resolution 100 ns (TCY)
• PWM output: PWM resolution is up to 10-bit
• Master Synchronous Serial Port (MSSP) module with Two Modes of Operation:
• 3-wire/4-wire SPI (supports all 4 SPI modes)
• I²C Master and Slave mode
• One Addressable USART module
• One Enhanced Addressable USART module:
• Supports LIN/J2602
• Auto-wake-up on Start bit and Break character
• Auto-Baud Detect (ABD)
• 10-Bit, up to 12-Channel A/D Converter:
• Auto-acquisition
• Conversion available during Sleep
• Two Analog Comparators
• Programmable Reference Voltage for Comparators
• Address Capability of up to 2 Mbytes (PIC18F8XJ11 only)
• 8-Bit or 16-Bit Interface (PIC18F8XJ11 only)
• 12-Bit, 16-Bit and 20-Bit Addressing modes (PIC18F8XJ11 only)
• Two Crystal modes, 4 - 25 MHz
• Two External Clock modes, up to 40 MHz
• 4x Phase Lock Loop (PLL)
• Internal Oscillator Block: 8 user-selectable freque
