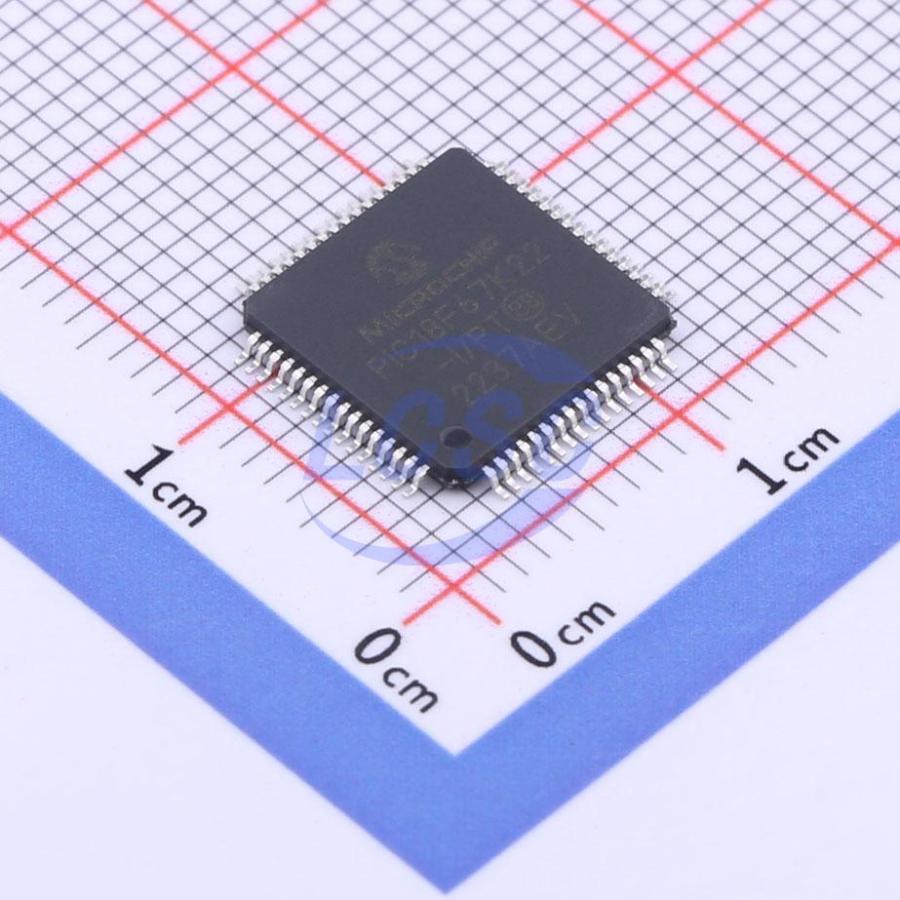

PIC18F67K22-I/PT

Key features

• Low-Power Features:
• Power Management Modes:
• Run: CPU on, peripherals on
• Idle: CPU off, peripherals on
• Sleep: CPU off, peripherals off
• Two-Speed Oscillator Start-up
• Fail-Safe Clock Monitor
• Power-Saving Peripheral Module Disable (PMD)
• Ultra Low-Power Wake-up
• Fast Wake-up, typical 1μs
• Low-Power WDT, typical 300 nA
• Ultra-Low 50 nA Input Leakage
• Run Mode current as low as typical 5.5μA
• Idle Mode current as low as typical 1.7μA
• Sleep Mode current as low as typical 20 nA
• RTCC current as low as typical 700 nA
• Special Microcontroller Features:
• Operating Voltage Range: 1.8V to 5.5V
• On-Chip 3.3V Regulator
• Operating Speed up to 64 MHz
• Up to 128 Kbytes On-Chip Flash Program Memory
• 1,024 Bytes Data EEPROM
• 4K×8 General Purpose Registers (SRAM)
• Flash Program Memory: minimum 10,000 Erase/Write Cycles
• Data EEPROM Memory: typical 1,000,000 Erase/Write Cycles
• Flash Retention: minimum 40 years
• Three Internal Oscillators: LF - INTRC (31 kHz), MF - INTOSC (500 kHz), and HF - INTOSC (16 MHz)
• Self-Programming under Software Control
• Interrupt Priority
• 8×8 Single-Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
• Programmable period from 4 ms to 4,194s (approx. 70 minutes)
• In-Circuit Serial Programming™ (ICSP™) via Two Pins
• In-Circuit Debugging via Two Pins
• Programmable:
• BOR
• LVD
