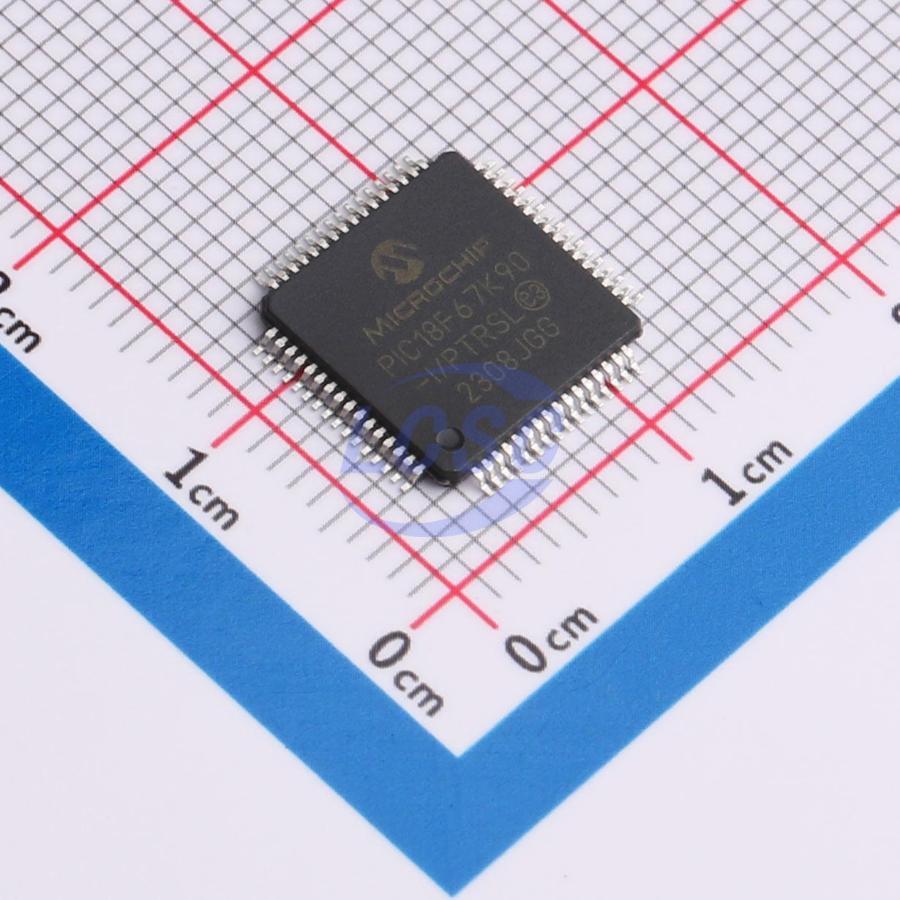

PIC18F67K90-I/PTRSL

Key features

• Power-Managed modes:
• Run: CPU on, peripherals on
• Idle: CPU off, peripherals on
• Sleep: CPU off, peripherals off
• Two-Speed Oscillator Start-up
• Fail-Safe Clock Monitor
• Power-Saving Peripheral Module Disable (PMD)
• Ultra Low-Power Wake-up
• Fast Wake-up, 1 μs Typical
• Low-Power WDT, 300 nA Typical
• Ultra Low 50 nA Input Leakage
• Run mode Currents Down to 5.5 μA, Typical
• Idle mode Currents Down to 1.7 μA, Typical
• Sleep mode Current Down to Very Low 20 nA, Typical
• RTCC Current Down to Very Low 700 nA, Typical
• LCD Current Down to Very Low 300 nA, Typical
• Direct LCD Panel Drive Capability:
• Can drive LCD panel while in Sleep mode
• Up to 48 Segments and 192 Pixels, Software-Selectable
• Programmable LCD Timing module:
• Multiple LCD timing sources available
• Up to four commons: static, 1/2, 1/3 or 1/4 multiplex
• Bias configuration: Static, 1/2 or 1/3
• Low-Power Resistor Bias Network for LCD
• Ten or Eight CCP/ECCP modules:
• Seven Capture/Compare/PWM (CCP) modules
• Three Enhanced Capture/Compare/PWM (ECCP) modules
• Eleven 8/16-Bit Timer/Counter modules:
• Timer0 – 8/16-bit timer/counter with 8-bit programmable prescaler
• Timer1, 3, 5, 7 – 16-bit timer/counter
• Timer2, 4, 6, 8, 10, 12 – 8-bit timer/counter
• Three Analog Comparators
• Configurable Reference Clock Output
• Hardware Real-Time Clock and Calendar (RTCC) module with Clock, Calendar and Alarm Function
