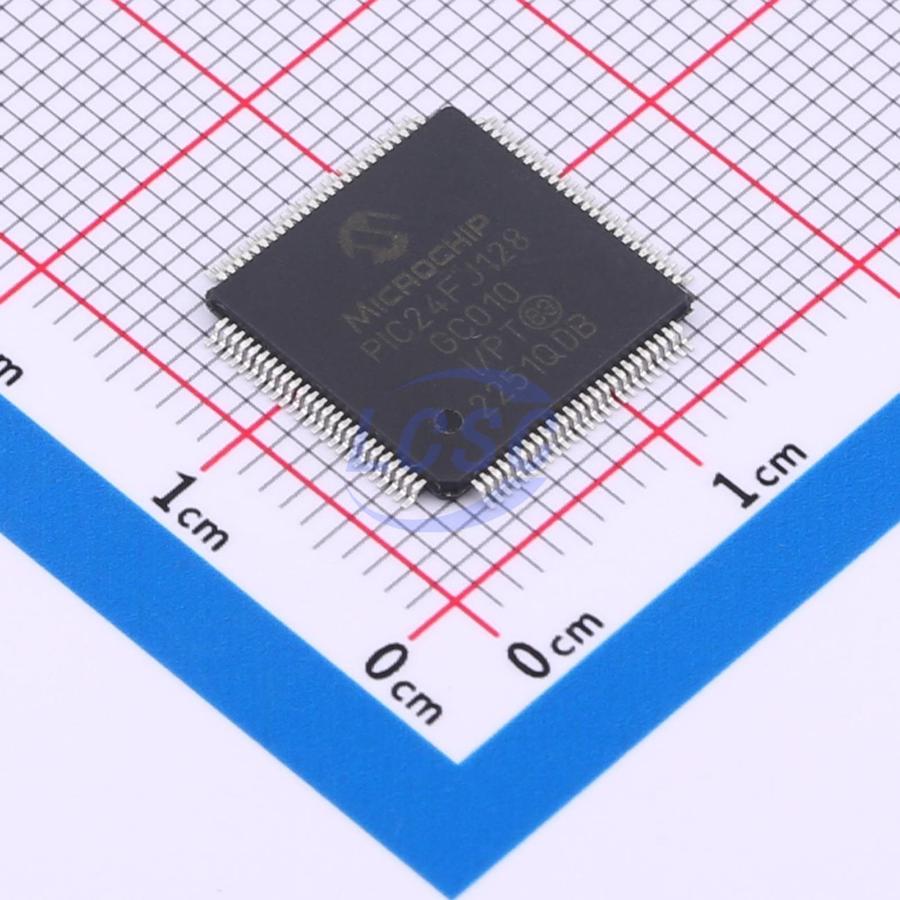

PIC24FJ128GC010-I/PT

Key features

• 12-Bit, up to 50-Channel, High-Speed, Pipeline Analog-to-Digital Converter (A/D):
• Conversion rates up to 10 Msps
• Compatibility features for low conversion rates
• Flexible operating modes with auto-accumulate, Threshold Detect and channel scan using sample lists
• Conversion available during Sleep and Idle
• 16-Bit Sigma-Delta Analog-to-Digital Converter (A/D):
• Programmable data rate with dithering option and adjustable oversampling ratios
• Two differential channels
• Configurable input gain stage
• Two 10-Bit Digital-to-Analog Converters (DAC):
• Fast settling time supports 1 Msps update rate
• Two Rail-to-Rail, Input/Output, General Purpose Operational Amplifiers:
• 2.5 MHz gain bandwidth product (typical)
• Flexible input multiplexing options
• Optional Comparator mode
• Three Rail-to-Rail, Enhanced Analog Comparators with Programmable Input/Output Configuration
• Three On-Chip Programmable Voltage References
• Charge Time Measurement Unit (CTMU):
• Used for capacitive touch sensing, up to 50 channels
• Time measurement down to 100 ps resolution
• Operation in Sleep mode
• Multiple Power Management Options for Extreme Power Reduction:
• VBAT allows for lowest power consumption on backup battery (with or without RTCC)
• Deep Sleep allows near total power-down, with the ability to wake-up on internal or external triggers
• Full RAM and state retention in select Deep Sleep and VBAT modes
• Sleep and Idle modes selectively shut down peripherals and/or core for substantial power reduction and fast wake-up
• Doze mode allows CPU to run at a lower clock speed than peripherals
• Alternate Clock modes allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction
• Extreme Low-Power Current Consumption for Deep Sleep:
• WDT: 270 nA @3.3V, typical
• RTCC: 350 nA @ 32 kHz, 3.3V, typical
• Deep Sleep current, 75 nA, 3.3V, typical
• USB v2.0 On-The-Go (OTG) Compliant
• USB Device mode Operation from FRC Oscillator – No Crystal Oscillator Required
• Dual Role Capable – Can Act as Either Host or Peripheral
• Low-Speed (1.5 Mb/s) and Full-Speed (12 Mb/s) USB Operation in Host mode
• Full-Speed USB Operation in Device mode
• Low Jitter PLL for USB
• Supports up to 32 Endpoints (16 bidirectional):
• USB module can use any RAM location on the device as USB endpoint buffers
• On-Chip USB Transceiver with Interface for Off-Chip USB Transceiver
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• On-Chip Pull-up and Pull-Down Resistors
• LCD Display Controller:
• Up to 59 segments by 8 commons
• Internal charge pump and low-power, internal resistor biasing
• Operation in Sleep mode
• Up to Five External Interrupt Sources
• Peripheral Pin Select (PPS); Allows Independent I/O Mapping of Many Peripherals
• Five 16-Bit Timers/Counters with Prescaler:
• Can be paired as 32-bit timers/counters
• Six-Channel DMA Supports All Peripheral modules:
• Minimizes CPU overhead, increases data throughput and lowers power consumption
• Nine Input Capture modules, each with a Dedicated 16-Bit Timer
• Nine Output Compare/PWM modules, each with a Dedicated 16-Bit Timer
• Enhanced Parallel Master/Slave Port (EPMP/EPSP)
• Hardware Real-Time Clock and Calendar (RTCC):
• Run, Sleep, Deep Sleep and VBAT modes
• Two 3-Wire/4-Wire SPI modules (support 4 Frame modes) with 8-Level FIFO Buffer
• Two I²C modules Support Multi-Master/Slave mode and 7-Bit/10-Bit Addressing
• Four UART modules:
• Support RS-485, RS-232 and LIN/J2602
• On-chip hardware encoder/decoder for IrDA
• Auto-wake-up on Auto-Baud Detect (ABD)
• 4-level deep FIFO buffer
• Programmable, 32-Bit Cyclic Redundancy Check (CRC) Generator
• Digital Signal Modulator (DSM) Provides On-Chip FSK and PSK Modulation for a Digital Signal Stream
• High-Current Sink/Source (18 mA/18 mA) on All I/O Pin
• Configurable Open-Drain Outputs on Digital I/O Pins
• 5.5V Tolerant Inputs on Select Pins
• Modified Harvard Architecture
• Up to 16 MIPS Operation @32 MHz
• C Compiler Optimized Instruction Set Architecture (ISA)
• 8 MHz Internal Oscillator:
• 96 MHz PLL option for USB clocking
• Multiple clock divide options
• Run-time self-calibration capability for maintaining better than ±0.20% accuracy
• Fast start-up
• 17-Bit × 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16 × 16-Bit Working Register Array
• Two Address Generation Units (AGUs) for Separate Read and Write Addressing of Data Memory
• Supply Voltage Range of 2.0V to 3.6V
• Two On-Chip Voltage Regulators (1.8V and 1.2V) for Regular and eXtreme Low-Power Operation
• 20,000 Erase/Write Cycle Endurance Flash Program Memory, Typical
• Flash Data Retention: 20 Years Minimum
• Self-Programmable under Software Control
• Programmable Reference Clock Output
• In-Circuit Serial Programming (ICSP) and In-Circuit Emulation (ICE) via 2 Pins
• JTAG Boundary Scan Support
• Fail-Safe Clock Monitor Operation:
• Detects clock failure and switches to on-chip, low-power RC Oscillator
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Separate Brown-out Reset (BOR) and Deep Sleep Brown-out Reset (DSBOR) Circuits
• Programmable High/Low-Voltage Detect (HLVD)
• Flexible Watchdog Timer (WDT) with its Own RC Oscillator for Reliable Operation
• Standard and Ultra Low-Power Watchdog Timers for Reliable Operation in Standard and Deep Sleep modes
