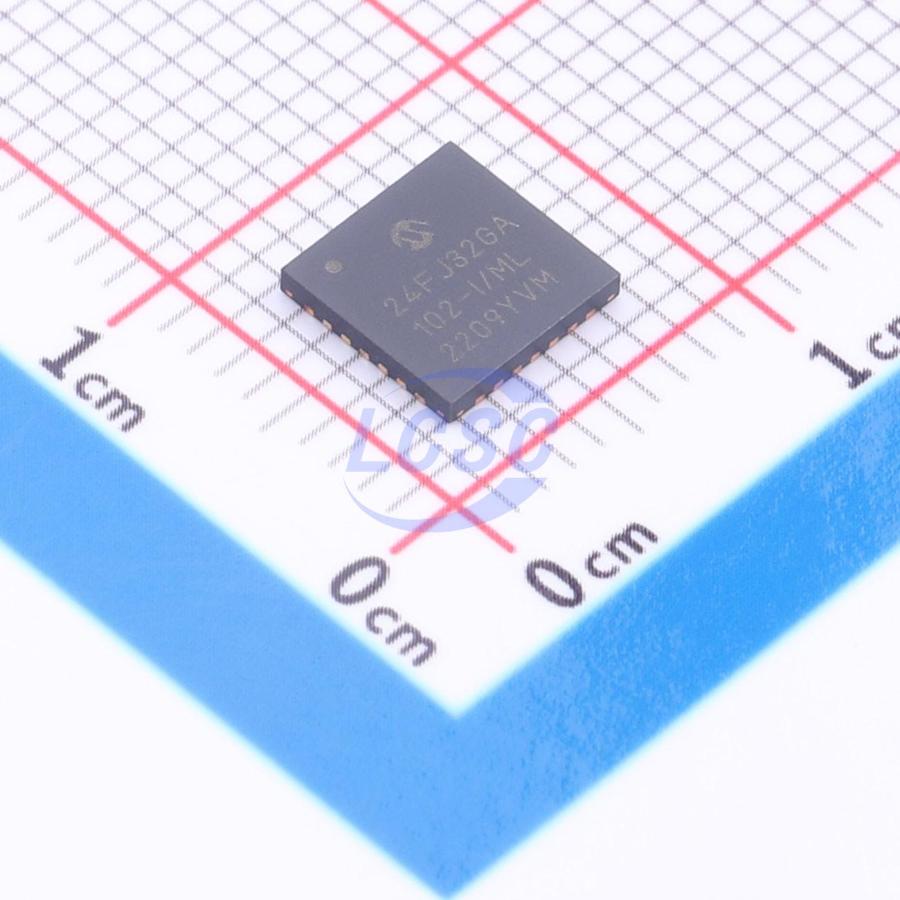

PIC24FJ32GA102-I/ML

28/44-Pin, 16-Bit General Purpose Flash Microcontrollers with nanoWatt XLP Technology

Key features

• Selectable Power Management modes with nanoWatt XLP Technology for Extremely Low Power
• Deep Sleep mode allows near total power-down (20 nA typical and 500 nA with RTCC or WDT), along with the ability to wake-up on external triggers, or self-wake on programmable WDT or RTCC alarm
• Extreme low-power DSBOR for Deep Sleep, LPBOR for all other modes
• Sleep mode shuts down peripherals and core for substantial power reduction, fast wake-up
• Idle mode shuts down the CPU and peripherals for significant power reduction, down to 4.5 μA typical
• Doze mode enables CPU clock to run slower than peripherals
• Alternate Clock modes allow on-the-fly switching to a lower clock speed for selective power reduction during Run mode, down to 15 μA typical
• Modified Harvard Architecture
• Up to 16 MIPS Operation @ 32 MHz
• 8 MHz Internal Oscillator with: - 4x PLL option Multiple divide options
• 17-Bit x 17-Bit Single-Cycle Hardware Fractional integer Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16 x 16-Bit Working Register Array
• C Compiler Optimized Instruction Set Architecture: 76 base instructions - Flexible addressing modes
• Linear Program Memory Addressing, up to 12 Mbytes
• Linear Data Memory Addressing, up to 64 Kbytes
• Two Address Generation Units for Separate Read and Write Addressing of Data Memory
• Operating Voltage Range of 2.0V to 3.6V
• Self-Reprogrammable under Software Control
• 5.5V Tolerant Input (digital pins only)
• High-Current Sink/Source (18 mA/18 mA) on All I/O pins
• Flash Program Memory: 10,000 erase/write cyc
