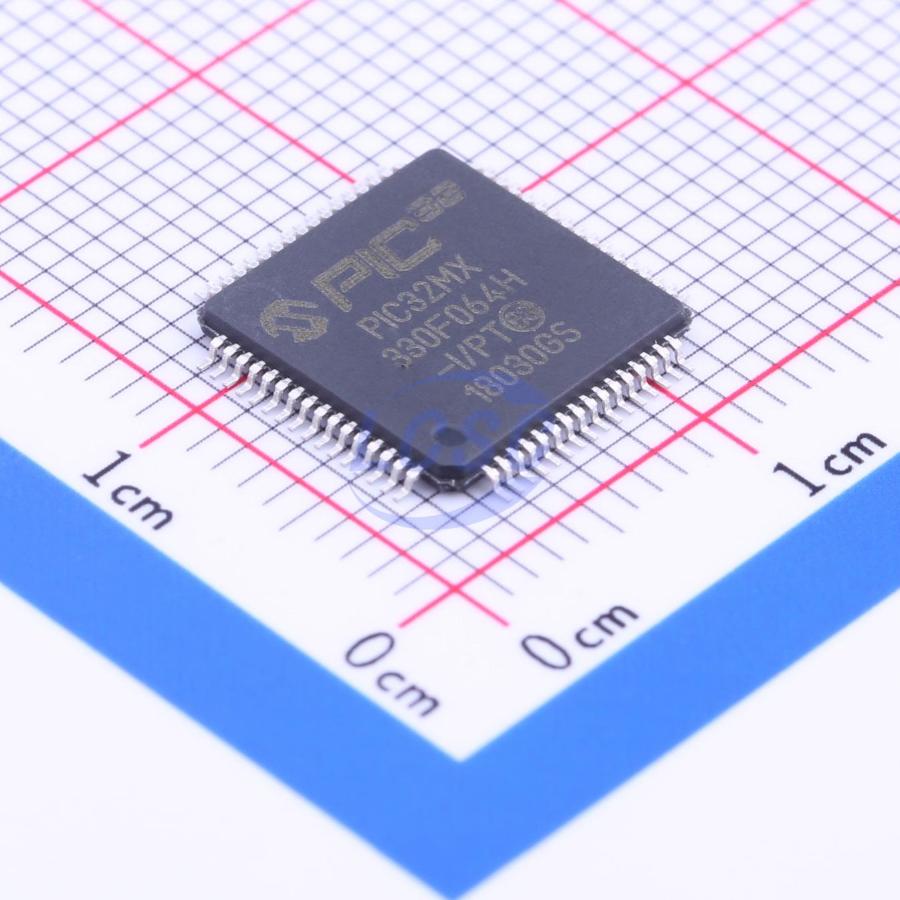

PIC32MX330F064H-I/PT

Key features

• Operating Conditions: 2.3V to 3.6V
• -40℃ to +105℃ (DC to 80 MHz)
• -40℃ to +85℃ (DC to 100 MHz)
• 0℃ to +70℃ (DC to 120 MHz)
• Core: 120 MHz/150 DMIPS MIPS32 M4K
• MIPS16e mode for up to 40% smaller code size
• Code-efficient (C and Assembly) architecture
• Single-cycle (MAC) 32x16 and two-cycle 32x32 multiply
• 0.9% internal oscillator
• Programmable PLLs and oscillator clock sources
• Fail-Safe Clock Monitor (FSCM)
• Independent Watchdog Timer
• Fast wake-up and start-up
• Low-power management modes (Sleep and Idle)
• Integrated Power-on Reset, Brown-out Reset, and High Voltage Detect
• 0.5 mA/MHz dynamic current (typical)
• 50 μA IPD current (typical)
• External graphics interface with up to 34 PMP pins
• Audio data communication: I2s, LJ, RJ, USB
• Audio data control interface: SPI and I2C
• Audio data master clock:
• Generation of fractional clock frequencies
• Can be synchronized with USB clock
• Can be tuned in run-time
• Charge Time Measurement Unit (CTMU):
• Supports mTouch capacitive touch sensing
• Provides high-resolution time measurement (1 ns)
• ADC Module:
• 10-bit 1 Msps rate with one Sample and Hold (S&H)
• Up to 28 analog inputs
• Can operate during Sleep mode
• Flexible and independent ADC trigger sources
• On-chip temperature measurement capability
• Comparators:
• Two dual-input Comparator modules
• Programmable references with 32 voltage points
• Five General Purpose Timers:
• Five 16-bit and up to two 32-bit Timers/Counters
• Five Output Compare (OC) modules
• Five Input Capture (IC) modules
• Peripheral Pin Select (PPS) to allow function remap
• Real-Time Clock and Calendar (RTCC) module
• USB 2.0-compliant Full-speed OTG controller
• Up to five UART modules (20 Mbps):
• LIN 2.1 protocols and PICD support
• Two 4-wire SPI modules (25 Mbps)
• Two I2C modules (up to 1 Mbaud) with SMBus support
• PPS to allow function remap
• Parallel Master Port (PMP)
• Four channels of hardware DMA with automatic data size detection
• 32-bit Programmable Cyclic Redundancy Check (CRC)
• Two additional channels dedicated to USB
• 15 mA or 12 mA source/sink for standard VOH/VOL and up to 22 mA for non-standard VOH1
• 5V-tolerant pins
• Selectable open drain, pull-ups, and pull-downs
• External interrupts on all I/O pins
• AEC-Q100 REVH (Grade 2 -40℃ to +105℃J) planned
• Class B Safety Library, IEC 60730
• In-circuit and in-application programming
• 4-wire MIPS Enhanced JTAG interface
• Unlimited program and six complex data breakpoints
• IEEE 1149.2-compatible (JTAG) boundary scan
