NexperiaDatasheet (PDF)

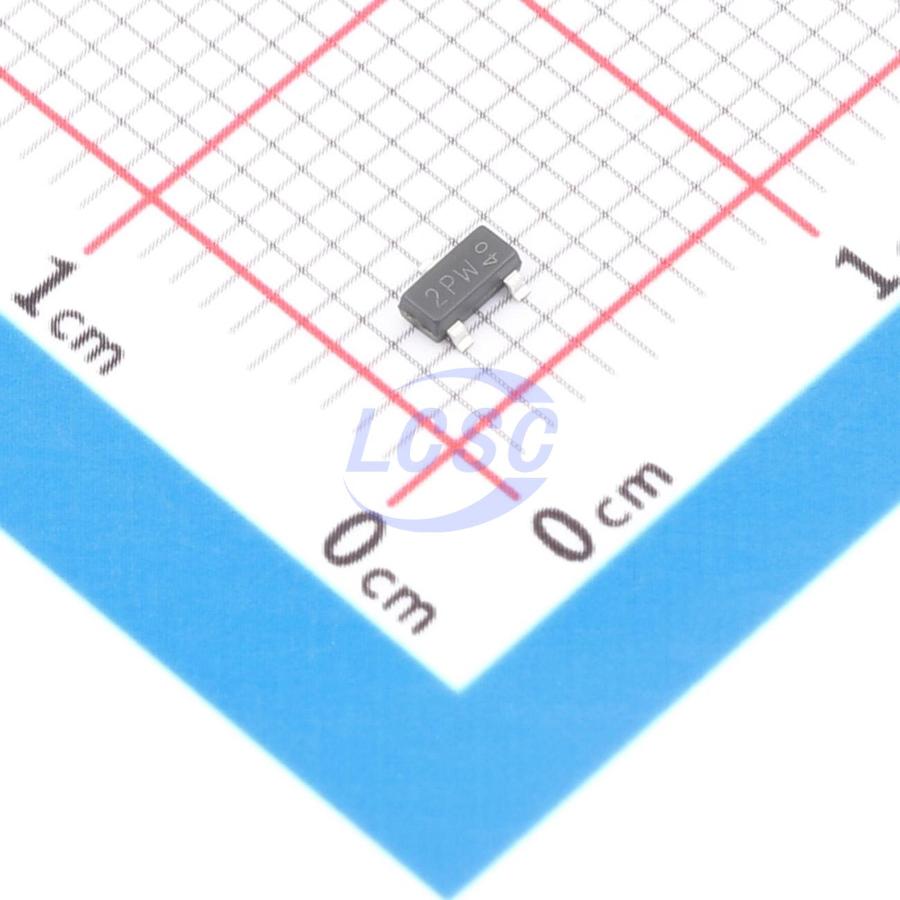

PMV74EPER
30V 3.4A 90mΩ@10V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs RoHS
SOT-23ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PMV74EPER
- Store part #
- C547267
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
475 in stock
#C547267
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.95 | ₹60.95 |
| 10+ | ₹47.95 | ₹479.50 |
| 30+ | ₹42.30 | ₹1,269.00 |
| 100+ | ₹35.14 | ₹3,514.00 |
| 500+ | ₹32.11 | ₹16,055.00 |
| 1,000+ | ₹30.15 | ₹30,150.00 |
1 × ₹60.95
₹60.95
excl. GST
₹71.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMV74EPER
₹60.95 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 60pF
- Ciss-Input Capacitance
- 356pF
- Pd - Power Dissipation
- 510mW;6.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 3.4A
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 90mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
P-channel enhancement-mode FET using trench MOSFET technology, in a compact SOT23 (TO-236AB) SMD plastic package.
Applications
- Relay driver - High-speed line driver - High-side load switch - Switching circuit
Key features
- Logic level compatible
- Ultra-fast switching speed
- Trench MOSFET technology
- ESD protection > 2 kV HBM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJA3405_R1_00001#C391632PANJIT · SOT-23 | PANJIT | SOT-23 | 13,510 | ₹11.50 · 13,510 in stock | View |
 | SQ2389CES-T1_GE3#C26443717VISHAY · SOT-23 | VISHAY | SOT-23 | 2,331 | ₹54.73 · 2,331 in stock | View |
 | SSM3J334R,LF#C396017TOSHIBA · SOT-23F | TOSHIBA | SOT-23F | 5,970 | ₹8.26 · 5,970 in stock | View |
 | DMP3099L-13#C412516DIODES · SOT-23 | DIODES | SOT-23 | 3,585 | ₹39.93 · 3,585 in stock | View |
 | SQ2389ES-T1_GE3#C142527VISHAY · SOT-23 | VISHAY | SOT-23 | 1,220 | ₹45.07 · 1,220 in stock | View |
