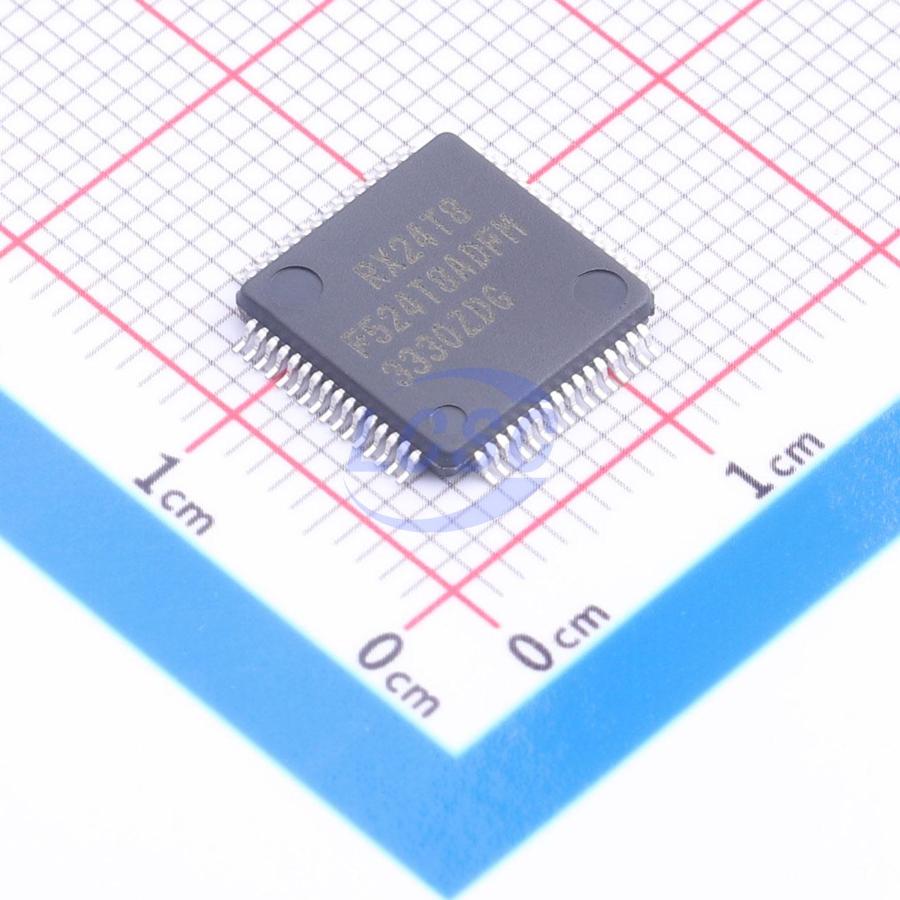

R5F524T8ADFM#11

80-MHz 32-bit RX MCUs, on-chip FPU, 153.6 DMIPS, power supply 5 V, 12-bit ADC (equipped with 3-channel synchronous S/H circuits, double data registers, operating amplifiers, comparator) 3 units, Simultaneous sampling up to ADC 5 channels, CAN, 80-MHz PWM (three-phase complementary output x 2 channels + single-phase complementary output x 4 channels or three-phase complementary x 3 channels + single-phase complementary x 1 channel)

Key features

• 32-bit RXv2 CPU core:
• Max. operating frequency: 80 MHz, Capable of 153.6 DMIPS in operation at 80 MHz
• Enhanced DSP: 32-bit multiply-accumulate and 16-bit multiply-subtract instructions supported
• Built-in FPU: 32-bit single-precision floating point (compliant to IEEE754)
• Divider (fastest instruction execution takes two CPU clock cycles)
• Fast interrupt
• CISC Harvard architecture with 5-stage pipeline
• Variable-length instructions, ultra-compact code
• On-chip debugging circuit
• Memory protection unit (MPU) supported
• Low power design and architecture:
• Operation from a single 2.7-V to 5.5-V supply
• Three low power consumption modes
• On-chip code flash memory:
• 512-/384-/256-/128-Kbyte capacities
• On-board or off-board user programming
• For instructions and operands
• Clock functions:
• Main clock oscillator frequency: 1 to 20 MHz
• External clock input frequency: Up to 20 MHz
• PLL circuit input: 4 MHz to 12.5 MHz
• On-chip low-speed oscillators, On-chip high-speed oscillators, dedicated on-chip oscillator for the IWDT
• Clock frequency accuracy measurement circuit (CAC)
• Independent watchdog timer:
• 15-kHz on-chip oscillator produces a dedicated clock signal to drive IWDT operation.
• Up to 6 communications channels:
• CAN (compliant with ISO11898-1), incorporating 16 message boxes (1 channel)
• SCI with many useful functions (3 channels): Asynchronous mode, clock synchronous mode, smart card interface mode, simplified SPI, simplified I²C, and extended serial mode.
• I²C bus interface: Transfer at up to 400 kbps, capable of SMBus operation (1 channel)
• RSPI capable of high speed connection, Transfer at up to 20 Mbps (1 channel)
• Up to 25 extended-function timers:
• 16-bit MTU3: 80 MHz operation, input capture, output compare, three-phase complementary PWMx2 channels output, CPU-efficient complementary PWM, phase counting mode (nine channels)
• 16-bit GPT: 80 MHz operation, input capture, output compare, PWM wave - form single - phase complementary x 4 channels output or three - phase x 1 channel + single - phase complementary x 1 channel output, comparator interlocking operation (count operation, PWM negate control) (4 channels)
• 8-bit TMRs (8 channels)
• 16-bit compare-match timers (4 channels)
• 12-bit A/D converter: 22 channels in 3 units:
• Incorporating sample-and-hold circuit 12 bits x 3 units (unit 0: 5 channels, unit 1: 5 channels, unit 2: 12 channels)
• Sampling time can be set for each channel
• Group scan priority control mode (3 levels)
• Self-diagnostic function and analog input disconnection detection assistance function (compliant to IEC60730)
• Input signal amplitude by the programmable gain amplifier (4 channels)
• ADC: 3-channel simultaneous sample-and-hold circuit (3 shunt method), double data register (1 shunt method), amplifier (4 channels), comparator (4 channels)
• 8-bit D/A converter: 2 channels
