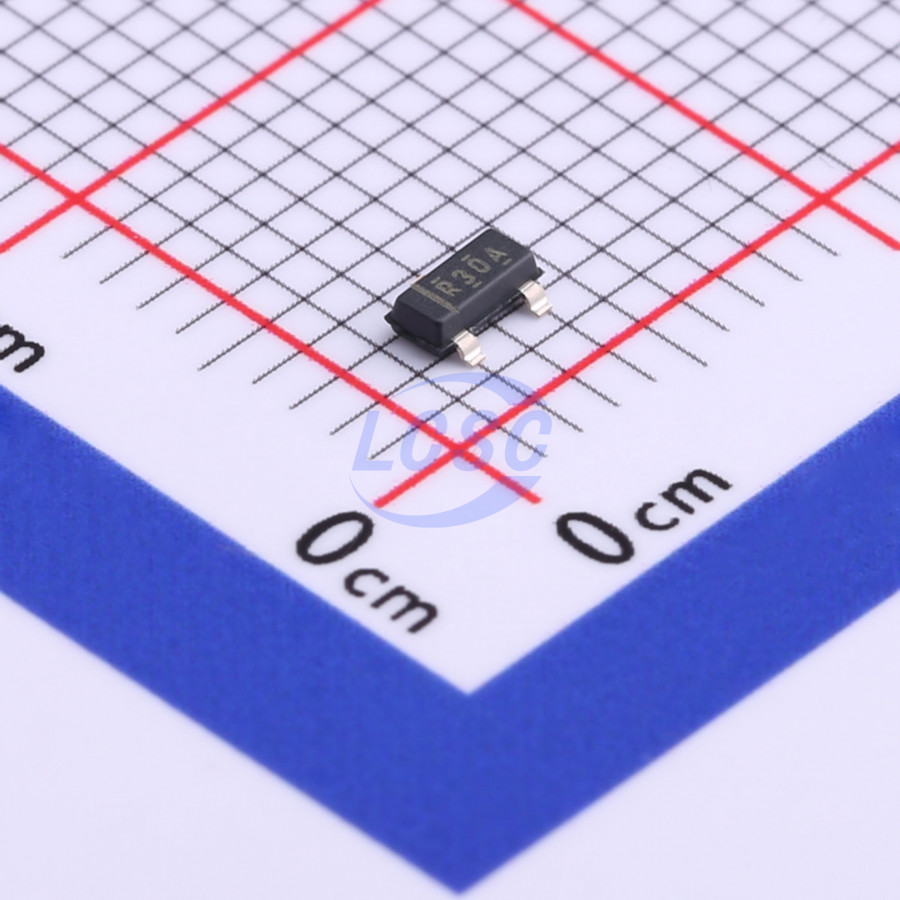

REF3012AIDBZR
1.25V ±0.2% 1.8V~5.5V 25mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
CMOS Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3012AIDBZR
- Store part #
- C34674
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,898 in stock
#C34674
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.32 | ₹61.32 |
| 10+ | ₹48.49 | ₹484.90 |
| 30+ | ₹42.19 | ₹1,265.70 |
| 100+ | ₹36.53 | ₹3,653.00 |
| 500+ | ₹35.01 | ₹17,505.00 |
| 1,000+ | ₹33.92 | ₹33,920.00 |
1 × ₹61.32
₹61.32
excl. GST
₹72.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3012AIDBZR
₹61.32 for 1 + GST
Specifications
- Output Voltage
- 1.25V
- Quiescent Current
- 50uA
- Tolerance
- ±0.2%
- Voltage - Supply
- 1.8V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 14uVp-p
- Output Current
- 25mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 42uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The REF30xx is a precision, low power, low voltage dropout voltage reference family available in a tiny SOT23-3. The REF30xx small size and low power consumption (50µA max) make it ideal for portable and battery-powered applications. The REF30xx does not require a load capacitor. Unloaded, the REF30xx can be operated with supplies within 1mV of output voltage. All models are specified for the wide temperature range, -40°C to +125°C.
Applications
- PORTABLE, BATTERY-POWERED EQUIPMENT
- DATA ACQUISITION SYSTEMS
- MEDICAL EQUIPMENT
- HAND-HELD TEST EQUIPMENT
Key features
- MicroSIZE PACKAGE: SOT23-3
- LOW DROPOUT: 1mV
- HIGH OUTPUT CURRENT: 25mA
- HIGH ACCURACY: 0.2%
- LOW l₀: 50µA max
- EXCELLENT SPECIFIED DRIFT PERFORMANCE: 50ppm/°C (max) from 0°C to +70°C; 75ppm/°C (max) from -40°C to ±125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3012AIDBZT#C840109TI · SOT-23-3 | TI | SOT-23-3 | 1,307 | ₹76.32 · 1,307 in stock | View |
 | REF3112AQDBZRQ1#C122476TI · SOT-23 | TI | SOT-23 | 944 | ₹425.00 · 944 in stock | View |
 | REF3112AIDBZT#C2156827TI · SOT-23-3 | TI | SOT-23-3 | 246 | ₹363.49 · 246 in stock | View |
 | REF3112AIDBZR#C74223TI · SOT-23 | TI | SOT-23 | 40,000 | ₹91.58 · 40,000 in stock | View |
 | REF3312AIDBZR#C183104TI · SOT-23 | TI | SOT-23 | 18,324 | ₹116.65 · 18,324 in stock | View |
