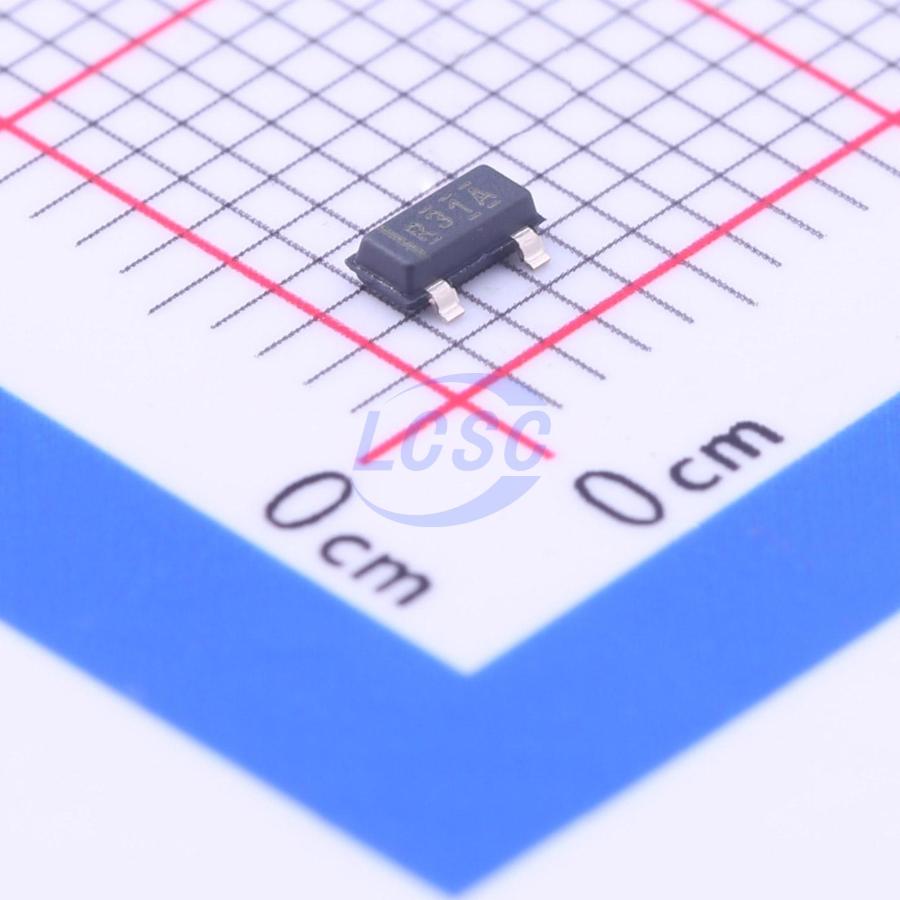

REF3112AIDBZR
1.25V ±0.2% 1.8V~5.5V 10mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Series Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3112AIDBZR
- Store part #
- C74223
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40,000 in stock
#C74223
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.58 | ₹91.58 |
| 10+ | ₹73.74 | ₹737.40 |
| 30+ | ₹64.60 | ₹1,938.00 |
| 100+ | ₹55.69 | ₹5,569.00 |
| 500+ | ₹46.12 | ₹23,060.00 |
| 1,000+ | ₹43.29 | ₹43,290.00 |
1 × ₹91.58
₹91.58
excl. GST
₹108.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3112AIDBZR
₹91.58 for 1 + GST
Specifications
- Output Voltage
- 1.25V
- Quiescent Current
- 135uA
- Tolerance
- ±0.2%
- Voltage - Supply
- 1.8V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 17uVp-p
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 24uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The REF31xx is a family of precision, low power, low dropout, series voltage references available in the tiny 3-pin SOT-23 package. The REF31xx's small size and low power consumption (100 µA typical) make it ideal for portable and battery-powered applications. The REF31xx does not require a load capacitor, but is stable with any capacitive load and can sink or source up to 10 mA of output current. Unloaded, the REF31xx can operate on supplies down to 5 mV above the output voltage. All models are specified for the wide temperature range of -40°C to +125°C.
Applications
- Portable, Battery-Powered Equipment
- Data Acquisition Systems
- Medical Equipment
- Hand-Held Test Equipment
Key features
- MicroSize Package: SOT23-3
- Low Dropout: 5 mV
- High Output Current: ±10 mA
- High Accuracy: 0.2% Maximum
- Low IQ: 115 µA Maximum
- Excellent Specified Drift Performance: 15 ppm/°C (Maximum) from 0°C to +70°C; 20 ppm/°C (Maximum) from -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3112AQDBZRQ1#C122476TI · SOT-23 | TI | SOT-23 | 944 | ₹425.00 · 944 in stock | View |
 | REF3112AIDBZT#C2156827TI · SOT-23-3 | TI | SOT-23-3 | 246 | ₹363.49 · 246 in stock | View |
 | REF3012AIDBZR#C34674TI · SOT-23 | TI | SOT-23 | 18,898 | ₹61.32 · 18,898 in stock | View |
 | REF3012AIDBZT#C840109TI · SOT-23-3 | TI | SOT-23-3 | 1,307 | ₹76.32 · 1,307 in stock | View |
 | REF3312AIDBZR#C183104TI · SOT-23 | TI | SOT-23 | 18,324 | ₹116.65 · 18,324 in stock | View |
