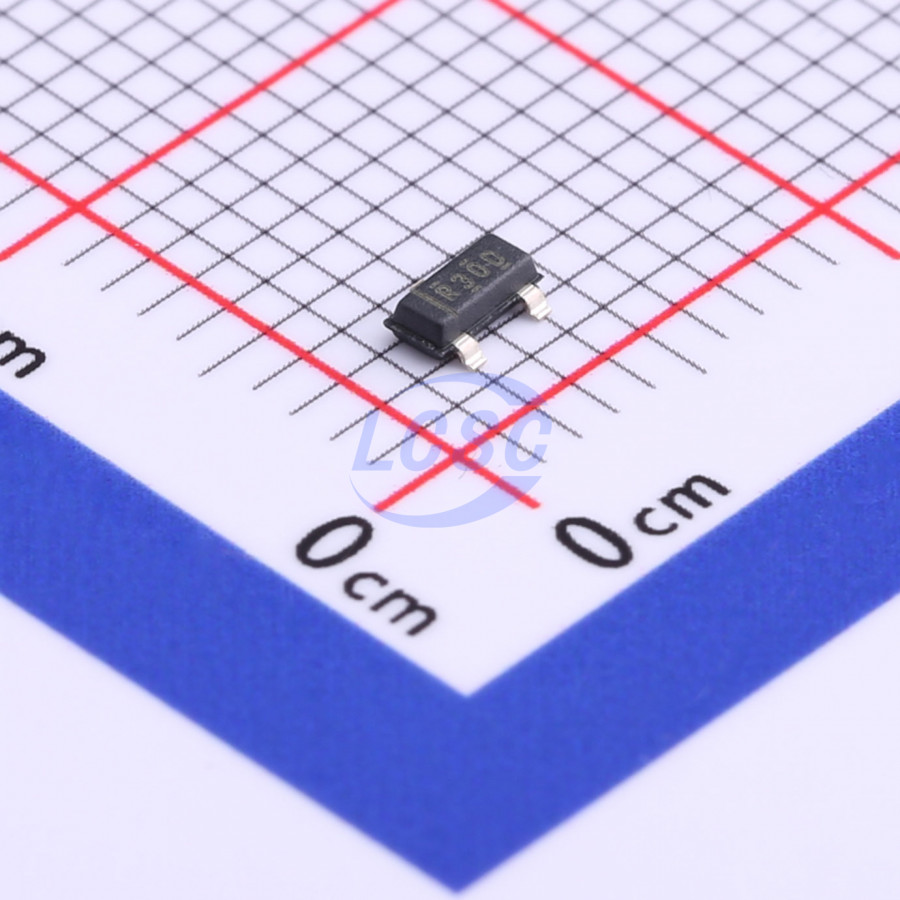

REF3033AIDBZR
3.3V ±0.2% 3.35V~5.5V 25mA Fixed SOT-23 Voltage Reference RoHS
PopularSOT-23ROHS3 CompliantActive
CMOS Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3033AIDBZR
- Store part #
- C36658
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,628 in stock
#C36658
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.47 | ₹60.47 |
| 10+ | ₹46.56 | ₹465.60 |
| 30+ | ₹39.81 | ₹1,194.30 |
| 100+ | ₹33.93 | ₹3,393.00 |
| 500+ | ₹32.20 | ₹16,100.00 |
| 1,000+ | ₹31.33 | ₹31,330.00 |
1 × ₹60.47
₹60.47
excl. GST
₹71.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3033AIDBZR
₹60.47 for 1 + GST
Specifications
- Quiescent Current
- 50uA
- Output Voltage
- 3.3V
- Tolerance
- ±0.2%
- Voltage - Supply
- 3.35V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 36uVp-p
- Output Current
- 25mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 105uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The REF30xx is a precision, low power, low voltage dropout voltage reference family available in a tiny SOT23-3. The REF30xx small size and low power consumption (50µA max) make it ideal for portable and battery-powered applications. The REF30xx does not require a load capacitor. Unloaded, the REF30xx can be operated with supplies within 1mV of output voltage. All models are specified for the wide temperature range, -40°C to +125°C.
Applications
- PORTABLE, BATTERY-POWERED EQUIPMENT
- DATA ACQUISITION SYSTEMS
- MEDICAL EQUIPMENT
- HAND-HELD TEST EQUIPMENT
Key features
- MicroSIZE PACKAGE: SOT23-3
- LOW DROPOUT: 1mV
- HIGH OUTPUT CURRENT: 25mA
- HIGH ACCURACY: 0.2%
- LOW l₀: 50µA max
- EXCELLENT SPECIFIED DRIFT PERFORMANCE: 50ppm/°C (max) from 0°C to +70°C; 75ppm/°C (max) from -40°C to ±125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3033AIDBZT#C2872391TI · SOT-23-3 | TI | SOT-23-3 | 4,584 | ₹80.44 · 4,584 in stock | View |
 | ISL21010CFH333Z-TK#C5741705RENESAS · SOT-23-3 | RENESAS | SOT-23-3 | 89 | ₹209.48 · 89 in stock | View |
 | LKP4233ST#C54565029LKWIC · SOT-23-3 | LKWIC | SOT-23-3 | 2,880 | ₹39.27 · 2,880 in stock | View |
 | REF3030AIDBZR#C38423TI · SOT-23 | TI | SOT-23 | 23,954 | ₹107.47 · 23,954 in stock | View |
 | REF3133AIDBZR#C2157773TI · SOT-23-3 | TI | SOT-23-3 | 9,031 | ₹167.76 · 9,031 in stock | View |
