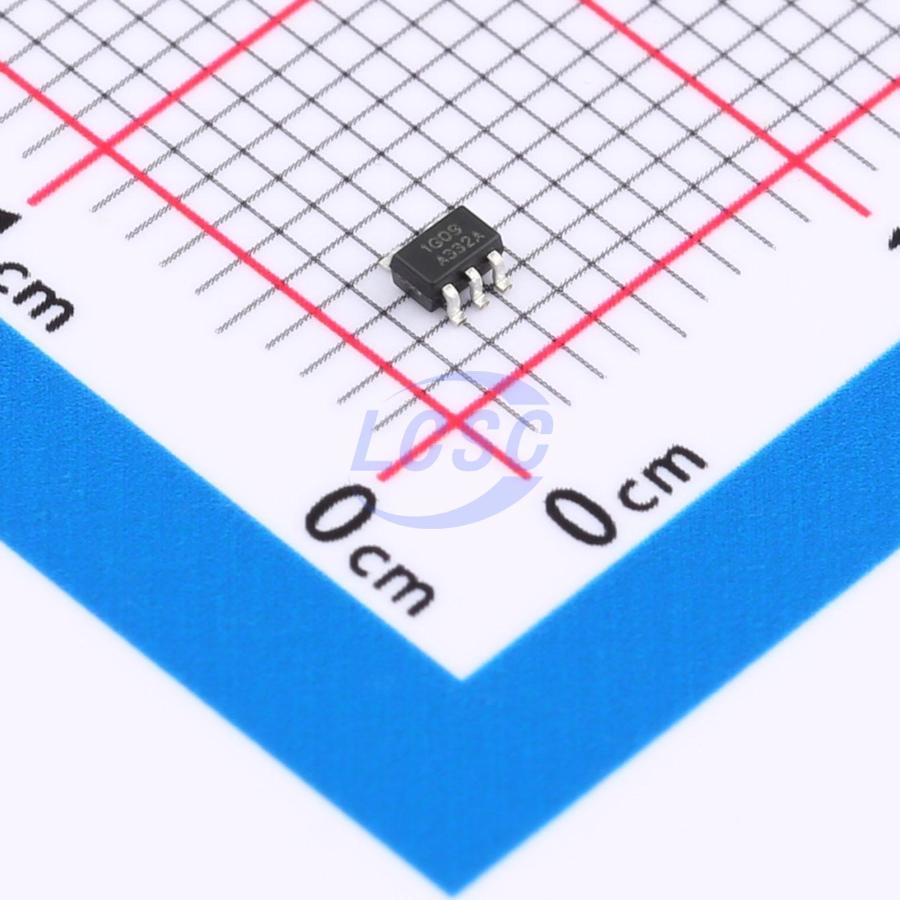

Single 2-Input AND Gate with Open-Drain Output
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1G09XC5
- Store part #
- C42459503
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,440 in stock
#C42459503
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.34 | ₹93.40 |
| 100+ | ₹7.25 | ₹725.00 |
| 300+ | ₹6.20 | ₹1,860.00 |
| 3,000+ | ₹5.42 | ₹16,260.00 |
| 6,000+ | ₹4.80 | ₹28,800.00 |
| 9,000+ | ₹4.48 | ₹40,320.00 |
10 × ₹9.34
₹93.40
excl. GST
₹110.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1G09XC5
₹93.40 for 10 + GST
Specifications
- output type
- Open-drain
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 3.7ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.07 g
Overview
The RS1G09 is a single 2-input AND gate with opendrain output. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments. The RS1G09 is available in Green SOT23-5 and SC70- 5 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Active Noise Elimination
- Bar Code Scanner
- Blood Pressure Monitor
- CPAP Machine
- Fingerprint Identification
- Network Attached Storage (NAS)
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to +125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24mA at Vcc = 3.0V
- Micro Size Packages: SOT23-5, SC70-5
